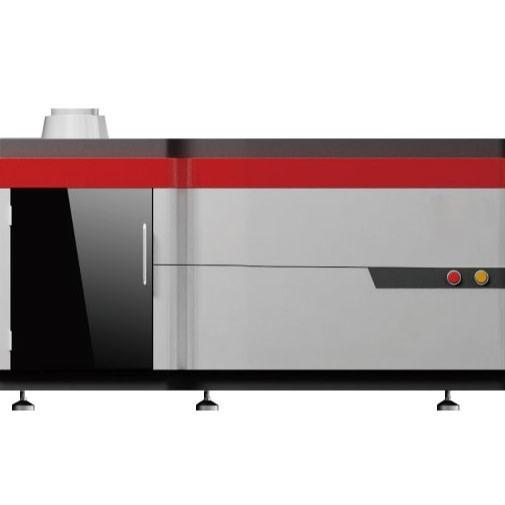

Inductively Coupled Plasma-Optical Emission Spectrometer ICP-OES

Product overview

ICP-8810 is a full-spectrum direct-reading inductively coupled plasma emission spectrometer for the determination of trace and trace elements in different substances (dissolved in nitric acid, hydrochloric acid, hydrofluoric acid, etc.). It is widely used in environmental protection, petroleum products, rare earth semiconductor, geology, metallurgy, chemical industry, clinical medicine, food, biological samples, criminal science, agricultural research and other fields.

ICP-OES Performance characteristics

Stable performance

The full solid-state RF power supply has many advantages, such as small volume, high efficiency, stable output power and various protection functions. The load adopts full-automatic matching technology, which has fast matching speed, improves the use efficiency of the power supply and the stability of the instrument, and makes the whole ignition process simple and convenient.

Injection automation

Four channel automatic design is adopted, and the speed can be set to adjust the flow according to the test requirements. The carrier gas, plasma gas and auxiliary gas are controlled by advanced mass flow controller. At the same time, imported high salt atomizer and imported hydrogen and fluorine resistant atomizer can be equipped to meet various test needs of customers.

Accurate analysis

The medium step grating prism cross dispersion mode is adopted without moving optical elements; Ultra low stray light design with unique optical design, nitrogen distributed blowing, imported optical components, intelligent and accurate automatic wavelength calibration algorithm.

Quick test

American thermoelectric CID detector, with continuous coverage in the range of 160-1000 nm, reads out the intensity integral values of all analytical spectral lines in one exposure to accelerate the analysis speed.

Optical Emission Spectrometer ​Technical Parameter

Output power: 800 -1500W

Total argon consumption:≤14L/min

Wavelength range:160nm - 1000 nm

Resolution: < 0.0065nm@200nm

Instrument technical index

Method of observation: vertical observation

Liquid content:0.01ppm~thousands of ppm.

Solid content:0.001%~70%

Repeatability: RSD < 1%

Stability: RSD <1.5%(within 2 hours)

Element detection limit (μg/L): most elements 1ppb~10ppb

Application area

Silicon industry, metallurgical industry, water quality analysis, geology, ore analysis, petrochemical, medical, sanitary, agricultural environmental protection, commodity, food quality inspection.
