Spectroscopy System Arc / Spark-OES Optical Emission Spectrometer
Spectroscopy System Arc / Spark-OES Optical Emission Spectrometer
Specifications
Brand Name :
Quenda
Model Number :
Qu6
Certification :
CE,ISO
Place of Origin :
QINGDAO,CHINA
MOQ :
1set
Price :
USD7000-15000
Payment Terms :
T/T
Supply Ability :
200set per month
Delivery Time :
7-10days
Packaging Details :
Carton
Wavelength Range :
165~589nm (Extendable)
Focal length :
400mm
Grating line :
2400m1/mm
Average resolution ratio :
10pm/pixel
Base :
Fe, Cu, Al, Ni, Co, Mg, Ti, Zn, Pb, Sn, Ag, Mn, Cr etc
Dimension :
860mm(L)*680mm(W)*438mm(H)
Description

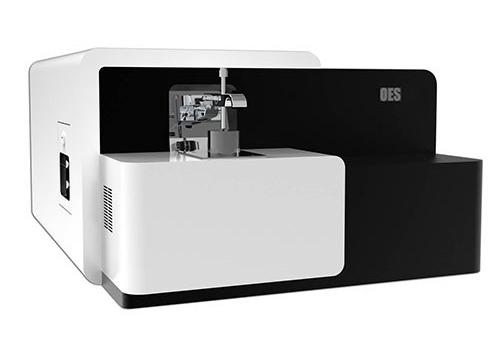

Spectroscopy System , Arc/Spark-OES Optical Emission Spectrometer

OES

QU6 Optical Emission Spectrometer bring in the advanced technology from the USA. It is the 4th generation Arc/Spark-OES with high performance lowing operating cost for metal analysis and this is the latest research and development of detection equipment. The overall optical design has been enhanced, and with improvements of CMOS technology used to further improve the performance of the QU6 while retaining the major benefit of earlier units. The CMOS spectrometer is not only contain the full spectrum characteristics of CCD spectrometer but also the extremely low detection limit for non-metallic elements such as C, S, P, B, As, N etc. The operation is simple and easy to learn. The test result is stable and accuracy. It is a good choice of all common metals for incoming and outgoing product quality control.

Optical Emission Spectrometer ​Technical Parameter

Item Index
Optical system
Optical structure The Paschen Runge construction full vacuum type optics system
Room temperature 35℃±0.5℃
Wavelength range 165~589nm (Extendable)
Focal length 400mm
Grating line 2400m1/mm
First order spectral line dispersion rare 1.2nm/mm
Detector Multi block high performance linear CMOS array
Average resolution ratio 10pm/pixel
Excitation table
Gas Rushing argon (99.999%)
Argon flow rate

When excited: 3-5L/min

Standby time: no need for standby traffic
Electrode Tungsten electrode technology
Purge Automatic purge function
Make up Thermal deformation self-compensation design
Analyze the gap Sample stage:3.4 mm
Excitation light
Type HEPS
Frequency 100-1000HZ
Discharge current 1-400A
Special technology Optimization of discharge parameters design
Pre -combustion High-energy pre-combustion technology
Processor High end ARM, high-speed data synchronization acquisition and processing
Data collection system
Interface Ethernet data transmission based on DM9000A
Power 220VAC 50/60Hz(Customized)
Others
Base Fe, Cu, Al, Ni, Co, Mg, Ti, Zn, Pb, Sn, Ag, Mn, Cr etc
Power consumption Maximum:750W standby:100W
Working temperature 10-35℃(temperature ≥5°C)
Working humidity 20-85%
Dimension 860mm(L)*680mm(W)*438mm(H)
Weight About 100Kg

Optional items

Optional item Qty Note
High purity argon gas (pure ≧ 99.999%) 1 bottle Should prepare by customer. If can’t get should use argon purifier to get 99.999% argon gas.
Small air conditioning 1 set Essential, customer should prepare by themselves.
High precision magnetic saturation voltage stabilizer (1KVA) 1 set Need for voltage instability, if the customer uses intermediate frequency furnace, then need 3KVA Voltage Stabilizer
Argon purifier 1 set When argon gas is not as pure as 99.999%.
Samples grinder (ferrous metals) or Mini lathe (non-ferrous metals) 1 set Essential
Type samples pieces Essential for foundry

Authentication

Spectroscopy System Arc / Spark-OES Optical Emission Spectrometer

Exhibition

Spectroscopy System Arc / Spark-OES Optical Emission Spectrometer

Instrument commissioning and training

Spectroscopy System Arc / Spark-OES Optical Emission Spectrometer

Customer visit

Spectroscopy System Arc / Spark-OES Optical Emission Spectrometer
