Specifications
Brand Name :
Masing Motor
Model Number :
MS-12PN20
Certification :
ROHS,CE,ISO,16949
Place of Origin :
China
MOQ :
1000
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100000piece/per month
Delivery Time :
3-5 work weeks
Packaging Details :
Carton Box
Keywords :
Micro 12v Dc Geared Brush Motor
Shaft Diameter :
φ3mm or D-cut
Motor Type :
N10 N20 N30 DC Motor
Rated Toque :
0.05kgf.cm-2kgf.cm
Brush type :
Metal brush/Carton Brush
Gearbox diameter :
φ12mm gearbox
Gears :
Metal ,Powder metallurgy,Plastic Gears
Rated voltage :
DC1.2V-12V
Product name :
n20 Dc Planetary Gear Motor
Direction of motor :
CW&CCW
Description
12mm Planetary DC Gear Motor N20 Micro 12V DC Geared Brush Motor
Product Overview

This 12mm planetary DC gear motor is a compact, high-performance solution designed for medical equipment and various precision applications. Featuring a miniature design with robust planetary gearbox, it delivers reliable torque and speed control in space-constrained environments.

Key Features
  • High efficiency (70%) for optimal performance
  • Compact size: φ12mm × 15mm
  • Wide voltage range: DC 1.5V-24V
  • Customizable speed: 10-300 RPM
  • Rated torque: 0.05-2.0 kgf.cm
  • Low noise operation: ≤55 dB
  • Totally enclosed construction for protection
  • Bidirectional operation (CW & CCW)
  • Multiple shaft types available
Technical Specifications
Parameter Specification
Rated Voltage DC 1.2V-24V
Rated Speed 10-300 RPM
Rated Torque 0.05-2.0 kgf.cm
Continuous Current 20-300 mA
Efficiency 70%
Motor Diameter φ12mm
Weight 20g
Noise Level ≤55 dB
Working Temperature -40°C to +60°C

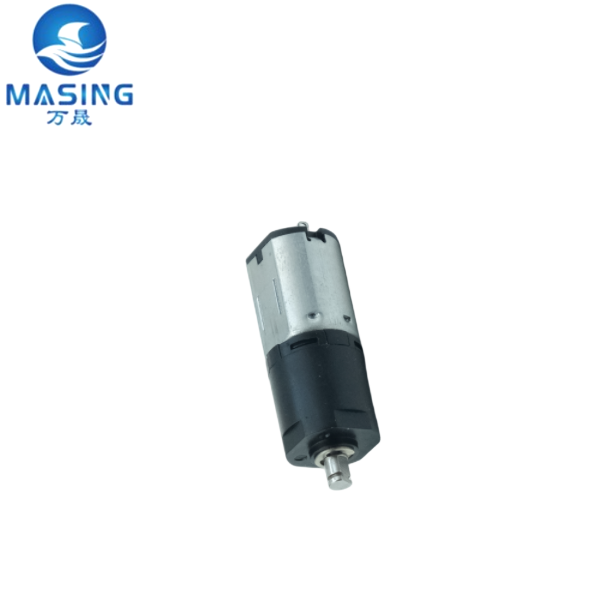

Product Images
12mm Planetary Dc Gear Motor N20 Micro 12v Dc Geared Brush Motor For Medical Equipment 12mm Planetary Dc Gear Motor N20 Micro 12v Dc Geared Brush Motor For Medical Equipment 12mm Planetary Dc Gear Motor N20 Micro 12v Dc Geared Brush Motor For Medical Equipment
Applications

Door locks, robots, smart home systems, electric bicycle locks, cosmetic instruments, medical equipment, driverless systems, artificial intelligence, intelligent transportation, health care, smart city, automotive supplies, security monitoring, 5G communication.

12mm Planetary Dc Gear Motor N20 Micro 12v Dc Geared Brush Motor For Medical Equipment 12mm Planetary Dc Gear Motor N20 Micro 12v Dc Geared Brush Motor For Medical Equipment
Packaging & Delivery

Packaging: Strong carton (400pcs/box) or customized packaging available

Port: Shenzhen/Guangzhou/Shanghai

Supply Ability: 100,000 pieces per month

Lead Time
Quantity (pieces) 1 - 100 101 - 1000 > 1000
Lead Time (days) 10 15 To be negotiated
Samples & Certifications

Sample Price: $15/piece (maximum order quantity: 1 piece)

12mm Planetary Dc Gear Motor N20 Micro 12v Dc Geared Brush Motor For Medical Equipment
Factory & Product Classification
12mm Planetary Dc Gear Motor N20 Micro 12v Dc Geared Brush Motor For Medical Equipment 12mm Planetary Dc Gear Motor N20 Micro 12v Dc Geared Brush Motor For Medical Equipment 12mm Planetary Dc Gear Motor N20 Micro 12v Dc Geared Brush Motor For Medical Equipment 12mm Planetary Dc Gear Motor N20 Micro 12v Dc Geared Brush Motor For Medical Equipment
Frequently Asked Questions
Q1. How to select a suitable motor?
If you have motor pictures, drawings, or detailed specifications like voltage, speed, torque, motor size, working mode, required lifetime, and noise level, please contact us. We will recommend suitable motors based on your requirements.
Q2. Do you have a customized service for your standard motors?
Yes, we can customize voltage, speed, torque, and shaft size/shape. We can also add wires/cables, connectors, capacitors, or EMC components as needed.
Q3. Do you have an individual design service for motors?
Yes, we provide individual motor design services. This may require mold charges and design fees.
Q4. Can I have samples for testing first?
Yes, after confirming the required motor specifications, we will provide a proforma invoice for samples. Once payment is received, we will proceed with sample production.
Q5. How do you ensure motor quality?
We have comprehensive inspection procedures: incoming materials are checked against signed samples and drawings; production includes tour inspections and final inspection before shipping to ensure product quality.
