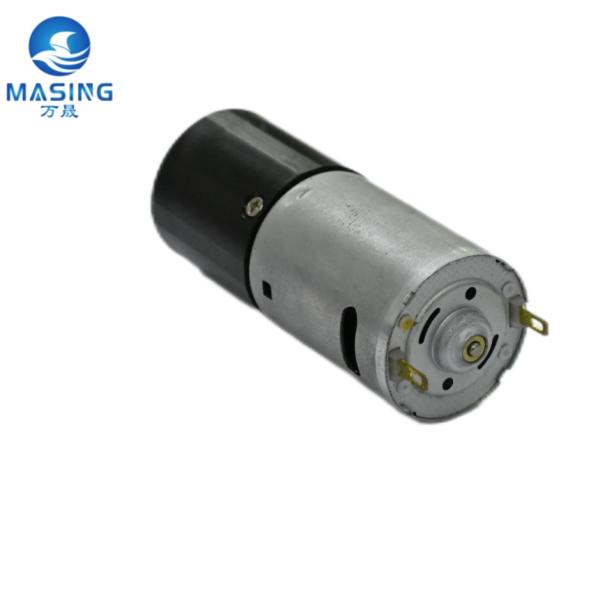

RS-550/555 With 36mm Plastic Gearbox 12v Dc Planetary Gear Motor For Vacuum Cleaner Robot
RS-550/555 With 36mm Plastic Gearbox 12v Dc Planetary Gear Motor For Vacuum Cleaner Robot
RS-550/555 With 36mm Plastic Gearbox 12v Dc Planetary Gear Motor For Vacuum Cleaner Robot
RS-550/555 With 36mm Plastic Gearbox 12v Dc Planetary Gear Motor For Vacuum Cleaner Robot
RS-550/555 With 36mm Plastic Gearbox 12v Dc Planetary Gear Motor For Vacuum Cleaner Robot
RS-550/555 With 36mm Plastic Gearbox 12v Dc Planetary Gear Motor For Vacuum Cleaner Robot
Specifications
Brand Name :
Masing Motor
Model Number :
MS-PG36-555
Certification :
16949,RohS,CE,ISO
Place of Origin :
China
MOQ :
1000
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1000000piece/per month
Delivery Time :
3-5 work weeks
Packaging Details :
Carton box
Product Name :
36mm Brushed DC Planetary Gear Motor
Shaft diameter :
φ8mm or Customized
Motor size :
φ36mm*L50mm,φ36mm*L57mm
Gearbox efficiency :
65%-90%
Shaft Type :
Round ,D-cut ,Flat or Customized
Direction of motor :
CW&CCW available
Rated Power :
1w-100w
Rated Torque :
0.1Nm-10Nm
Gearbox Diameter :
φ 36mm planetary gearbox
Rated voltage :
DC 6V-30V
Description
RS-550/555 With 36mm Plastic Gearbox 12V DC Planetary Gear Motor For Vacuum Cleaner Robot
Product Overview

High-performance DC planetary gear motor designed for vacuum cleaner robots and various automation applications. Features customizable voltage, speed, and torque specifications with reliable brushed motor technology.

Technical Specifications
  • Rated Voltage: 6V-30V DC Brushed Motor
  • Output Speed: 2RPM - 1000RPM
  • Rated Torque: 0.1NM - 10NM
  • Motor Type: Brushed Motor
  • Motor Models: RS-545/RS-540/RS-550/RS-555
  • Motor Size: Diameter 35.7mm, Length: 40mm/50mm/57mm
  • Direction: CW/CCW Available
  • Motor Power: 1W-100W High Power
  • Gearbox Diameter: φ36mm
  • Gearbox Type: Planetary Gear Box
  • Gears Material: Plastic, Copper, Steel, Powder Metallurgy or Customized
  • Working Temperature: -40°C to +60°C
  • Life Time: 500H - 3000H
  • Certification: 16949, CE, Rohs, ISO
  • Efficiency: 90% to 65%
  • Shaft Diameter: φ8mm or φ10mm or Customized
  • Shaft Type: Round, Flat, D-cut, with Hole, Threaded Shaft, Threaded Hole or Customized
  • Noise Level: ≤55DB
  • Weight: 400g/450g
Product Images
RS-550/555 With 36mm Plastic Gearbox 12v Dc Planetary Gear Motor For Vacuum Cleaner Robot RS-550/555 With 36mm Plastic Gearbox 12v Dc Planetary Gear Motor For Vacuum Cleaner Robot
Performance Data
RS-550/555 With 36mm Plastic Gearbox 12v Dc Planetary Gear Motor For Vacuum Cleaner Robot RS-550/555 With 36mm Plastic Gearbox 12v Dc Planetary Gear Motor For Vacuum Cleaner Robot
Note: The left side of redline area can continuous work
Gear grade 1 2 3 4
Gear ratio of the reducer(K) 3.7,5.2 14,19,27 54,71,100,139 189,264,369,515,721
Gearbox Length(mm) 27.5 35.5 43.5 51.5
Rated Torque(kg.cm) 3 6 9 17
Stall Torque(kg.cm) 6 10 20 35
Efficiency(%) 90% 81% 73% 65%
Applications
  • Robotics Automation
  • Smart Home & Electric Curtain
  • Vacuum Cleaner Robots
  • Office Supplies & Power Tools
  • Medical Equipment & Precision Instruments
  • Automotive Electronics
  • Manufacturing Plant Robots
  • Cosmetic Instruments
Packaging & Delivery
  • Packaging: Strong Carton 100pcs/box, or as required
  • Port: Shenzhen/Guangzhou/Shanghai
  • Package Size: 37×27×24cm
  • Gross Weight: 400g/450g
  • Supply Ability: 100,000 Pieces per Month
Quantity (pieces) 1 - 100 101 - 1000 > 5000
Lead Time (days) 10 15 To be negotiated
Samples & Customization
  • Maximum Sample Quantity: 1 piece
  • Sample Price: $20/piece or Negotiable
  • Customization Support: OEM, ODM, OBM
  • Minimum Order Quantity: 1000 Pieces
Certifications & Quality
RS-550/555 With 36mm Plastic Gearbox 12v Dc Planetary Gear Motor For Vacuum Cleaner Robot

Every product must pass quality inspection before shipment. Certifications include IATF 16949, CE, Rohs, and ISO standards.

Frequently Asked Questions
Q1: Why should I choose your products?
A1: Our products are high quality and low price.
Q2: The logo and the color can be customized?
A2: Yes, we welcome you to sample custom.
Q3: Any other good service your company can provide?
A3: Yes, we can provide good after-sale and fast delivery.
Q4: What if I don't know the above data?
A4: Please contact our salesman to handle, we'll answer your questions patiently.
Q5: What kind of data do I need to provide if I want to order?
A5: Please kindly tell us your voltage, speed, torque and overall dimension.
