36 Planetary Gearbox Motor DC Reduction Planetary Motor 36MM Metal Gearbox DC Gear Motor for Coffee Machine
36 Planetary Gearbox Motor DC Reduction Planetary Motor 36MM Metal Gearbox DC Gear Motor for Coffee Machine
36 Planetary Gearbox Motor DC Reduction Planetary Motor 36MM Metal Gearbox DC Gear Motor for Coffee Machine
36 Planetary Gearbox Motor DC Reduction Planetary Motor 36MM Metal Gearbox DC Gear Motor for Coffee Machine
36 Planetary Gearbox Motor DC Reduction Planetary Motor 36MM Metal Gearbox DC Gear Motor for Coffee Machine
36 Planetary Gearbox Motor DC Reduction Planetary Motor 36MM Metal Gearbox DC Gear Motor for Coffee Machine
36 Planetary Gearbox Motor DC Reduction Planetary Motor 36MM Metal Gearbox DC Gear Motor for Coffee Machine
36 Planetary Gearbox Motor DC Reduction Planetary Motor 36MM Metal Gearbox DC Gear Motor for Coffee Machine
Specifications
Brand Name :
Masing Motor
Model Number :
MS-PG36-555
Certification :
16949,RohS,CE,ISO
Place of Origin :
China
MOQ :
1000
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1000000piece/per month
Delivery Time :
3-5 work weeks
Packaging Details :
Carton box
Product Name :
DC Reduction Planetary Motor 36MM
Shaft diameter :
φ8mm or Customized
Motor size :
φ36mm*L50mm,φ36mm*L57mm
Gearbox efficiency :
65%-90%
Shaft Type :
Round ,D-cut ,Flat or Customized
Direction of motor :
CW&CCW available
Rated Power :
1w-100w
Rated Torque :
0.1Nm-10Nm
Gearbox Diameter :
φ 36mm planetary gearbox
Rated voltage :
DC 6V-30V
Description

DC Reduction Planetary Motor 36MM Title:

36 Planetary Gearbox Motor DC Reduction Planetary Motor 36MM Metal Gearbox DC Gear Motor for Coffee Machine

DC Reduction Planetary Motor 36MM Description:

  • Rated Voltage:6v-30v DC Brushed Motor

  • Please refer to the rated voltage used by our motor,the voltage exceeding the range of use of our voltagemay cause the machine to burn.

  • Rated Speed :2rpm -1000rpm

  • Rated Torque:0.1NM-10NM

  • Motor Type:Brushless motor or Brushed motor

  • Motor Model:Rs-545/rs-540/rs-550/rs-555

  • Motor size :Diameter 35.7mm ,Lenght :40mm ,Diameter 35.7mm ,Lenght :50mm,Diameter 35.7mm ,Lenght :57mm

  • Direction of motor :CW/CCW available

  • Motor Power:1W-100W High Power

  • Gearbox diameter :φ36mm

  • Gearbox type :Metal Planetary gear box and Plastic gearbox

  • Gears Material:Plastic ,Copper ,steel,Powder metallurgy or customized

  • Working temperature:-40~+60°c

  • Life time:500H-3000H

  • Certification:16949,CE,Rohs,ISO

  • High Efficiency: The motor boasts an efficiency of 90% to 65%,

  • Applications :Robotics Automation, Smart Home, Electric Curtain,office supplies, power tools, medical equipment,

    precision instruments, automotive electronics etc

  • We can provide samples for your test.

  • Every product must pass quality inspection before shipment

Key Attributes:

Speed(RPM)
2rpm-1000rpm or customized
Voltage
DC6.0-30V
Efficiency
90%-65%
Place of Origin
Guangdong, China
Brand Name
Masing Motor
Model Number
MS-PG36-550
Use

office supplies, power tools, medical equipment,

precision instruments, automotive electronics,

Robotics Automation, Smart Home, Electric Curtain, Medical Imaging Equipment,Manufacturing Plant

Shaft diameter
φ8mm or φ10mm or customized
Torque
0.1NM-10NM
Construction
Permanent Magnet
Commutation
Brushed
Shaft Type
Round,Flat,D-cut ,with a hole,Threaded shaft,Threaded holeor or customized
Direction of motor
CW/CCW available
Feature
High Efficiency 90%-65%
Keywords
12v dc planetary gear motor
Diameter Size
Brush Motor φ36mm*L40mm,φ36mm*L50mm,φ36mm*L57mm,
Weight
400g/450g
Noise
Low Noise Level ,≤55DB
MOQ
1000Pcs
Customized support
OEM, ODM, OBM
Dimension box
φ36mm
Life Expectancy
500H-3000H

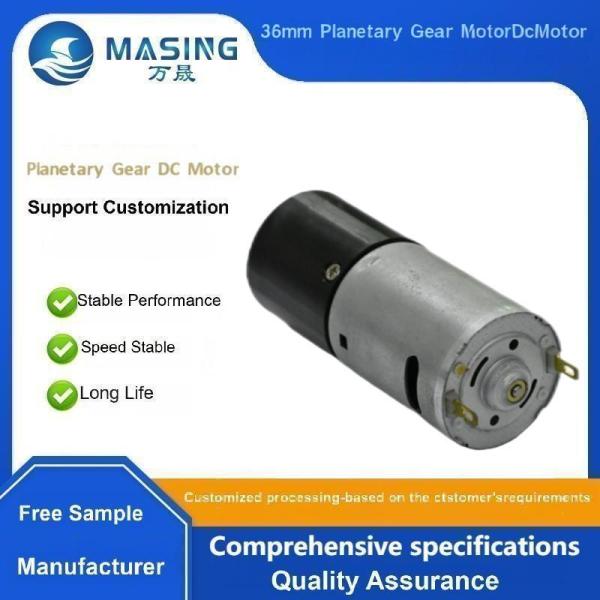

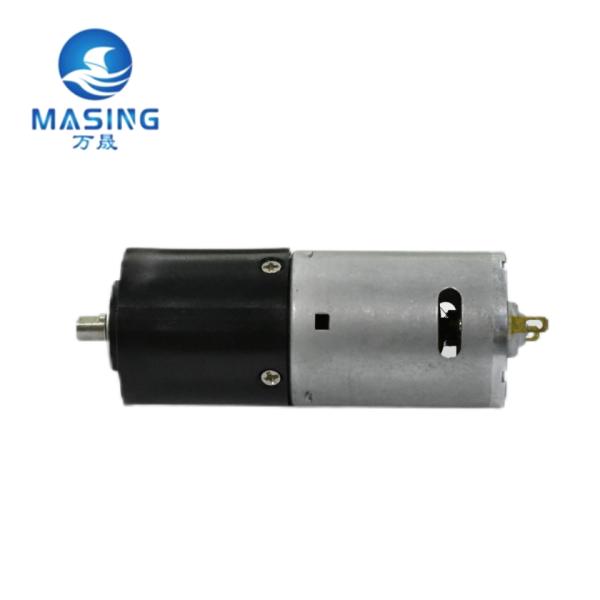

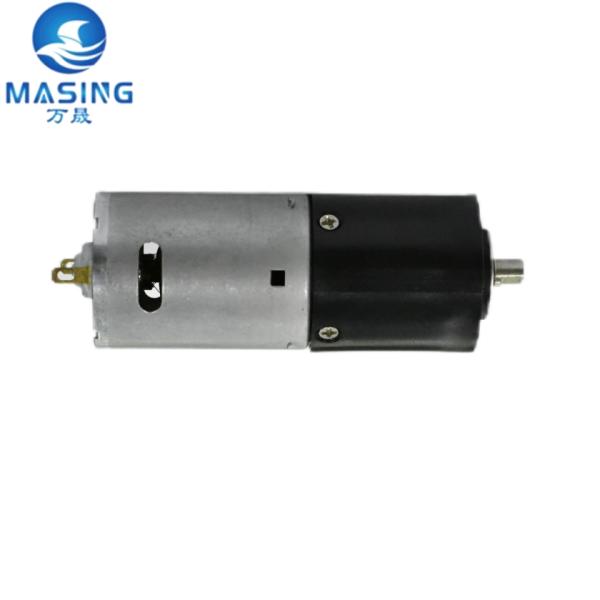

DC Reduction Planetary Motor 36MM Product Photo:

36 Planetary Gearbox Motor DC Reduction Planetary Motor 36MM Metal Gearbox DC Gear Motor for Coffee Machine36 Planetary Gearbox Motor DC Reduction Planetary Motor 36MM Metal Gearbox DC Gear Motor for Coffee Machine

DC Reduction Planetary Motor 36MM Product Spec:

RS-550/555 Brushed Motor DC Planetary DC GEAR MOTOR Typical Applications

Robotics Automation, Smart Home, Electric Curtain,Robot Vacuum Cleaner,Cosmetic instrument, Smart Home, Medical Imaging Equipment,Manufacturing Plant Robots,,Car flip screen,Intelligent Trash Can ,Power Tools, Home Application, Personal Care,

Voltage,rated torque,speed,curent,power and shaft size can be customizedasrequrement.

NOTE:The left side of redline area can continous work

36 Planetary Gearbox Motor DC Reduction Planetary Motor 36MM Metal Gearbox DC Gear Motor for Coffee Machine

36 Planetary Gearbox Motor DC Reduction Planetary Motor 36MM Metal Gearbox DC Gear Motor for Coffee Machine

Gear grade 1 2 3 4
Gear ratio of the reducer(K) 3.7,5.2 14,19,27 54,71,100,139 189,264,369,515,721
Gearbox Length(mm) 27.5 35.5 43.5 51.5
Rated Torque(kg.cm) 3 6 9 17
Stall Torque(kg.cm) 6 10 20 35
Efficiency(%) 90% 81% 73% 65%
Model number Rated
volt.		 No load Load Stall
Speed Current Speed Current Torque Powerr Current Torque
rpm mA(max) rpm mA(max) Kgf.cm w mA(min) Kgf.cm
MS-36PGM5550126000-
5.2K		 12V 1153 650 960 3000 1.2 11.8 10620 6.3
MS-36PGM5550128000-
4K		 12V 571 900 465 3500 4 19.1 11550 19
MS-36PGM5550126000-
27K		 12V 223 400 175 1600 4.2 7.5 5350 20
MS-36PGM5550126000-
51K		 12V 117 680 85 2680 13 11.3 8350 60
MS-36PGM5550126000-
71K		 12V 84 500 70 2400 14 10.1 8380 71
MS-36PGM5550126000-
99.5K		 12V 60 450 48 2000 16 7.9 6300 78
MS-36PGM5550124500-
264K		 12V 17 400 12 1500 28 3.4 2800 104
MS-36PGM5550126000-
721K		 12V 8 400 6 3200 160 9.9 9000 630
MS-36PGM5550246000-
3.7K		 24V 1621 500 1216 2000 1.5 18.7 8000 7.5
MS-36PGM5550246000-
5.2K		 24V 1153 400 1016 1600 1.25 13 5380 8

Packaging and delivery:

Packaging Details
Strong Carton 100pcs/box, or as you wish.
Port
Shenzhen/Guangzhou/Shanghai
Selling Units:
Single item
Single package size:
37X27X24cm
Single gross weight:
400g/450g

Supply Ability:

Supply Ability
100000 Piece/Pieces per Month

Lead time:

Quantity (pieces) 1 - 100 101 - 1000 > 5000
Lead time (days) 10 15 To be negotiated

Samples:

Maximum order quantity: 1piece
Sample price:

$20/piece or Negotiable

Certifications:

36 Planetary Gearbox Motor DC Reduction Planetary Motor 36MM Metal Gearbox DC Gear Motor for Coffee Machine

Factory Show:

36 Planetary Gearbox Motor DC Reduction Planetary Motor 36MM Metal Gearbox DC Gear Motor for Coffee Machine

36 Planetary Gearbox Motor DC Reduction Planetary Motor 36MM Metal Gearbox DC Gear Motor for Coffee Machine

Product Classification:

36 Planetary Gearbox Motor DC Reduction Planetary Motor 36MM Metal Gearbox DC Gear Motor for Coffee Machine

36 Planetary Gearbox Motor DC Reduction Planetary Motor 36MM Metal Gearbox DC Gear Motor for Coffee Machine

Applications:

Medical equipment
sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer.
Business Machines
Intelligent robot,Copiers and Scanners, 3D Printers, Tattoo pen.
Electric powered equipment
Electric toothbrush,Electric tool,Electric toy car,Electric curtain.
Smart Home
Intelligent window opener ,vacuum cleaner, Smart coffee machine,hair drier,Fascia gun,fan,air cleaner,Hair removal device,door
lock,Intelligent door lock.
Food and Beverage
Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Robotics
Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Convenying robot, Inspection robot.

36 Planetary Gearbox Motor DC Reduction Planetary Motor 36MM Metal Gearbox DC Gear Motor for Coffee Machine

36 Planetary Gearbox Motor DC Reduction Planetary Motor 36MM Metal Gearbox DC Gear Motor for Coffee Machine

FAQ
Q1:What's the price?
A1:We're a professional manufacturer So the exact price is based on clients' specifications,such as the speed,voltage etc.
Q2:What's the MOQ?
A2: We try to meet every client's requests and don't want to disappoint our clients.So the MOQ is flexible if the product is not complicated to produce and we are not in a busy season.Kindly chat with our saler to confirm it.

Q3: What's the delivery time?

A3:At the first we have an schedule,the earlier you place order,the fater we finish the production.

In the slack season,we can make sure the delivery time is by one month.

In the busy season,we need more than one month if your quantity is large.

The most important,we can provide free overtime prodution if your order is really urgent.

Q4: Can you send some samples before the order?
A4:Yes of course,we must send the sample to confirm the quality with you first.UPS,TNT,FEDEX or DHL are all available.

Q5:Can you make our logo on the products?

A5:Certainly,logo is easy as most of our products are customizable.So logo in usually logo is necessary.It can be labeled on the motors.
