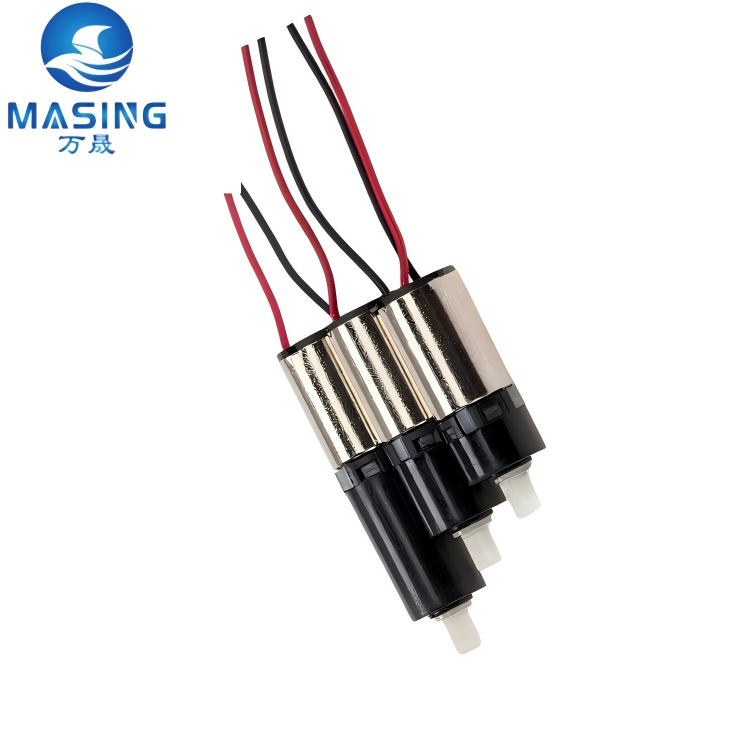

6mm Diameter High Torque Low Noise DC Planetary Gear Motor for Toy Robot and Smart Home
6mm Diameter High Torque Low Noise DC Planetary Gear Motor for Toy Robot and Smart Home
6mm Diameter High Torque Low Noise DC Planetary Gear Motor for Toy Robot and Smart Home
6mm Diameter High Torque Low Noise DC Planetary Gear Motor for Toy Robot and Smart Home
6mm Diameter High Torque Low Noise DC Planetary Gear Motor for Toy Robot and Smart Home
6mm Diameter High Torque Low Noise DC Planetary Gear Motor for Toy Robot and Smart Home
6mm Diameter High Torque Low Noise DC Planetary Gear Motor for Toy Robot and Smart Home
6mm Diameter High Torque Low Noise DC Planetary Gear Motor for Toy Robot and Smart Home
Specifications
Brand Name :
Masing Motor
Model Number :
MS-06PM10
Certification :
16949,ROHS,CE,ISO
Place of Origin :
China
MOQ :
1000
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100000piece/per month
Delivery Time :
3-5 work weeks
Packaging Details :
Carton Box
Product name :
dc motor planetary gearbox 6mm
Shaft type :
Flat ,D-Cut or Round or Customized
Efficiency :
56%-90%
Speed :
Customized
Gearbox Diameter :
φ6mm
Gearbox type :
Micro Planetary Gearbox
Gear material :
Precision plastic gear
Motor type :
6mm Coreless DC Motor
Keywords :
6mm mini plastic planetary dc gearbox motor
Direction of motor :
CW&CCW
Noise :
Low Noise
Gearbox material :
Plastic gearbox
Description
High Torque Diameter 6mm Gearbox 3V 6V Micro Planetary Gear DC Motors
Compact 6mm planetary gear DC motors delivering high torque performance for precision applications in robotics, smart home devices, medical instruments, and consumer electronics.
Key Features
  • High efficiency: 70% operating efficiency
  • Rated speed: 100-3000 RPM (customizable)
  • Voltage range: DC 1.2V-12V
  • Compact dimensions: φ6mm diameter, 18.6mm length
  • Low noise operation: ≤55DB
  • High torque: 0.5-2.0kg.cm
  • Motor type: Mini coreless planetary gear motor
  • Direction: CW & CCW rotation
  • Working temperature: -40°C to +60°C
Technical Specifications
Gearbox: φ6mm diameter, plastic construction
Shaft: φ2mm diameter, plastic material
Gears: Precision plastic gears
Weight: 8g
Continuous Current: 20-300mA
Product Images
6mm Diameter High Torque Low Noise DC Planetary Gear Motor for Toy Robot and Smart Home 6mm Diameter High Torque Low Noise DC Planetary Gear Motor for Toy Robot and Smart Home 6mm Diameter High Torque Low Noise DC Planetary Gear Motor for Toy Robot and Smart Home
Performance Specifications
Model Voltage (VDC) Current (mA MAX) Speed (rpm) Torque (g-cm) Gear Ratio Total Length (mm)
MS06PM10-5.14-MD16001 3 230 6420 5 5.14 17.60
MS06PM10-26.45-MD16002 3 230 1200 27 26.45 19.90
MS06PM10-136.2-MD16003 3 230 242 120 136.02 22.25
MS06PM10-699.55-MD16004 3 230 46 180 699.55 24.70
Applications
Eye massager medical vision correction products, door-lock systems, robots, SMART HOME devices, electric bicycle locks, cosmetic instruments, toy robots, driverless technology, artificial intelligence, intelligent transportation, health care, smart city, automotive supplies, security monitoring, 5G communication.
6mm Diameter High Torque Low Noise DC Planetary Gear Motor for Toy Robot and Smart Home
Packaging & Delivery
Packaging: Strong carton 400pcs/box, or customized
Port: Shenzhen/Guangzhou/Shanghai
Single package size: 37*27*24cm
Single gross weight: 10.0kg
Supply Capacity
100,000 pieces per month
Lead Time
Quantity (pieces) 1 - 100 101 - 1000 > 1000
Lead time (days) 10 15 To be negotiated
Samples
Maximum order quantity: 1 piece
Sample price: $5/piece or negotiable
Certifications
6mm Diameter High Torque Low Noise DC Planetary Gear Motor for Toy Robot and Smart Home
Factory Show
6mm Diameter High Torque Low Noise DC Planetary Gear Motor for Toy Robot and Smart Home
Product Classification
6mm Diameter High Torque Low Noise DC Planetary Gear Motor for Toy Robot and Smart Home
Frequently Asked Questions
Q1: How to select a suitable motor?
A1: If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed lifetime and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.
Q2: Do you have a customized service for your standard motors?
A2: Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.
Q3: Do you have an individual design service for motors?
A3: Yes, we would like to design motors individually for our customers, but it may need some mould charge and design charge.
Q4: Can I have samples for testing first?
A4: Yes, definitely you can. After confirmed the needed motor specs, we will quote and provide a proforma invoice for samples, once we get the payment, we will get a PASS from our account department to proceed samples accordingly.
Q5: How do you make sure motor quality?
A5: We have our own inspection procedures: for incoming materials, we have signed sample and drawing to make sure qualified incoming materials; for the production process, we have tour inspection in the process and final inspection to make sure qualified products before shipping.
Q6: What's your lead time?
A6: Generally speaking, our regular standard product will need 25-30 days, a bit longer for customized products. But we are very flexible on the lead time, it will depend on the specific orders.
