Plastic DC Planetary Gear Motor N20 Worm Gear Motor OEM ODM Available
Plastic DC Planetary Gear Motor N20 Worm Gear Motor OEM ODM Available
Plastic DC Planetary Gear Motor N20 Worm Gear Motor OEM ODM Available
Plastic DC Planetary Gear Motor N20 Worm Gear Motor OEM ODM Available
Plastic DC Planetary Gear Motor N20 Worm Gear Motor OEM ODM Available
Plastic DC Planetary Gear Motor N20 Worm Gear Motor OEM ODM Available
Plastic DC Planetary Gear Motor N20 Worm Gear Motor OEM ODM Available
Plastic DC Planetary Gear Motor N20 Worm Gear Motor OEM ODM Available
Specifications
Brand Name :
Masing Motor
Model Number :
MS12PN20
Certification :
16949,RohS,CE,ISO
Place of Origin :
China
MOQ :
1000
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100000piece/per month
Delivery Time :
3-5 work weeks
Packaging Details :
Carton Box
Product name :
N20 worm plastic dc gear motor
Shaft material :
Plastic or Customized
Motor diameter :
φ12mm
Voltage :
DC1.2V-12V
Direction of motor :
CW & CCW available
Gearbox material :
φ12mm Planetary Gearbox
Gears material :
Plastic Gears or Customized
Motor type :
FF-N20 dc motor
Brush type :
Metal brush or carbon brush
Life time :
500H-1000H
Description
Plastic DC Planetary Gear Motor N20 Worm Gear Motor
OEM ODM Available
Product Overview
N20 Worm Gear Motor Micro Planetary Gear Motor for Auto Sensing Vehicle Wireless Charging Bracket S5 Magic Clip
  • High Efficiency and Performance: 1.2v-12v DC Spur Geared Motor offers efficiency of IE 1
  • No-load Speed: 10-500RPM or Customized
  • Rotating speed is constant and can be made as required
  • Motor type: FF-N20, FF-N10, FF-N30
  • Suitable for small diameter, low noise and big torque applications
  • Brush Type: Metal brush or Carbon brush
  • Gearbox material: Plastic
  • Gear material: High precision plastic gear
  • Motor default direction: CW & CCW available
  • Gearbox diameter: φ12mm Gearbox
  • Can be matched with wheel, one shaft one wheel or one motor, one wheel
  • Certificate: 16949, CE, ROHS, ISO
  • Working temperature: -40~+60°C
  • Low Noise and High Torque: With torque of 0.01-1kg.cm, operates at low noise level
  • Usage: door-lock, robots, SMART HOME, Electric Bicycle Lock, Cosmetic Instrument
  • We can provide samples for testing
  • Product quality guaranteed, 100% of all goods pass quality inspection before shipment
  • Support service: OEM & ODM available
Technical Specifications
Speed (RPM): 10-500rpm
Continuous Current (A): 10mA-200mA
Gearbox Efficiency: 55%-85%
Warranty: Others
Place of Origin: Guangdong, China
Brand Name: Masing Motor
Model Number: MS12PN20
Use: Auto Sensing Vehicle Wireless Charging Bracket S5 Magic Clip, door-lock, robots, SMART HOME, Electric Bicycle Lock, Cosmetic Instrument, toys
Motor Type: FF-N20/FF-N20/FF-N30
Rated Torque: 0.01kgf.cm-1kgf.cm
Gearbox Diameter: φ12mm
Commutation: Brush Motor
Direction of motor: CW & CCW available
Gears Material: High precision plastic gear
Shaft material: Plastic
Keywords: 3V Mini Worm gear dc motor
Brush type: Metal brush or Carbon brush
Certificates: 16949, CE, Rohs, ISO
Noise: low noise level ≤55DB
MOQ: 1000Pcs
Voltage range: 1.2v-12v
Color: Customer's Request
Gearbox type: Plastic planetary gearbox

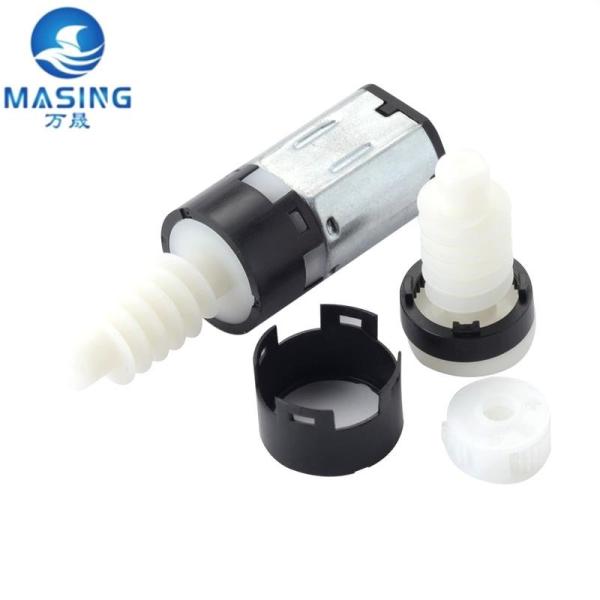

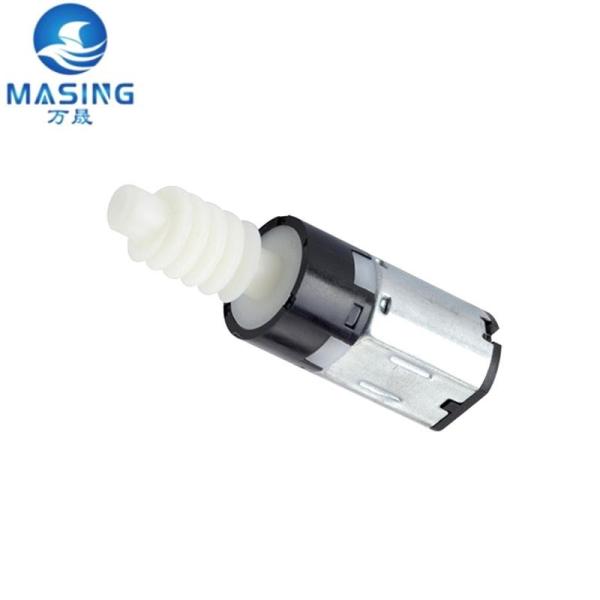

Product Images
Plastic DC Planetary Gear Motor N20 Worm Gear Motor OEM ODM Available Plastic DC Planetary Gear Motor N20 Worm Gear Motor OEM ODM Available Plastic DC Planetary Gear Motor N20 Worm Gear Motor OEM ODM Available
Technical Specifications Table
12mm DC Plastic Planetary Gear Motor Typical Applications: Auto Sensing Vehicle Wireless Charging Bracket S5 Magic Clip, door-lock, robots, SMART HOME, Electric Bicycle Lock, Cosmetic Instrument, toys
Voltage, rated torque, speed, current, power and shaft size can be customized as requirement.
Plastic DC Planetary Gear Motor N20 Worm Gear Motor OEM ODM Available
Model Rated Voltage (VDC) No-Load Current (mA MAX) Load Current (mA MAX) Output Speed (rpm) Use Torque (g-cm) Gear Ratio Gear Box Length (mm) Total Length (mm)
MS12PN20-4-MD18003-1-M3.05015028008.046.822.0
MS12PN20-6-MD18003-1-M3.050150186612.06
MS12PN20-16-MD18003-1-M3.05015070030.31610.625.8
MS12PN20-24-MD18003-1-M3.05015046645.524
MS12PN20-36-MD18003-1-M3.05015031168.236
MS12PN20-64-MD18003-1-M3.055160175115.26414.429.6
MS12PN20-96-MD18003-1-M3.055160116172.896
MS12PN20-144-MD18003-1-M3.05516077259.2144
MS12PN20-216-MD18003-1-M3.05516051.8388.9216
MS12PN20-256-MD18003-1-M3.06020043.7437.825618.233.4
MS12PN20-384-MD18003-1M3.06020029.1656.8384
MS12PN20-576-MD18003-1-M3.06020019.4985.2576
MS12PN20-864-MD18003-1-M3.06020012.91477.8864
MS12PN20-1296-MD18003-1-M3.0602008.62216.71296
Packaging & Delivery
Packaging Details: Strong Carton 1000pcs/box, or as you wish
Port: Shenzhen/Guangzhou/Shanghai
Selling Units: Single item
Single package size: 37X27X24cm
Single gross weight: 22g
Supply Capacity
Supply Ability: 100,000 Piece/Pieces per Month
Lead Time
Quantity (pieces) 1 - 100 101 - 1000 > 1000
Lead time (days) 10 15 To be negotiated
Samples
Maximum order quantity: 1 piece
Sample price: $3/piece or Negotiable
Certifications
Plastic DC Planetary Gear Motor N20 Worm Gear Motor OEM ODM Available
Factory Show
Plastic DC Planetary Gear Motor N20 Worm Gear Motor OEM ODM Available
Product Classification
Plastic DC Planetary Gear Motor N20 Worm Gear Motor OEM ODM Available
Applications
Driverless, Artificial intelligence, Intelligent transportation, Health care, Smart city, Automotive supplies, Security monitoring, 5G communication, Smart home, door-lock, robots, Electric Bicycle Lock, Cosmetic Instrument.
Medical equipment sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer
Business Machines intelligent robot, Copiers and Scanners, 3D Printers, Tattoo pen
Electric powered equipment Electric toothbrush, Electric tool, adult erotica products, Electric toy car, Electric curtain
Smart Home Intelligent window opener, vacuum cleaner, Smart coffee machine, hair drier, Fascia gun, fan, air cleaner, Hair removal device, door lock, Intelligent door lock
Food and Beverage Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers
Robotics Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Convenying robot, Inspection robot
Plastic DC Planetary Gear Motor N20 Worm Gear Motor OEM ODM Available
Frequently Asked Questions
Q1: Can you send me your price list?
A1: Since we have hundreds of different products, and price varies per different specifications, we are not able to offer a price list. But we can quote within 24 hours once got your inquiries to make sure you can get the price in time.
Q2: About customized gearbox?
A2: As a gearbox manufacturer with R & D capability, we support customers to provide us with gearbox shape, required reduction ratio and output speed. We will develop customized products for you. Or you can provide your own R & D products, and we will optimize the structure, production and assembly for you.
Q3: How can we get samples?
A3: Normally ship samples by express (DHL/UPS/FEDEX/TNT) after we get your address in 1 day.
Q4: How can you guarantee the quality?
A4: We have 100% finished product inspection before delivery and no defective products returned.
Q5: Do you have certificates for the motors?
A5: Yes, we have RoHS, ISO, REACH, CE, 16949 etc. If you have the other certificates requirement, we can apply it.
Q6: What is the advantage about your company?
A6: a. Advanced manufacturing equipment b. More than 15 years motor design, manufacturing experience c. Flexible customization of OEM/ODM orders d. Advanced automated production equipment e. ISO9001, ISO14001, TS16949 system certification
