20A130 20mm Brush DC Geared Motor 12V Spur Gear Reducer Low RPM Permanent Magnet Micro Motor with Encoder
20A130 20mm Brush DC Geared Motor 12V Spur Gear Reducer Low RPM Permanent Magnet Micro Motor with Encoder
20A130 20mm Brush DC Geared Motor 12V Spur Gear Reducer Low RPM Permanent Magnet Micro Motor with Encoder
20A130 20mm Brush DC Geared Motor 12V Spur Gear Reducer Low RPM Permanent Magnet Micro Motor with Encoder
20A130 20mm Brush DC Geared Motor 12V Spur Gear Reducer Low RPM Permanent Magnet Micro Motor with Encoder
20A130 20mm Brush DC Geared Motor 12V Spur Gear Reducer Low RPM Permanent Magnet Micro Motor with Encoder
20A130 20mm Brush DC Geared Motor 12V Spur Gear Reducer Low RPM Permanent Magnet Micro Motor with Encoder
20A130 20mm Brush DC Geared Motor 12V Spur Gear Reducer Low RPM Permanent Magnet Micro Motor with Encoder
Specifications
Brand Name :
Masing Motor
Model Number :
MSPG20F130
Certification :
ISO,CE,ROHS ,16949
Place of Origin :
China
MOQ :
1000
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100000piece/per month
Delivery Time :
3-5 work weeks
Packaging Details :
Carton Box
Product name :
FF-130 20mm DC Micro Gear Motor
Shaft type :
Round,Flat ,D-Cut,Double -cut
Efficiency :
High Efficiency
Rated speed :
5rpm-4000rpm
Gearbox Diameter :
φ20mm Gearbox
Gearbox type :
Metal Gearbox φ20mm
Rated voltage :
3v-24v
Micro Motor :
FF-130 dc brushed motor
Direction of motor :
CW &CCW available
reduction ratio :
1:4.3 to 1:850
Description
20mm Brush DC Geared Motor with Encoder
20A130 20mm Brush DC Geared Motor 12V Spur Gear Reducer Low RPM Permanent Magnet Micro Motor with Encoder
Product Features
  • High Efficiency: 90%-65% operating efficiency
  • Motor Model: FF-130 or FF-180 DC Micro Motor
  • Rated Speed: 5rpm - 4000RPM (customizable)
  • Constant rotating speed with custom specifications available
  • Compact Size: 20mm diameter planetary gear DC motor
  • Certifications: CE, RoHS, ISO9001, REACH, 16949
  • Low noise operation suitable for small diameter applications
  • Motor Type: Brushed Motor with metal or carbon brushes
  • Bidirectional Operation: CW & CCW available
  • Operating Temperature: -40°C to +60°C
  • Rated Power: 1W-5W with maximum torque of 5KG.cm
  • Multiple Shaft Options: Round, D-cut, Double-cut, Threaded, or with holes
Technical Specifications
Key Attributes
Speed (RPM) 5rpm-4000rpm
Continuous Current Customized
Efficiency 90%-65%
Place of Origin Guangdong, China
Brand Name Masing Motor
Model Number MS-20A130
Rated Torque 0.01-5kg.cm
Shaft Diameter φ4mm, D-cut
Gearbox Diameter φ20mm
Noise Level ≤55DB
Minimum Order Quantity 1000Pcs

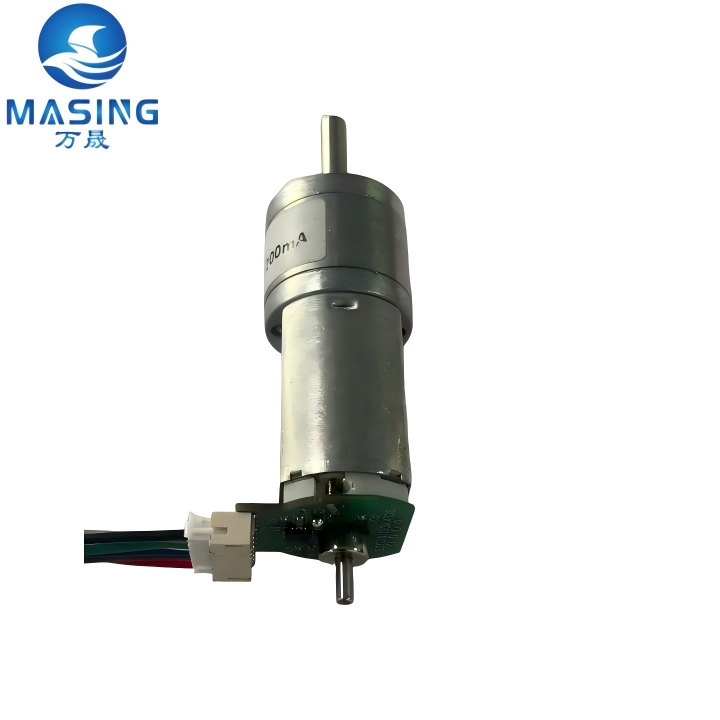

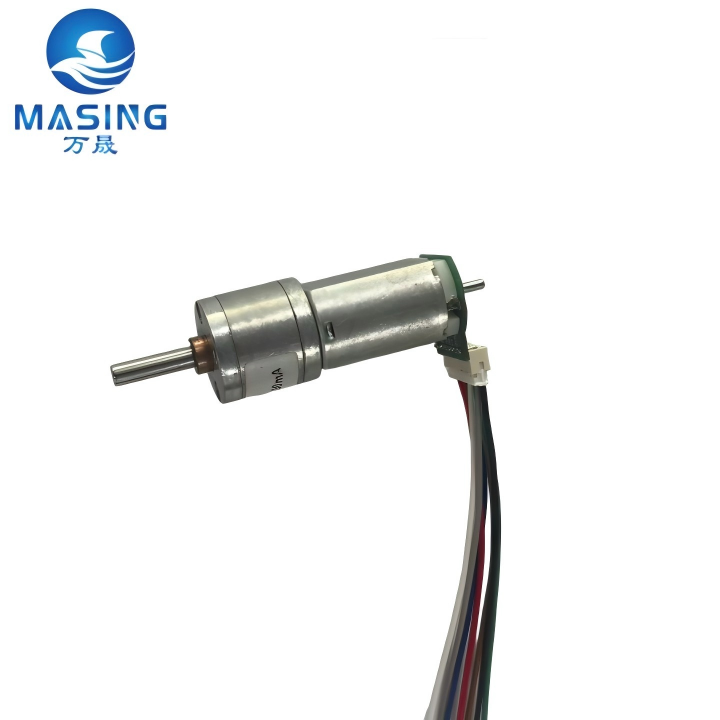

Product Images
20A130 20mm Brush DC Geared Motor 12V Spur Gear Reducer Low RPM Permanent Magnet Micro Motor with Encoder 20A130 20mm Brush DC Geared Motor 12V Spur Gear Reducer Low RPM Permanent Magnet Micro Motor with Encoder

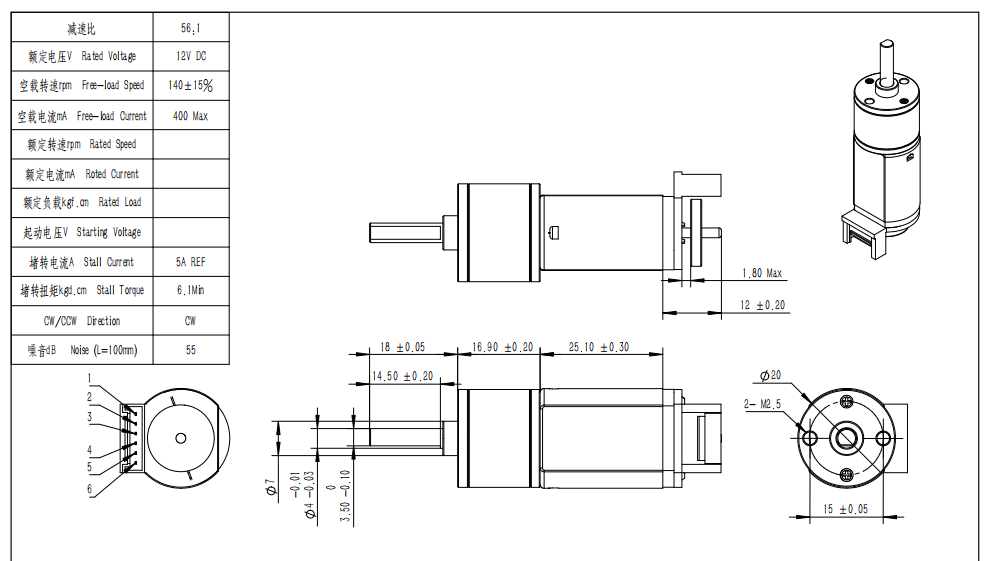

Performance Data
20A130 20mm Brush DC Geared Motor 12V Spur Gear Reducer Low RPM Permanent Magnet Micro Motor with Encoder
Applications
Intelligent household appliances, office automation, automotive, medical, personal care, robot, electronic lock, industrial automation, door-lock systems, robotics, toys, 5G products, SMART HOME devices, electric bicycle locks, and cosmetic instruments.
20A130 20mm Brush DC Geared Motor 12V Spur Gear Reducer Low RPM Permanent Magnet Micro Motor with Encoder
Packaging & Delivery
Strong Carton packaging (200pcs/box) or customized packaging available. Shipping from Shenzhen, Guangzhou, or Shanghai ports.
Package Details
Single Package Size 37×27×24cm
Single Gross Weight 85g
Supply Ability 100,000 pieces per month
Lead Time
Quantity (pieces) Lead Time (days)
1 - 100 10
101 - 1000 15
> 1000 To be negotiated
Samples
Maximum order quantity: 1 piece. Sample price: $15/piece.
Certifications
20A130 20mm Brush DC Geared Motor 12V Spur Gear Reducer Low RPM Permanent Magnet Micro Motor with Encoder
Factory Overview
20A130 20mm Brush DC Geared Motor 12V Spur Gear Reducer Low RPM Permanent Magnet Micro Motor with Encoder
Product Classification
20A130 20mm Brush DC Geared Motor 12V Spur Gear Reducer Low RPM Permanent Magnet Micro Motor with Encoder
Frequently Asked Questions
Q1: How to select a suitable motor?
A1: If you have motor pictures, drawings, or detailed specifications like voltage, speed, torque, motor size, working mode, required lifetime, and noise level, please share them with us. We will recommend the most suitable motor for your application.
Q2: Do you have a customized service for your standard motors?
A2: Yes, we offer customization for voltage, speed, torque, and shaft size/shape. We can also add wires/cables, connectors, capacitors, or EMC components as required.
Q3: Can I have samples for testing first?
A3: Yes, after confirming the required motor specifications, we will provide a proforma invoice for samples. Once payment is received, we will proceed with sample production.
Q4: How do you ensure motor quality?
A4: We maintain strict quality control procedures including incoming material inspection, production process inspection, and final inspection to ensure all products meet quality standards before shipping.
Q5: When will you reply after receiving my inquiries?
A5: We respond to all inquiries within 24 hours.
Q6: Can I visit your company?
A6: Yes, we welcome company visits. Please notify us at least two weeks in advance to schedule your visit appropriately.
