Hydraulic Knuckle Telescopic Boom Crane 1.5t 10m White
Hydraulic Knuckle Telescopic Boom Crane 1.5t 10m White
Hydraulic Knuckle Telescopic Boom Crane 1.5t 10m White
Hydraulic Knuckle Telescopic Boom Crane 1.5t 10m White
Specifications
Brand Name :
OUCO
Model Number :
OUCO-1.5T10M-KBT
Certification :
ABS/CCS/BV/ISO9001
Place of Origin :
Jiangsu. China
MOQ :
1 set
Price :
negotiation
Payment Terms :
L/C, T/T
Supply Ability :
20 sets per year
Delivery Time :
60 working days
Packaging Details :
Shipping Container/Wood Crate/nude
SWL :
1.5T10M
Working Radius :
3m
Hoisting Speed :
0-12m/min
Slewing Speed :
0-1r/min
Slewing Angle :
360°
Hook travel :
25m
Luffing time :
~35s
Power :
22KW
Description

Hydraulic Knuckle Telescopic Boom Crane 1.5t 10m White

Product description

The steering knuckle&Telescopic crane is a special crane used for transportation work in the marine environment. It is mainly used for cargo transportation between ships, sea supply and the transportation and recovery of objects during underwater operations.
Due to the special application conditions and harsh working environment, the folding jib crane must have reliable performance, precise control, high safety and durable structure.

Main Features and advantages

OUCO offers 1.5T10M white folding telescopic crane with lifting points of 1.5t2.1m, 1.5t4.35m, 1.5t 6.5, 1.5t8m.
High rotating torque, low rotary resistance, high diameter force, high torque, low failure rate, long service life and easy maintenance.
Primer is epoxy zinc-rich primer. C5M standard top coat, stronger corrosion resistance to seawater.
External/internal oil cylinder telescopic
The whole crane is sealed to prevent seawater infiltration and the influence of wet environment, and the key internal parts are well protected.

Technical Specification

SWL
1.5t10m
Max.working radius
10M
Min.working radius
3M
Hook travel
25M
Hoisting speed
0-12m/min
Slewing speed
1r/min
Slewing angle
360°
HPU 22 KW
Luffing angle 0- 75 °
Design temperature -20~+45 °
Working condition heel≤5° trim≤2°
Dead Weight
2700kg
Protect class IP 56

General Arrangement

Hydraulic Knuckle Telescopic Boom Crane 1.5t 10m White

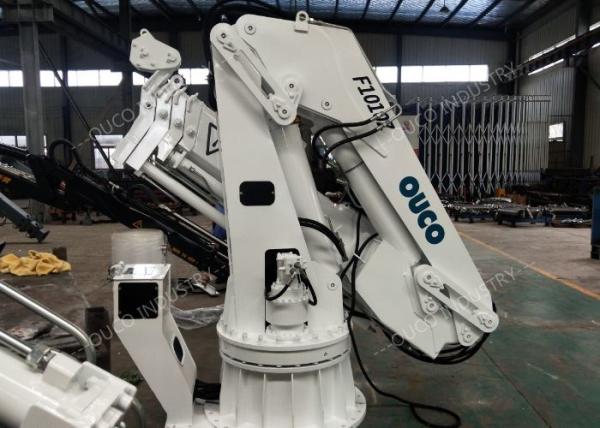

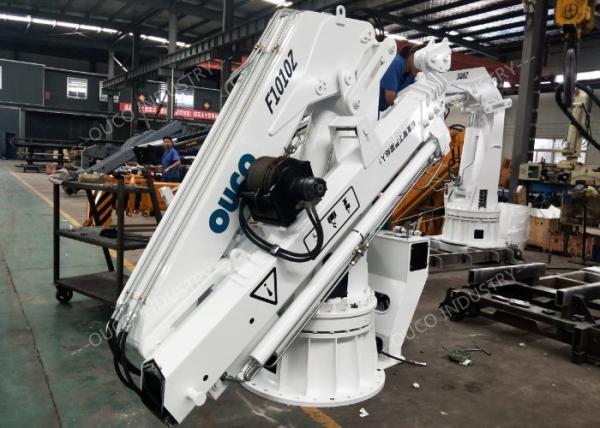

Product Picture

Hydraulic Knuckle Telescopic Boom Crane 1.5t 10m White

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Packing
container
Delivery
Standard product : 1month
Customized product: 2 months
Certified products: 3-4 months

For more details, please feel free to contact us.

Hydraulic Knuckle Telescopic Boom Crane 1.5t 10m White
