Specifications
Brand Name :
OUCO
Model Number :
OUCO-0.99T10M-KB
Certification :
CCS/ABS/BV/ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
negotiation
Payment Terms :
L/C, T/T
Supply Ability :
50 sets per year
Delivery Time :
50 days
Packaging Details :
Shipping Container/Wood Crate/nude
Product name :
ABS Approved Jib Ship Marine Hydraulic Knuckle Boom Deck Crane
SWL :
0.99T10M
Max. working radius :
10m
Min. working radius :
2M
Hoisting speed :
0-15m/min
Hoisting height :
15M
Slewing speed :
1.2r/min
Slewing angle :
360°
Luffing time :
45s
Luffing angle :
0-75°
Description

ABS Approved Jib Ship Marine Hydraulic Knuckle Boom Deck Crane

General information

OUCO knuckle boom marine crane appears similar to a standard crane, except that the boom articulates at the 'knuckle'

near the middle, letting it fold back like a finger. This provides a compact size for storage and manoeuvring.

The crane is controlled from an open platform above the slewing ring. One motions each (hoisting ,slewing or luffing) can be done with full load.Each hydraulic circuit is provided with equipment for limiting hydraulic pressure to preset values corresponding with crane capacity. The crane is provided with an automatic hook stop in top position.Over load safety device.Luffing up- down. The luffing cylinder is designed for safe buffering in extreme positions.

Consist of knuckle boom marine cranes : Pedestal,slewing ring, column,operation platform,winch,boom,pulley,wire rope,hook etc.

OUCO Cranes Advantages :

  1. 360° continuous rotation.
  2. -10 ----+45℃ working temperature.
  3. certified high quality steel structure.
  4. pedestal ready for mounting or weld to vessel main structure
  5. stainless steel grease nipples.
  6. precise step less speed control.
  7. simultaneous operations of 2 or more function.
  8. emergency for hydraulic stop device.
  9. visual and audible warning alarm.

Technical specification

SWL

0.99t10m

Max. working radius

 10m

Min. working radius

 2m

Hoisting speed

 0-15m/min

Hoisting height

 15m

Slewing speed

 ~1.2r/min

Slewing angle

 360°

Luffing time

 ~45s

Luffing angle

 75°

Working condition

trim ≤ 2 °

heel ≤ 5 °

Design temperature

 -10° ~ + 40 °

HPU

 30KW

Power resource

 AC380V/50HZ/3P

Dead weight

 3500kgs

Oil tank volume

 160L

Pressure

 28Mpa

Brand
OUCO
Warranty
one year

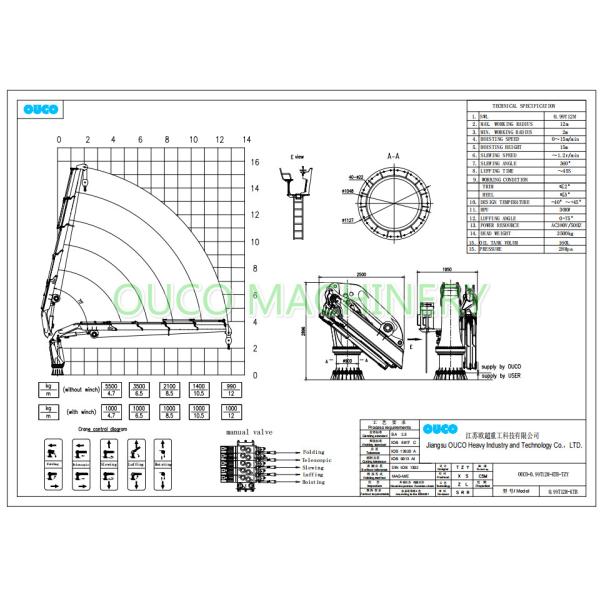

knuckle boom marine crane Design Drawing And Detailed Photos

Jib Ship Hydraulic Knuckle Boom Marine Deck Crane ABS Approved

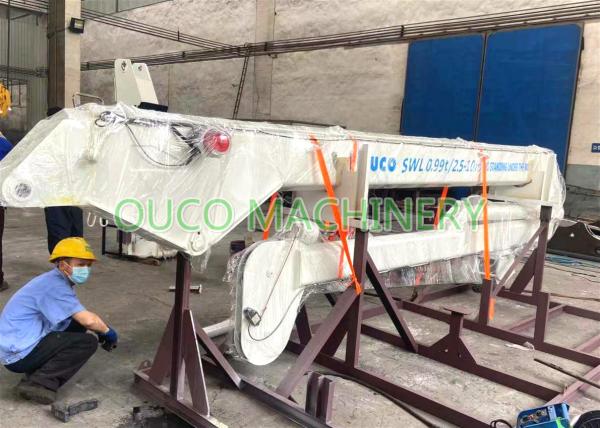

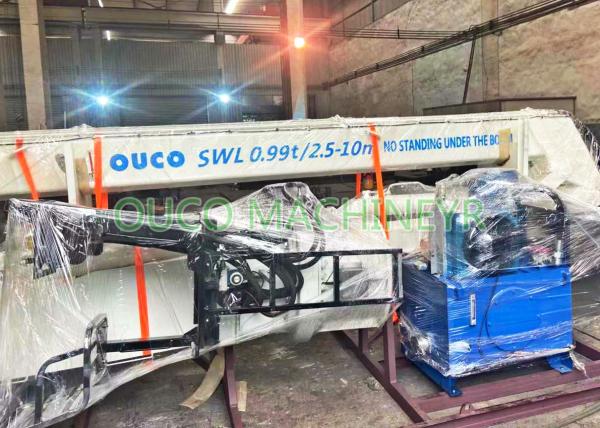

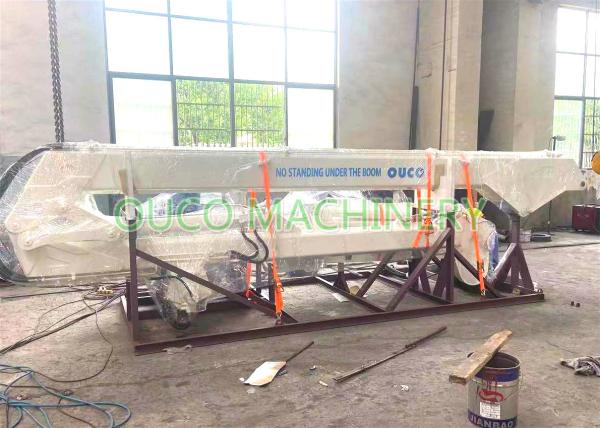

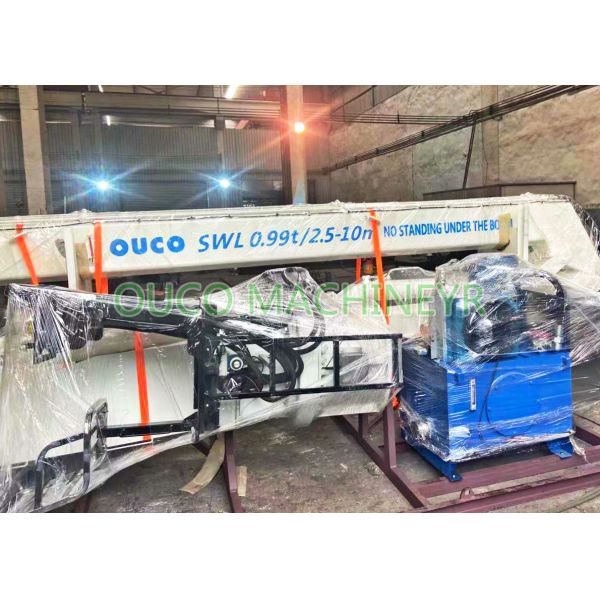

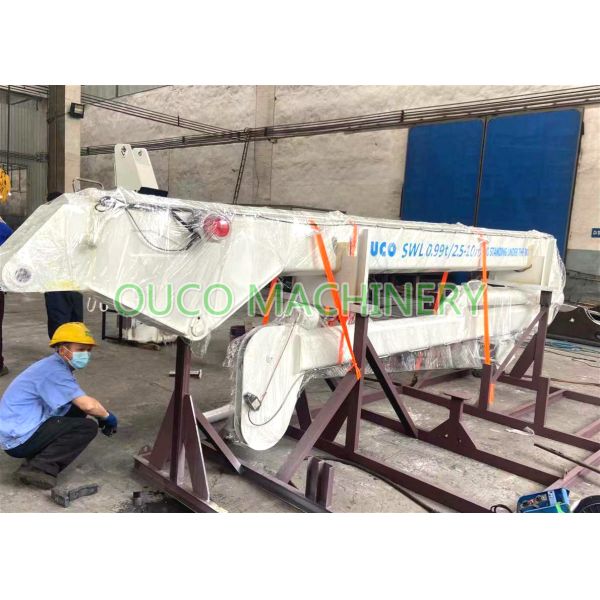

Processing Photos

Jib Ship Hydraulic Knuckle Boom Marine Deck Crane ABS Approved

Jib Ship Hydraulic Knuckle Boom Marine Deck Crane ABS Approved

Jib Ship Hydraulic Knuckle Boom Marine Deck Crane ABS Approved

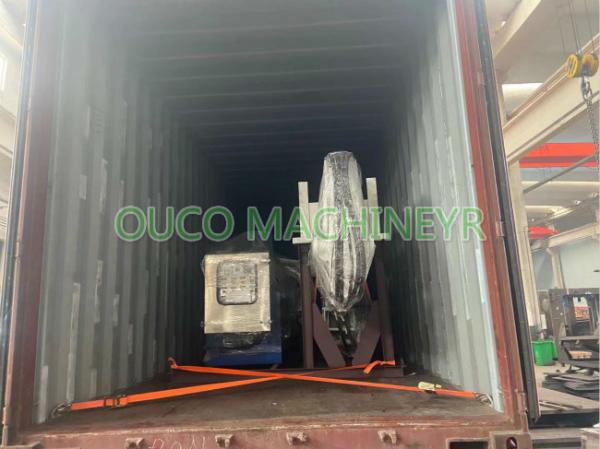

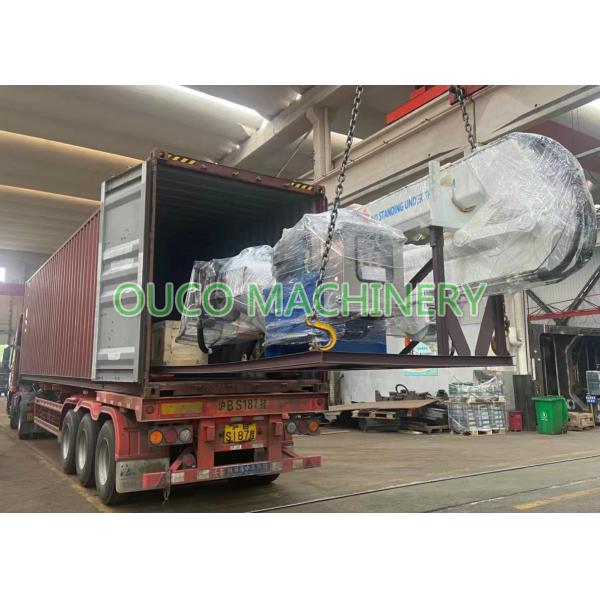

Packing

Jib Ship Hydraulic Knuckle Boom Marine Deck Crane ABS Approved

Packing
container
Delivery
Standard product : 1month
Customized product: 2 months
Certified products: 3-4 months

To better ensure the safety of your goods, professional, environmentally friendly, convenient and

efficient packaging services will be provided.
