Telescopic Marine Knuckle Boom Crane 4.5t12m
Telescopic Marine Knuckle Boom Crane 4.5t12m
Telescopic Marine Knuckle Boom Crane 4.5t12m
Telescopic Marine Knuckle Boom Crane 4.5t12m
Telescopic Marine Knuckle Boom Crane 4.5t12m
Telescopic Marine Knuckle Boom Crane 4.5t12m
Specifications
Brand Name :
OUCO
Model Number :
OUCO-1.5T10M-KBT
Certification :
ABS/CCS/BV/ISO9001
Place of Origin :
Jiangsu. China
MOQ :
1 set
Price :
negotiation
Payment Terms :
L/C, T/T
Supply Ability :
20 sets per year
Delivery Time :
60 working days
Packaging Details :
Shipping Container/Wood Crate/nude
SWL :
1.5T10M
Working Radius :
3m
Hoisting Speed :
0-12m/min
Slewing Speed :
0-1r/min
Slewing Angle :
360°
Hook travel :
25m
Luffing time :
~35s
Power :
22KW
Description

Telescopic Marine Knuckle Boom Crane 4.5t12m 6 Grade Sea State

OUCO 4.5t12m Telescopic marine knuckle boom crane with 6 Grade Sea State

Product description

What is a Telescopic marine knuckle boom crane?
This is our latest multifunctional marine crane, the boom supports telescopic, knuckle, luffing and other functions.
The crane has more lifting points, which can lift the cargo more flexibly. The user assembles it for the marine cargo ship, so we have specially raised the sea state level to reach the standard of the sixth sea state. Can deal with more complex offshore work needs.
According to customer requirements, the Air cooler, oil tank, and electric cabinet pump unit have been treated with waterproof and explosion-proof treatment, which can cope with harsh environments and are more reliable and durable.

Technical Specification

SWL

see load chart

Max.working radius

12M

Min.working radius

25M

Hook travel

15M

Hoisting height

150m

Slewing speed

0.7r/min

Slewing angle

360°

HPU

55KW

Luffing angle

0- 75 °

Design temperature

-20~+45 °

Working condition

heel≤8° trim≤4°

wind speed

 13.9m/s

Protect class

F

Working type

 S1

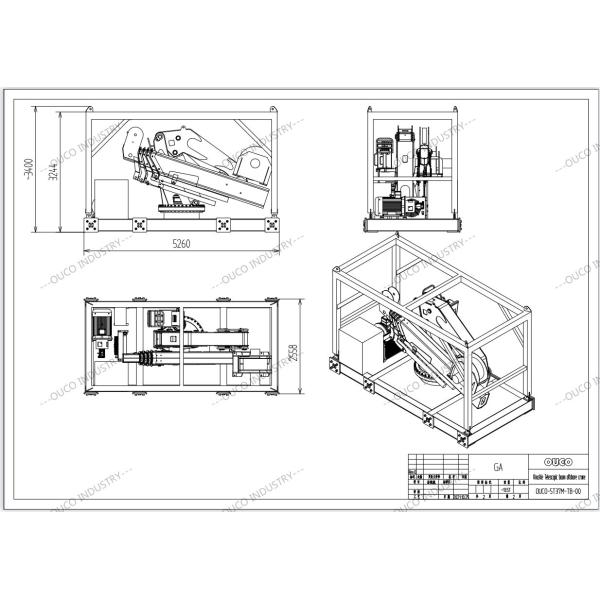

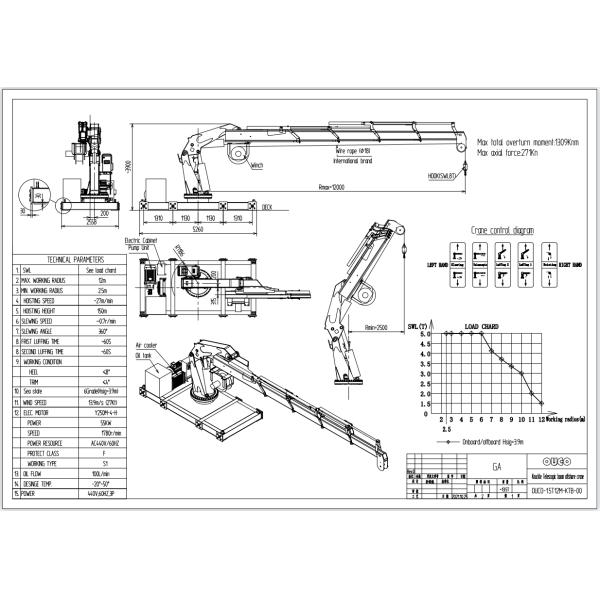

General Arrangement

Telescopic Marine Knuckle Boom Crane 4.5t12m

Telescopic Marine Knuckle Boom Crane 4.5t12m

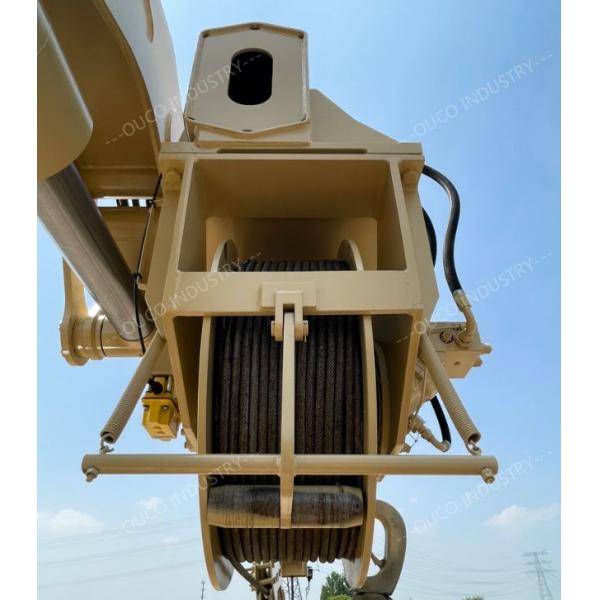

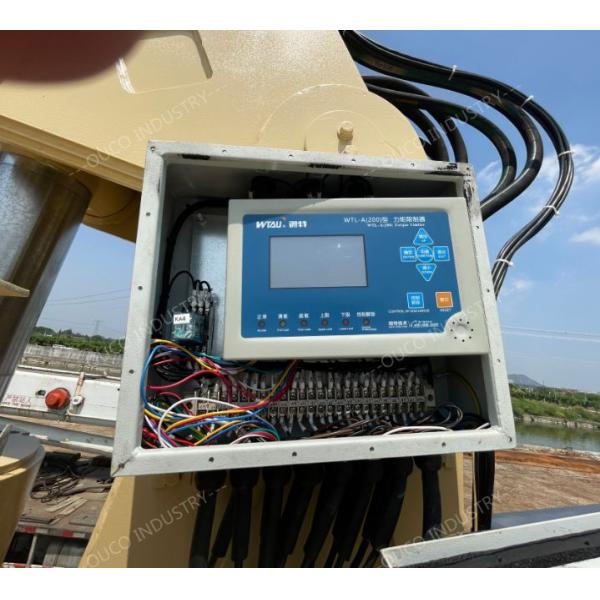

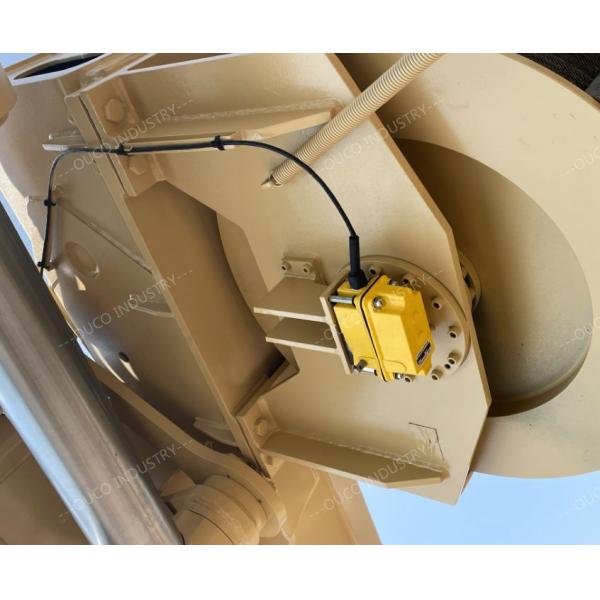

Product Picture

Telescopic Marine Knuckle Boom Crane 4.5t12m

Telescopic Marine Knuckle Boom Crane 4.5t12m

Telescopic Marine Knuckle Boom Crane 4.5t12m

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Packing
container
Delivery
Standard product : 1month
Customized product: 2 months
Certified products: 3-4 months

For more details, please feel free to contact us.

Telescopic Marine Knuckle Boom Crane 4.5t12m
