Industries Floor Portable Electric Telescopic Boom Crane With Luffing And Slewing
Industries Floor Portable Electric Telescopic Boom Crane With Luffing And Slewing
Industries Floor Portable Electric Telescopic Boom Crane With Luffing And Slewing
Industries Floor Portable Electric Telescopic Boom Crane With Luffing And Slewing
Industries Floor Portable Electric Telescopic Boom Crane With Luffing And Slewing
Industries Floor Portable Electric Telescopic Boom Crane With Luffing And Slewing
Specifications
Brand Name :
OUCO
Model Number :
OUCO-TB-1T2M
Certification :
CE/ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
negotiation
Supply Ability :
100 sets per year
Delivery Time :
40 days
Packaging Details :
Shipping Container/Wood Crate/nude
Color :
Client Requirement
After-sales Service Provided :
Engineers available to service machinery overseas
Boom Type :
Telescopic Boom
Protect Class :
IP 56
Insukate Class :
F
Woeking Type :
S1
Power type :
Electric
Type :
movable
Description

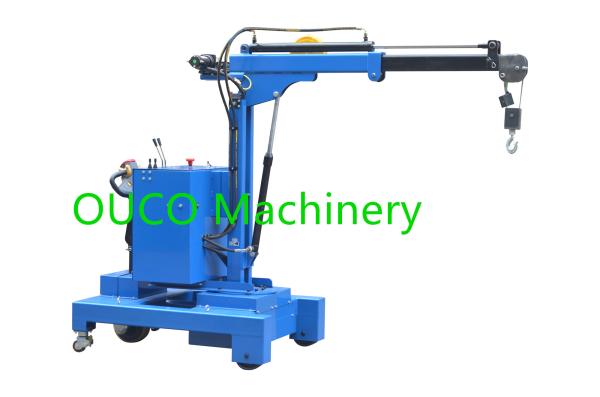

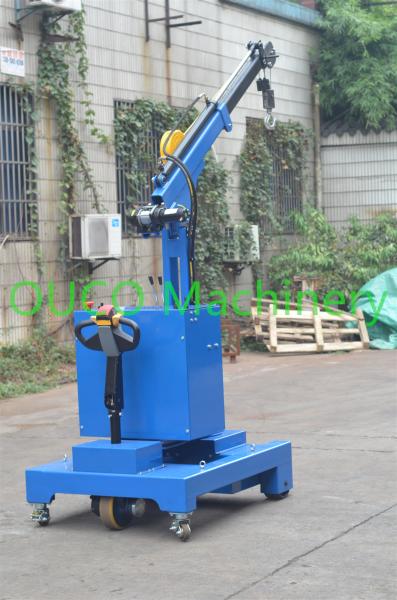

Portable electric crane with luffing and slewing Industries Floor Crane

Product Feature

1. Running smoothly.

2. Rates of speed can be changed.

3. 270 degrees continually rotary.

4. Both electro and manual to control.

5. Operate conveniently.

6. Safety and reliability.

Technical Parameters

Item Full electric slewing crane
Hoisting type Electric type
Max boom length for every section(mm) 1070 1710 1960 2210 2410
Max loading capacity for every section(kg) 450 210 185 145 120
Max height from hook to ground for every section(mm) 1960 2420 2560 2710 2840
Max distance from hook to end for every section(mm) 700 1160 1350 1570 1730
Height from hook to ground when boom is horizontal(mm) 1340 1340 1340 1340 1340
Distance from hook to end when boom is horizontal(mm) 665 1305 1555 1805 2005
Max slewing angle 270°
Max working radius(mm) 2410
Min working radiu(mm) 1070
Battery(V/Ah) 12/80*2
Charger(V/A) 24/15
Dimension:length* width *height(mm) 1310*1010*1910
Diameter of wheels(PU)(mm) Ф180/Ф250
Net weight(kg) 1204KG
Specification of pump station 24V/2.2kw
Specification of driving wheel 0.7kw
Dimension of driving wheel(mm) 250*80

Industries Floor Portable Electric Telescopic Boom Crane With Luffing And Slewing

Industries Floor Portable Electric Telescopic Boom Crane With Luffing And Slewing

Industries Floor Portable Electric Telescopic Boom Crane With Luffing And Slewing

Company introduction

OUCO Industry, was established in February 1984, covers an area of 48,000 square meters, construction area is 25,000 square meters.

OUCO headquartered in crane hometown of Jiangsu Province where representing most advanced machinery manufacturing level in China.

OUCO has more than 150 employees, 20 are technical staff. Among that has five senior engineer and a total of 50 welder (who has got CCS, ABS and other main institutions' certification). It also has professional organization certificated flaw detection staff, the quality system audit staff, and inspection personnel, etc.

FAQ

1. Q: Can this type work in hazardous environment?
A: Sure! We can customize for you, acid proof or explosion proof, no problem for that.
2. Q: Can you provide the serious lifting tools?
A: Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
3. Q: How can we install the crane?
A: Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
4. Q: Safety device
A: Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.
