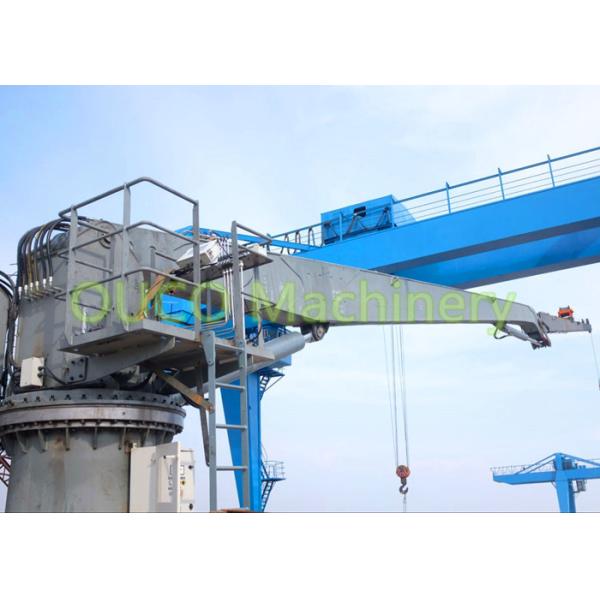

3T20M Knuckle Boom Hoisting Marine Deck Crane With High Performance

General information

A knuckle boom crane appears similar to a standard crane, except that the boom articulates at the 'knuckle'

near the middle, letting it fold back like a finger. This provides a compact size for storage and manoeuvring.

The cranes come with different types of control systems, such as: stand up, control from the ground, seat control, or radio remote control. The radio remote systems now can start the crane as well as run the crane.

The knuckle boom crane range is available from 0.5t to 150t lifting moment. Severe weather conditions and heavy seas introduce oscillating motions to suspend loads.

Consist of cranes : Pedestal,slewing ring, column,operation platform,winch,boom,pulley,

wire rope,hook etc.

OUCO Cranes Advantages :

360° continuous rotation.

-10 ----+45℃ working temperature.

certified high quality steel structure.

pedestal ready for mounting or weld to vessel main structure

stainless steel grease nipples.

precise step less speed control.

simultaneous operations of 2 or more function.

emergency for hydraulic stop device.

visual and audible warning alarm.

Technical specification

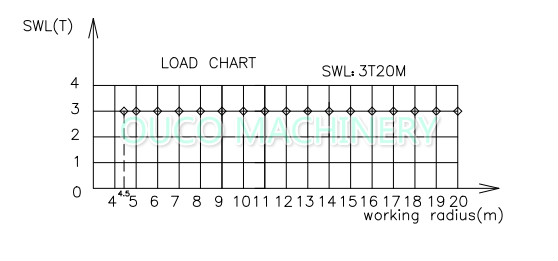

1. SWL : 3T20M

2. Max.working radius:20m

3.Min.working radius:4.5m

4.Hoisting speed:0-12m/min

5.Hoisting height:30m

6.Slewing speed:0.8r/min

7.Slewing angle:360°

8.Luffing time:~65 s

9.Design temp.: -10 ~+45 ℃

10.HPU :55KW

11. Luffing angle:0-75°

12.Power resource:AC380V/50HZ

13.Dead weight:~18000kg

14.Working condition: trim ≤2° , heel≤5°

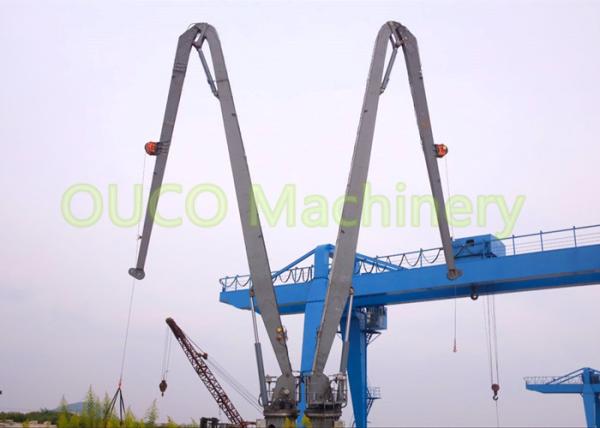

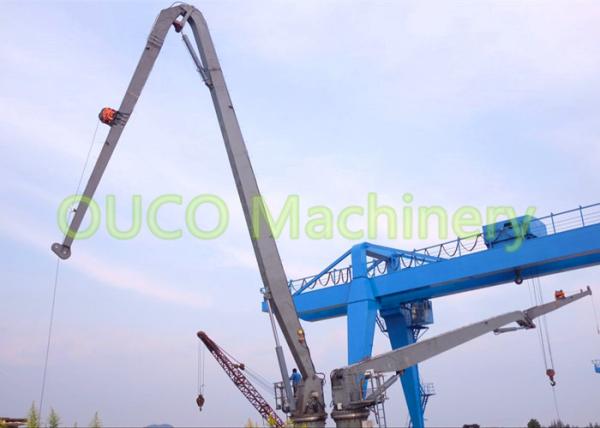

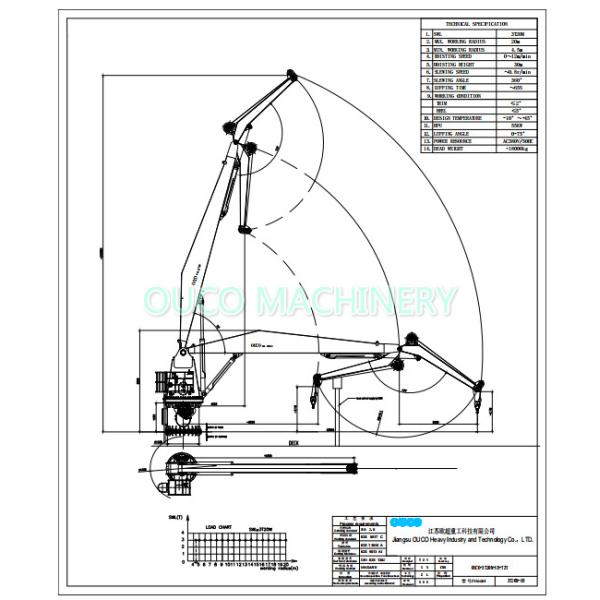

3t20m knuckle boom crane Design Drawing And Detailed Photos

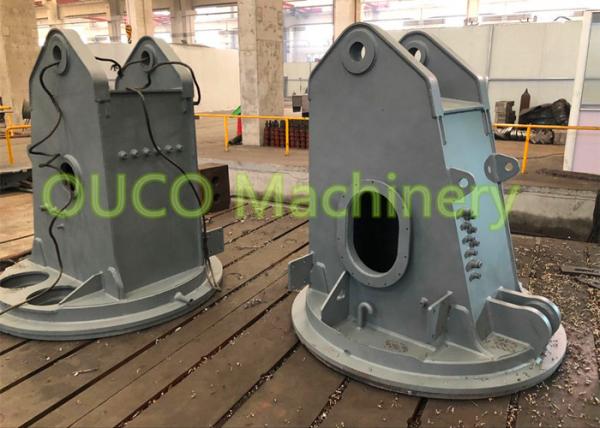

Processing

Packing

To better ensure the safety of your goods, professional, environmentally friendly, convenient and

efficient packaging services will be provided.

Our Company

OUCO Industry, was established in February 1984, covers an area of 48,000 square meters, construction

area is 25,000 square meters.

OUCO headquartered in crane hometown of Jiangsu Province where representing most advanced machinery

manufacturing level in China.

OUCO provides high quality handling solutions and access systems for the Crane, port industries and various

non-standard structural parts. The company has its own developing, designing, and manufacturing capacity for

products of metallurgical complete sets of equipment, marine cranes, truck cranes, boiler desulfurization and

denitrification environmental protection products in air pollution control field. Company products are widely used

in the metallurgical, ship, port, electricity, petroleum, building materials and chemical industries.

OUCO has agents in several countries and serves a global client base from strategic points in Europe, Asia, Africa,

Australia and Middle East. It has an annual output of 11,000 tons of steel structure production capacity.

Workshop

Certificate

Client Visit our factory

Every year, many of our clients will come to our factory to check the producing conditions and we are
in the good relationship with many clients.

OUCO Attend exhibiton to introduct cranes to clients:

PLEASE FEEL FREE TO CONTACT US IF YOU ARE INTERESTED!
