Electro-Hydraulic Knuckle Boom Marine Davit Crane 1T10M For Cargo Ship
Electro-Hydraulic Knuckle Boom Marine Davit Crane 1T10M For Cargo Ship
Electro-Hydraulic Knuckle Boom Marine Davit Crane 1T10M For Cargo Ship
Electro-Hydraulic Knuckle Boom Marine Davit Crane 1T10M For Cargo Ship
Electro-Hydraulic Knuckle Boom Marine Davit Crane 1T10M For Cargo Ship
Electro-Hydraulic Knuckle Boom Marine Davit Crane 1T10M For Cargo Ship
Electro-Hydraulic Knuckle Boom Marine Davit Crane 1T10M For Cargo Ship
Electro-Hydraulic Knuckle Boom Marine Davit Crane 1T10M For Cargo Ship
Electro-Hydraulic Knuckle Boom Marine Davit Crane 1T10M For Cargo Ship
Electro-Hydraulic Knuckle Boom Marine Davit Crane 1T10M For Cargo Ship
Electro-Hydraulic Knuckle Boom Marine Davit Crane 1T10M For Cargo Ship
Electro-Hydraulic Knuckle Boom Marine Davit Crane 1T10M For Cargo Ship
Electro-Hydraulic Knuckle Boom Marine Davit Crane 1T10M For Cargo Ship
Electro-Hydraulic Knuckle Boom Marine Davit Crane 1T10M For Cargo Ship
Electro-Hydraulic Knuckle Boom Marine Davit Crane 1T10M For Cargo Ship
Electro-Hydraulic Knuckle Boom Marine Davit Crane 1T10M For Cargo Ship
Specifications
Brand Name :
OUCO
Model Number :
OUCO-1T10M-KB
Certification :
ABS/CCS/ISO9001/BV
Place of Origin :
Jiangsu. China
MOQ :
1 set
Price :
negotiation
Payment Terms :
L/C, T/T
Supply Ability :
20 sets per year
Delivery Time :
45 working days
Packaging Details :
Shipping Container/Wood Crate/nude
Product Name :
Electro-Hydraulic Knuckle Boom Marine Davit Crane 1T10M For Cargo Ship
SWL :
1t 10m
Working Radius :
2.5-10 m
Hoisting Speed :
0-18 m/min
Hoisting Height :
20m
Slewing Speed :
0.8 r/min
Luffing time :
60S
Power resource :
AC 380V/50HZ
Power :
20KW
Dead weight :
6000 KG
Description

Electro-Hydraulic Knuckle Boom Marine Davit Crane 1T10M For Cargo Ship

Product description

The FB/KB series, knuckle boom crane, are very reliable for general cargos handling service and offshore use. On board various ship types and offshore units. Tailor made to your required specifications in different boom length and lifting capacities from 10mt -- 2000mt for different sea states. All FB/KB series cranes can be equipped with different accessories and class certified by all leading classification societies.

Advantages of knuckle boom crane pedestal crane:

Running smoothly.

Speed can be changed.

360° rotary

Can electro-hydraulic and manual to control.

Operate conveniently.

Safety.

Technical Specification

SWL
1T10M
Max.working radius
10M
Min.working radius
2.5M
Hoisting height
20M
Hoisting speed
18 m/min
Slewing speed
0.8 r/min
Slewing angle
360°
HPU 20 KW
Luffing time 60s
Working condition heel≤5° trim≤2°
Dead Weight
6000 KG

Customer Bulid

OUCO factory specializes in crane field for over 30 years. OUCO can design and manufacture almost type cranes based on your requirements.

Brand OUCO
Spare parts 1 set ( If needed, more spare parts are available to be provided according to customers' requirements )
Warranty 1 year( If needed, warranty time is available to be extended according to customers' requirements )

Detailed Images

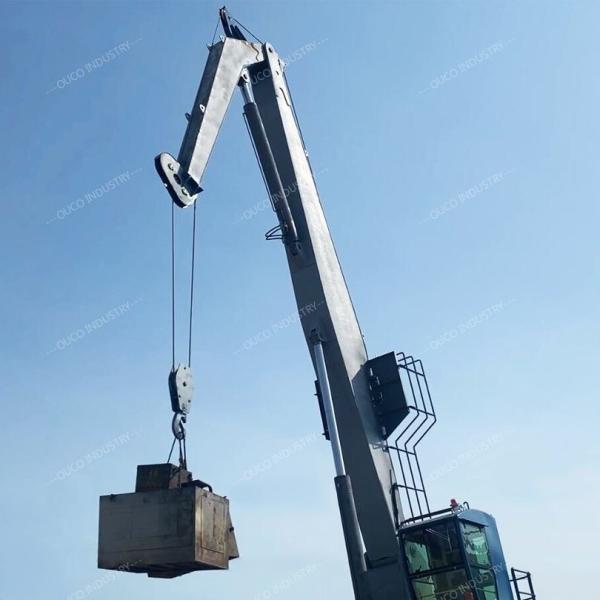

Electro-Hydraulic Knuckle Boom Marine Davit Crane 1T10M For Cargo Ship

FAQ

1.Q: What's the working radius of your crane?
A: From 1m to 100m, we can design and manufacture cranes according to your requirements.

2. Q: Which crane type should I choose?
A: We have knuckle boom, telescopic boom, stiff boom, etc.

3. Q: Is this crane explosion-proof?
A: Sure, we can equip extra function based on your requirement.

4. Q: Does your crane have safety devices?
A: Of course, we have all cut off limits and alarms for safety reasons.

5. Q: How can I install the crane to my vessel?
A: We can send our service engineers to the vessel site for guiding or ship the crane in whole pieces.

For more details, please feel free to contact us.

Electro-Hydraulic Knuckle Boom Marine Davit Crane 1T10M For Cargo Ship
