Port Bulk Hopper 45 Ton For Unloading Bulk Material Discharge Equipment
Port Bulk Hopper 45 Ton For Unloading Bulk Material Discharge Equipment
Port Bulk Hopper 45 Ton For Unloading Bulk Material Discharge Equipment
Port Bulk Hopper 45 Ton For Unloading Bulk Material Discharge Equipment
Port Bulk Hopper 45 Ton For Unloading Bulk Material Discharge Equipment
Port Bulk Hopper 45 Ton For Unloading Bulk Material Discharge Equipment
Port Bulk Hopper 45 Ton For Unloading Bulk Material Discharge Equipment
Port Bulk Hopper 45 Ton For Unloading Bulk Material Discharge Equipment
Specifications
Brand Name :
OUCO
Model Number :
OUCO-EH-100
Certification :
Manufacturer certificate
Place of Origin :
JIANGSU
MOQ :
1
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50 sets per year
Delivery Time :
2 months
Packaging Details :
Shipping Container/Wood Crate/nude
Material :
Steel structure
Density :
1.0~1.8t/CBM
Weight :
45t
Color :
As request
After sales service :
Engineers available overseas
Application :
Unloading bulk cargoes
Description

Dust Proof Device Port Hopper For Unloading Bulk Material Discharge Equipment

Product Description

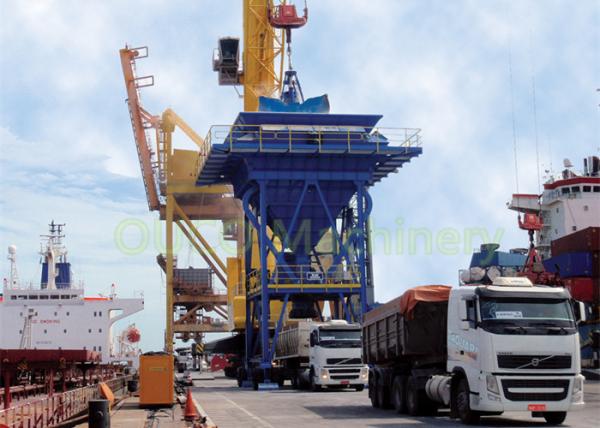

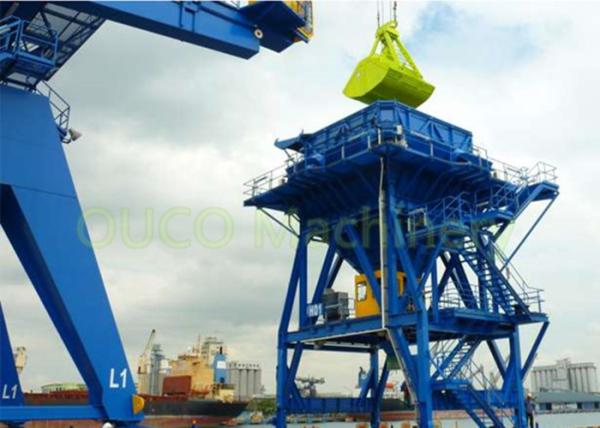

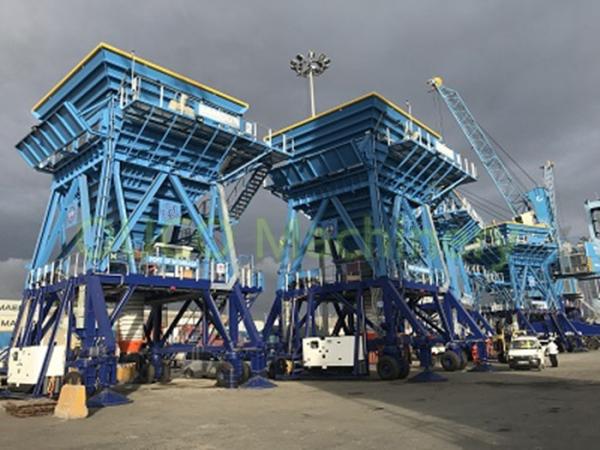

Hopper has improved loading and unloading efficiency on ports, hopper can load material to truck or conveyor belt to make loading and unloading easier when grab loading and unloading bulk material from the ship. Hopper has many types, such as movable, fixed, dust proof, non-dustproof type. We can design hoppers according to customer's request.


The hoppers made by OUCO are suitable to load and unload the coal cinder, the cement powder and the iron powder and so on. It can be designed in nonstandard according to the clients .


It can be installed on dust catcher, electric hydraulic door, vibrant supplying material devices and working devices. All of these can greatly improve the working efficiency.

Genernal Arrangement

Port Bulk Hopper 45 Ton For Unloading Bulk Material Discharge Equipment

Technical Specification

Load capacity 500t/h
Volume of hopper 40CBM
Motor of hydraulic station 1.5Kw 440V
Size of steel grating 400mm*400mm
Total power 105Kw
Specification of dust catcher 15w*2
Specification of dust catcher 7.5Kw*2
Full load capacity of hopper 40t
Suitable place To belt conveyor

OUCO Manufacturing process

Port Bulk Hopper 45 Ton For Unloading Bulk Material Discharge Equipment

Port Bulk Hopper 45 Ton For Unloading Bulk Material Discharge Equipment

FAQ


If any of the following information can be provided in your inquiry, it is very preciated:


1. The Volume & Max. opening of your grabs;

2. If need storing or not;

3. The volume of the hopper;

4. The type of hopper? Simple hopper or dust catching hopper;

5. Movable with wheels or fixed ?

6. Which type of loading under the hopper?

a. If truck loading, please inform the height of the trucks;
b. If conveyor belt loading, please inform the height/width/speed of the conveyor belt
c. If bagging, please inform the size of the bags

7. If you have other special requirements, please also tell us clearly.

We can provide exact drawing for you with above information you give to us.
