Coal Unloading Hopper High Safety Strong Structure Low Power Consumption
Coal Unloading Hopper High Safety Strong Structure Low Power Consumption
Coal Unloading Hopper High Safety Strong Structure Low Power Consumption
Coal Unloading Hopper High Safety Strong Structure Low Power Consumption
Coal Unloading Hopper High Safety Strong Structure Low Power Consumption
Coal Unloading Hopper High Safety Strong Structure Low Power Consumption
Coal Unloading Hopper High Safety Strong Structure Low Power Consumption
Coal Unloading Hopper High Safety Strong Structure Low Power Consumption
Specifications
Brand Name :
OUCO
Model Number :
OUCO-ECO-RMH
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
negotiation
Supply Ability :
50 sets per year
Delivery Time :
3 months
Packaging Details :
Shipping Container/Wood Crate/nude
Product Name :
OUCO High Efficiency Belt Conveyor Port Hopper For Coal
Color :
As Requirement
After-sales Service Provided :
Engineers available to service machinery overseas
Type :
Rail Mounted
Usage :
Unloading
Size :
Client Requirement
Description

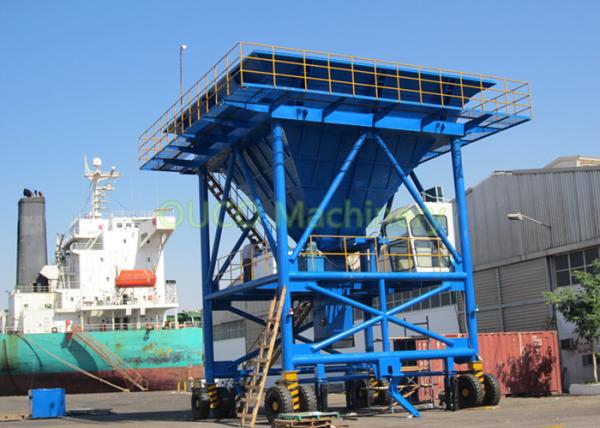

OUCO High Efficiency Belt Conveyor Port Hopper For Coal

Product Description

Eco hopper provides a series of square hoppers to hold a grab capacity of 1 to 37 cubic meters. Each hopper size has a corresponding high or low level frame, depending on the choice of discharge equipment. Because all our standard jumpers follow the same design principles, component modules can be standardized to reduce production period.

Eco dust hopper equipped with a simple and effective dust-proof system to minimize dust flying during grab operating. Hopper is divided into inside and outside, separated by elastic rubber dust isolation device. The main function of the outer hopper is to receive cargoes from grabs.

Product Feature

1. Suitable for discharge by ship mounted or shoreside grab cranes;

2. Robust design ideally suited to cope with the tough conditions encountered in ports;

3. The hoppers are designed to suit the characteristics and flow properties of virtually any bulk material such as:

• Clinker • Copper Concentrates

• Slag• Sulphur

• Gypsum• Biomass (Woodchip etc.)

• Limestone• Bentonite

• Iron Ore• Nickel Ores

• Bauxite• Soda Ash

• Coal• Many Others

Technical Parameters

Particulars Recommendations
Hopper 1 set
Construction Steel
Storage Capacity 2.5 Times Grab Volume(Min.)
Discharge Capacity 750TPH
Top Opening 9000mm * 10000mm(Max.)
Bottom Openging 800mm * 800mm(Min.) * 2 Nos.
Base Plate 10 Thick MS
Liners 8+4 Ultra Plate
Manholes 2 Nos.(Min.)
Travel Assembly 4 Nos. Double Wheel Solid Rubber Tyre Bogies
Drop Legs & Pads 4 Nos.
Side Sheeting 3600mm * 10000mm * 2 Sides
Dust Curtain 4000mm * 9000mm * 2 Sides
Safety Handrails All around the sides at all floors
Stairs/Ladder Inbuilt Steel Structure For All Floors


Genernal Arrangement

Coal Unloading Hopper High Safety Strong Structure Low Power Consumption

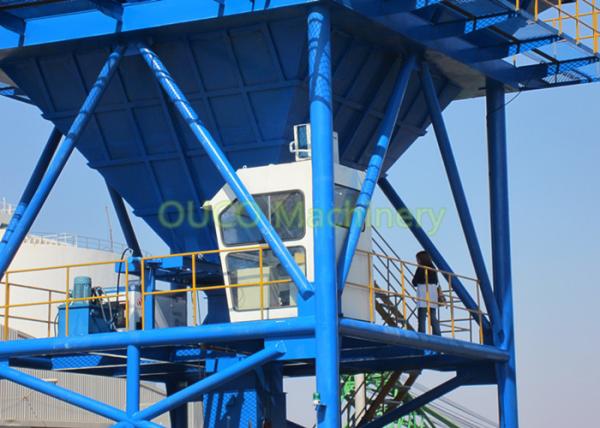

Product Details

Coal Unloading Hopper High Safety Strong Structure Low Power Consumption

Coal Unloading Hopper High Safety Strong Structure Low Power Consumption

FAQ

We can provide GA for you with below information you give to us.

1. The volume & max. opening of your grabs
2. If need storing or not.
3. The volume of the hopper
4. The type of hopper? Simple hopper or dust catching hopper.
5. Movable with wheels or fixed ?
6. Which type of loading under the hopper?
a. If truck loading, please inform the height of the trucks.
b. If conveyor belt loading, please inform the height/width/speed of the conveyor belt.
c. If bagging, please inform the size of the bags.
7. If you have other special requirements, please also tell us clearly.
