Specifications
Brand Name :
OUCO
Model Number :
OUCO-EH-100
Certification :
Manufacturer certificate
Place of Origin :
JIANGSU
MOQ :
1
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50 sets per year
Delivery Time :
2 months
Packaging Details :
Shipping Container/Wood Crate/nude
Material :
Steel structure
Density :
1.0~1.8t/CBM
Weight :
85t
Color :
As request
After sales service :
Engineers available overseas
Application :
Unloading bulk cargoes
Handling material :
Wood pellets
Used location :
Port
Description

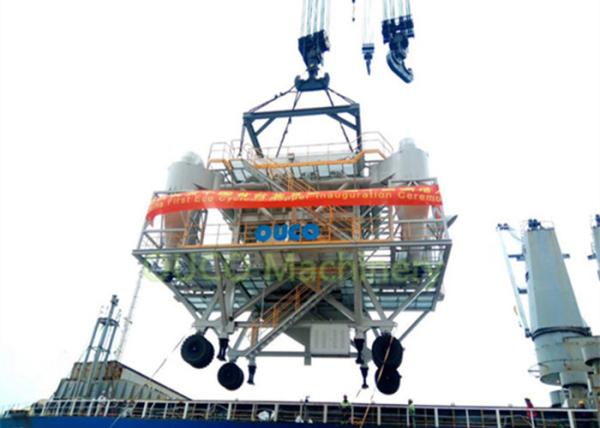

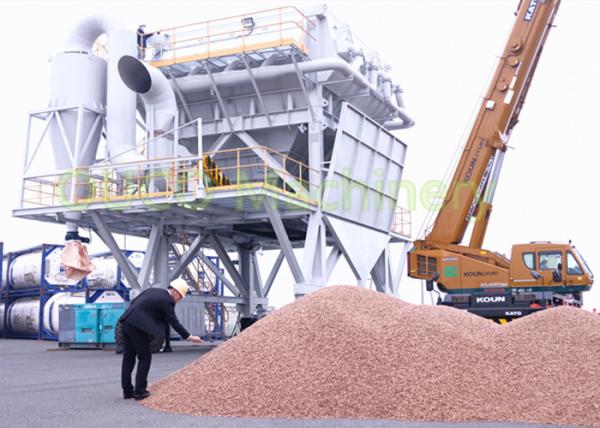

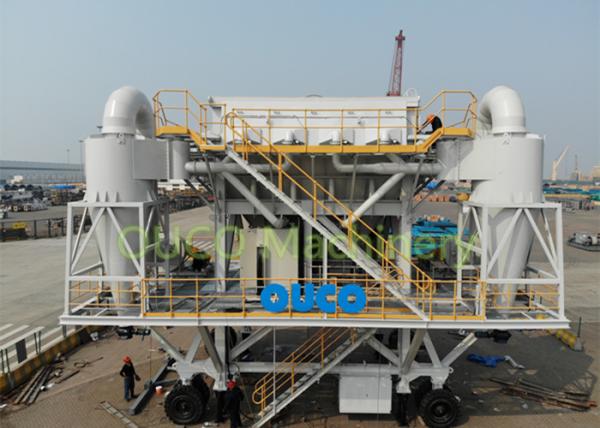

Eco Hopper in port discharging wood pellet material handling to truck

Product Description

We offer a wide range of services including:

  • Application advice
  • Conceptual plant layout
  • Plant selection and specification
  • Supervision of installation
  • Commissioning
  • Advice on maintenance programmes
  • Rebuilding and refurbishment
  • Genuine spare parts
  • Service contract

Eco dust proof hopper is an economical, environmentally friendly dust discharge hopper, suitable for handling a variety of dry bulk materials. Such as gypsum, cement clinker, slag, sulfur, nickel ore, iron ore, fine copper mine, coal, bentonite, soda ash, limestone and so on.

Genernal Arrangement

Eco Hopper in port discharging wood pellet material handling to truck

Technical Specification

Load capacity 400t/h
Volume of hopper 40CBM
Motor of hydraulic station 1.5Kw 440V
Size of steel grating 400mm*400mm
Total power 105Kw
Specification of dust catcher 15w*2
Specification of dust catcher 7.5Kw*2
Full load capacity of hopper 40t
Suitable place To truck

Working system for dust control

This is a simple mechanical system that has angled steel plates and vertically hanging rubber flaps. The system works as follows .. .
• Product dropped from Grab, passes through a grid by opening or pushing aside the vertical flaps and flowing over the
angled plates.
•Once product has passed through, the flaps fall back into their closed position.
• The displaced air volume within the hopper tries to escape, bringing with it dust, but once it reaches the flex-flap system the grid is sealed and so works as a non-return valve.

Eco Hopper in port discharging wood pellet material handling to truck

Wheel-mounted with towing system
