ZPS024 IP67 Rated DC5-24V Magnetic Proximity Sensor Digital Transducer Switch with S/N Pole Wires
ZPS024 IP67 Rated DC5-24V Magnetic Proximity Sensor Digital Transducer Switch with S/N Pole Wires
ZPS024 IP67 Rated DC5-24V Magnetic Proximity Sensor Digital Transducer Switch with S/N Pole Wires
ZPS024 IP67 Rated DC5-24V Magnetic Proximity Sensor Digital Transducer Switch with S/N Pole Wires
ZPS024 IP67 Rated DC5-24V Magnetic Proximity Sensor Digital Transducer Switch with S/N Pole Wires
ZPS024 IP67 Rated DC5-24V Magnetic Proximity Sensor Digital Transducer Switch with S/N Pole Wires
ZPS024 IP67 Rated DC5-24V Magnetic Proximity Sensor Digital Transducer Switch with S/N Pole Wires
ZPS024 IP67 Rated DC5-24V Magnetic Proximity Sensor Digital Transducer Switch with S/N Pole Wires
ZPS024 IP67 Rated DC5-24V Magnetic Proximity Sensor Digital Transducer Switch with S/N Pole Wires
ZPS024 IP67 Rated DC5-24V Magnetic Proximity Sensor Digital Transducer Switch with S/N Pole Wires
ZPS024 IP67 Rated DC5-24V Magnetic Proximity Sensor Digital Transducer Switch with S/N Pole Wires
ZPS024 IP67 Rated DC5-24V Magnetic Proximity Sensor Digital Transducer Switch with S/N Pole Wires
Specifications
Current consumption :
15mA MAX
Machine Type :
Punching Machine, Milling Machine, lathe machine, Grinding Machine, Drilling Machine
Supply Voltage :
DC5~24V
MOQ :
1 piece
warranty :
1 Year
Price :
$57.30-62.30 / piece
weight (kg) :
0.5
Output current :
12mA MAX
Brand Name :
Makinopc
Magnetic detection direction :
Forward
Shell material :
Glass fiber reinforced resin: black
Protection class :
IP67
Indicator light :
Red color
Detection Poles :
ZPS024-S: S pole; ZPS024-N: N pole
Magnetic sensitivity :
2.5~3.5mT
Place of Origin :
Guangdong, China
Response time :
5μ sec
Description
Products Description

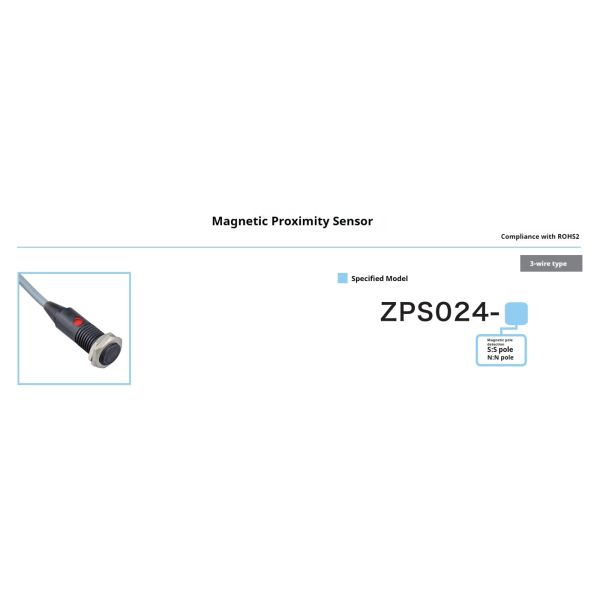

Makinopc Factory Direct Supply DC5V 24V Magnetic Proximity Sensor Switch with Red Indicator Light ZPS024

Key Features

●Magnetic proximity sensors are sensors that operate ON and OFF according to changes in the strength of the magnetic field. ●The operating principle is the Hall principle, which detects the magnetic field according to its polarity, and the standard detection pole is the S pole. ●Because of the short response time (5μsec or less), it can also be used for tachometers and speedometers. ●Compared with general proximity sensors, it is characterized by high sensitivity, large detection distance, and small size. ●Can perform both home position and over-travel detection of servo mechanisms with only one dual sensor. ●Strong resistance to electromagnetic interference and high reliability.
Product Paramenters
Supply Voltage
DC5～24V
Detection Poles
ZPS024-S: S pole
ZPS024-N: N pole
Magnetic sensitivity
2.5～3.5mT
Magnetic detection direction
Forward

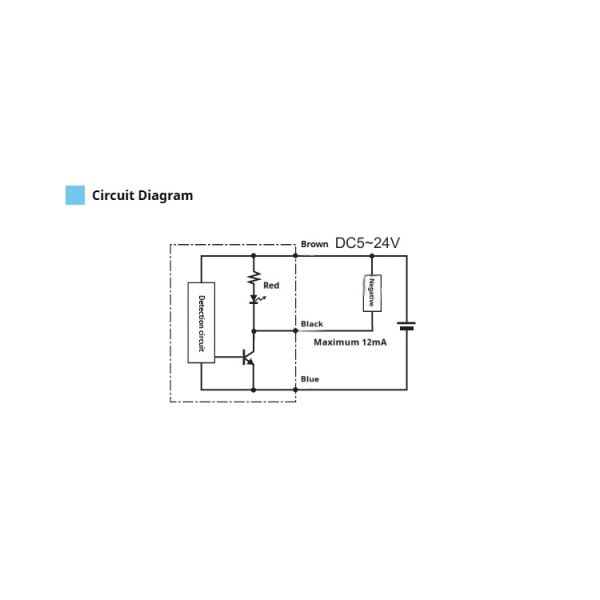

Output mode
NPN normally open (ON when close)
Output current
12mA MAX
Current consumption
15mA MAX
Response time
5μ sec
Withstanding Voltage
AC1000V
Insulation resistance
(1 minute, between the whole charging part and the case)
DC250V
(20MΩ or more, between the whole charging part and the case)
Operating Ambient Temperature
-20℃～+85℃ (no condensation)
Humidity
20～95%RH
Wire Specification
φ2.8×1m
S pole: Gray
N-pole: Black
Shell material
Glass fiber reinforced resin: black

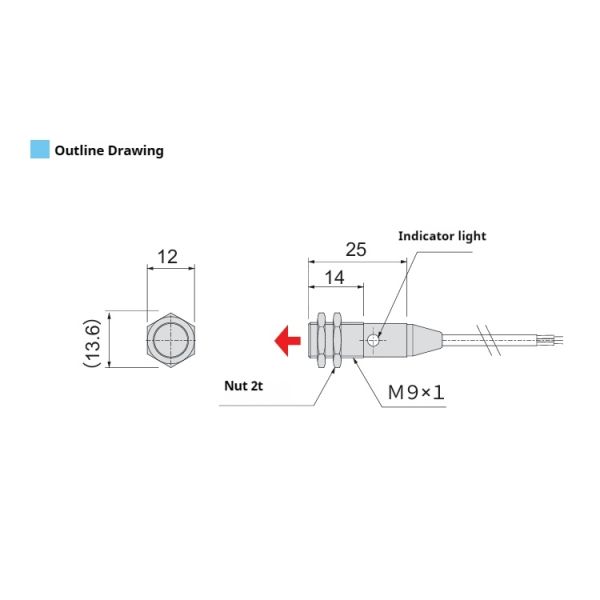

Installation
M9 nut Tightening torque 0.5N-m
It is recommended to prevent loosening by using an adhesive or the like.
Mounting aperture processing size
φ9 +0.5 / 0
Indicator light
Red color
Protection Class
IP67
※Output conversion and current increase can be realized by wire attachment.
Details Images
ZPS024 IP67 Rated DC5-24V Magnetic Proximity Sensor Digital Transducer Switch with S/N Pole Wires
ZPS024 IP67 Rated DC5-24V Magnetic Proximity Sensor Digital Transducer Switch with S/N Pole Wires
ZPS024 IP67 Rated DC5-24V Magnetic Proximity Sensor Digital Transducer Switch with S/N Pole Wires
※Output conversion and current increase can be realized by wire attachment.
