ZPSM024 High Performance Industrial Magnetic Limit Reed Proximity Sensor Switch with NPN Normally Open Output
ZPSM024 High Performance Industrial Magnetic Limit Reed Proximity Sensor Switch with NPN Normally Open Output
ZPSM024 High Performance Industrial Magnetic Limit Reed Proximity Sensor Switch with NPN Normally Open Output
ZPSM024 High Performance Industrial Magnetic Limit Reed Proximity Sensor Switch with NPN Normally Open Output
ZPSM024 High Performance Industrial Magnetic Limit Reed Proximity Sensor Switch with NPN Normally Open Output
ZPSM024 High Performance Industrial Magnetic Limit Reed Proximity Sensor Switch with NPN Normally Open Output
ZPSM024 High Performance Industrial Magnetic Limit Reed Proximity Sensor Switch with NPN Normally Open Output
ZPSM024 High Performance Industrial Magnetic Limit Reed Proximity Sensor Switch with NPN Normally Open Output
ZPSM024 High Performance Industrial Magnetic Limit Reed Proximity Sensor Switch with NPN Normally Open Output
ZPSM024 High Performance Industrial Magnetic Limit Reed Proximity Sensor Switch with NPN Normally Open Output
ZPSM024 High Performance Industrial Magnetic Limit Reed Proximity Sensor Switch with NPN Normally Open Output
ZPSM024 High Performance Industrial Magnetic Limit Reed Proximity Sensor Switch with NPN Normally Open Output
Specifications
Indicator light :
Red color
Shell material :
Glass fiber reinforced resin: black
Protection class :
IP67
Response time :
5μ sec
Output current :
12mA MAX
weight (kg) :
0.5
Supply Voltage :
DC5~24V
Detection Poles :
ZPSM024 -S: S pole; ZPSM024 -N: N pole
Magnetic detection direction :
Forward
Price :
$5.75-6.58 / piece
Place of Origin :
Guangdong, China
Machine Type :
Punching Machine, Milling Machine, lathe machine, Grinding Machine, Drilling Machine
Current consumption :
15mA MAX
MOQ :
1 piece
Magnetic sensitivity :
2.5~3.5mT
Brand Name :
Maknopc
warranty :
1 Year
Description
Products Description

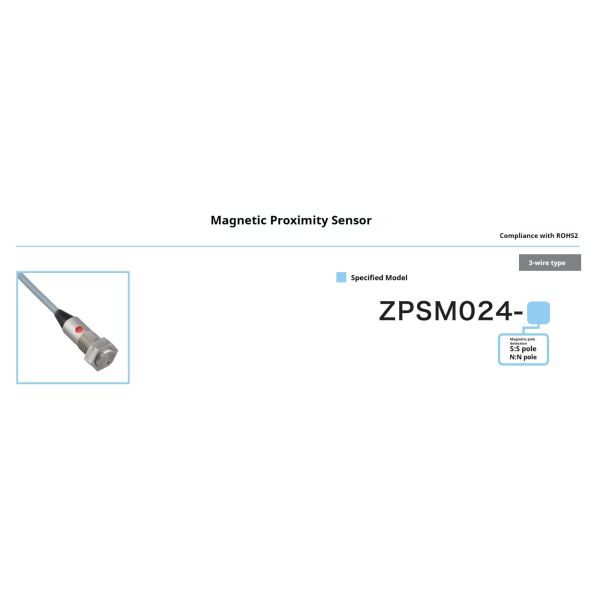

Makinopc's Magnetic proximity sensors are used for non-contact object detection beyond the normal limits of inductive sensors. Our magnetic sensors deliver reliable, accurate data to help control your system.

Key Features

●Magnetic proximity sensors are sensors that operate ON and OFF according to changes in the strength of the magnetic field. ●The operating principle is the Hall principle, which detects the magnetic field according to its polarity, and the standard detection pole is the S pole. ●Because of the short response time (5μsec or less), it can also be used for tachometers and speedometers. ●Compared with general proximity sensors, it is characterized by high sensitivity, large detection distance, and small size. ●Can perform both home position and over-travel detection of servo mechanisms with only one dual sensor. ●Strong resistance to electromagnetic interference and high reliability.
Product Paramenters
Supply Voltage
DC5～24V
Detection Poles
ZPSM024 -S: S pole
ZPSM024 -N: N pole
Magnetic sensitivity
2.5～3.5mT
Magnetic detection direction
Forward

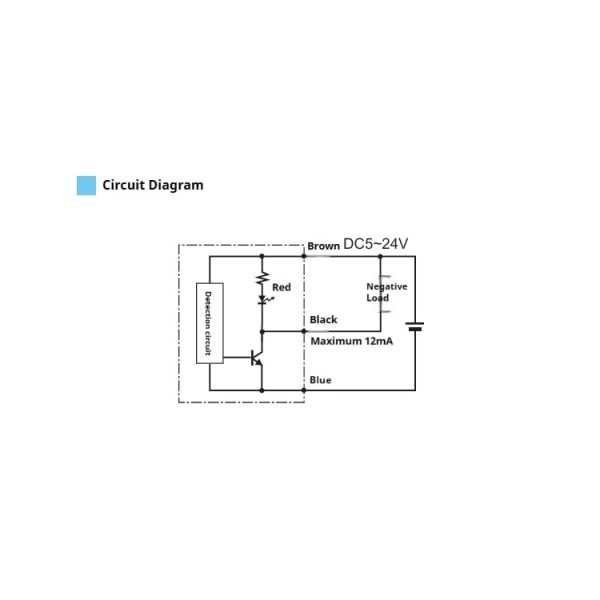

Output mode
NPN normally open (ON when close)
Output current
12mA MAX
Current consumption
15mA MAX
Response time
5μ sec
Withstanding Voltage
AC1000V
(1 minute, between the whole charging part and the case)
Insulation resistance
DC250V
(20MΩ or more, between the whole charging part and the case)
Operating Ambient Temperature
-20℃～+85℃ (no condensation)
Humidity
20～95%RH
Wire Specification
φ2.8×1m
S pole: Gray
N-pole: Black
Shell material
SUS303

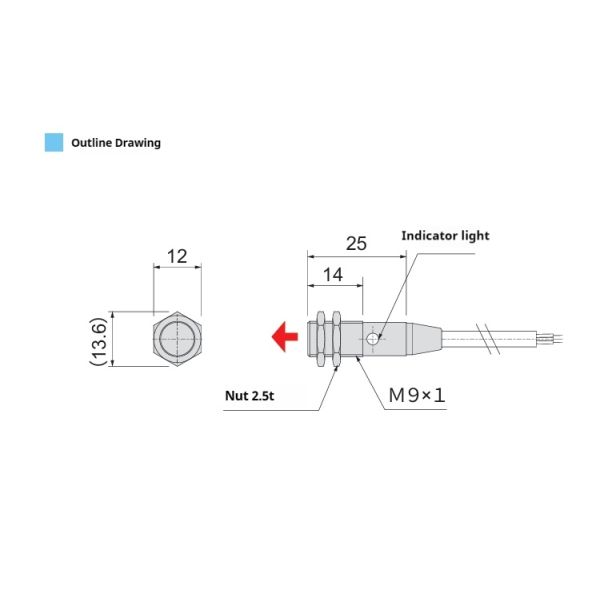

Installation
M9 nut Tightening torque 0.5N-m
It is recommended to prevent loosening by using an adhesive or the like.
Mounting aperture processing size
φ9 +0.5 / 0
Indicator light
Red color
Protection Class
IP67
※Output conversion and current increase can be realized by wire attachment.
Details Images
ZPSM024 High Performance Industrial Magnetic Limit Reed Proximity Sensor Switch with NPN Normally Open Output
ZPSM024 High Performance Industrial Magnetic Limit Reed Proximity Sensor Switch with NPN Normally Open Output
ZPSM024 High Performance Industrial Magnetic Limit Reed Proximity Sensor Switch with NPN Normally Open Output
※Output conversion and current increase can be realized by wire attachment.
Product packaging
We usually use foam board with 3 cm thick to fill in all around the box inside to protect parts. We often use carton to pack the parts, but if it's too heavy, we'll use custom-wooden box to pack it. Package : carton or wooden box Lead time : 1-2 days All products can be shipped around the world via DHL, UPS, FedEx, TNT and more. The package is safe and green. If you have any special needs, please let me know.
ZPSM024 High Performance Industrial Magnetic Limit Reed Proximity Sensor Switch with NPN Normally Open Output
Company Profile
Founded in 2014, Shenzhen Muye Precision Control Electromechanical Co., Ltd. is a service-oriented enterprise integrating R&D, design and sales of CNC numerical control machine tools accessories, and the products currently put on the market mainly include CNC numerical control machine tools with automatic tool setting instrument, electronic handwheels, hand-cranked pulse generators, on-line measuring probes, band switches, spindle encoders, system panels, electronic handwheel accessories supporting programs, and the realization of automatic tool setting installation and debugging solutions. Commissioning solutions, etc. Our factory is located in Songgang, Bao'an District, Shenzhen City, covers an area of more than 3,000 square meters, with 20 professional and technical personnel, 15 sets of testing instruments, two production lines. The production capacity reaches 100,000 units per month. We have exclusive patent design and own brand, and have won many quality certificates. The products are widely used in Fanuc, , Mitsubishi, Fagor, Heidenhain, Bao Yuan, New Generation, HANUC, Guangzhou CNC GSK, open CNC, Kain Emperor KND, Nuoxin, Delta, a variety of PLCs, CNC CNC machining centers, engraving machines, engraving and milling machines, drilling and tapping machines, EDM, milling machines, lathes and so on. The company in line with the "customer first, integrity first" principle with a number of enterprises to establish long-term cooperative relations, warmly welcome friends from all over the world to visit and negotiate business.
ZPSM024 High Performance Industrial Magnetic Limit Reed Proximity Sensor Switch with NPN Normally Open Output
ZPSM024 High Performance Industrial Magnetic Limit Reed Proximity Sensor Switch with NPN Normally Open Output
ZPSM024 High Performance Industrial Magnetic Limit Reed Proximity Sensor Switch with NPN Normally Open Output
Our Advantages
1. We specialize in the field of CNC machine tool accessories and have more than ten years of industry experience. 2. We have our own brand called Makinopc and exclusive patent design and quality certification. 3. We provide you with friendly English user manual or operation video for free. 4. We have 24 hours technical support by email or phone. 5. Warranty: 1 year free warranty, 2-3 years warranty at cost, and always provide free technical support. 6. We have no MOQ limit and accept OEM/ODM bulk orders.
