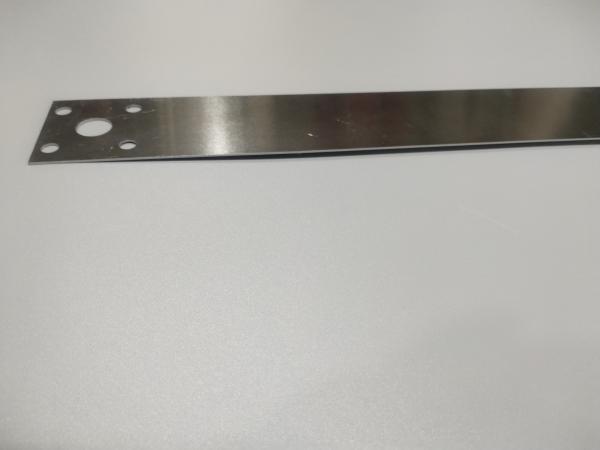

0.3mm Thickness Heater Molybdenum Plate Sheet Customized Shape
0.3mm Thickness Heater Molybdenum Plate Sheet Customized Shape
0.3mm Thickness Heater Molybdenum Plate Sheet Customized Shape
0.3mm Thickness Heater Molybdenum Plate Sheet Customized Shape
0.3mm Thickness Heater Molybdenum Plate Sheet Customized Shape
0.3mm Thickness Heater Molybdenum Plate Sheet Customized Shape
0.3mm Thickness Heater Molybdenum Plate Sheet Customized Shape
0.3mm Thickness Heater Molybdenum Plate Sheet Customized Shape
0.3mm Thickness Heater Molybdenum Plate Sheet Customized Shape
0.3mm Thickness Heater Molybdenum Plate Sheet Customized Shape
0.3mm Thickness Heater Molybdenum Plate Sheet Customized Shape
0.3mm Thickness Heater Molybdenum Plate Sheet Customized Shape
Specifications
Brand Name :
Achemetal
Model Number :
M01
Certification :
ISO14001
Place of Origin :
Henan, China
MOQ :
1pcs
Price :
$10.00-$70.00
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
5000 Kilogram/Kilograms per Month
Delivery Time :
5-15 work days
Packaging Details :
1) inner packed by vacuum plastic bags with lining foam 2) outer packed by cardboard boxes or plywood cases
Hot extensibility :
4%
Dimension(L*W*H) :
Custom size
Keywords :
High Purity Molybdenum Sheet
Colors :
Metallic Silver Luster
lead time :
20-25days
Warranty :
1 Year
Using temperature :
below 1400°C
Grade :
M01
Description

Product Detail

Product Description

We can vacuum anneal and level the molybdenum sheet type. Our plates are cross-rolled and the rolling process focuses on grain size control. As a result, the sheets have very good bending and stamping properties.

0.3mm Thickness Heater Molybdenum Plate Sheet Customized Shape

0.3mm Thickness Heater Molybdenum Plate Sheet Customized Shape

 Specification
THICKNESS WIDTH LENGTH LENGTH
0.2±0.02 500±3.0 1000±5.0 3000±5.0
0.3±0.03 600±3.0 1000±5.0 3000±5.0
0.4±0.03 600±3.0 1000±5.0 3000±5.0
0.5±0.04 600±3.0 1000±5.0 3500±5.0
0.8±0.08 600±3.0 1000±5.0 3500±5.0
1.0±0.06 600±3.0 1000±5.0 3500±5.0
1.5±0.08 650±3.0 1000±5.0 3500±5.0
2.0±0.10 600±3.0 1000±5.0 3000±5.0
3.0—150±0.10 1500±3.0 1000±5.0 3000±5.0

Product information

Our testing for molybdenum sheets
Fe Ni C Al O N
0.004 0.002 0.0028 0.0005 0.005 0.002
Si Ca Mg Cd Sb Sn
0.0013 < 0.001 < 0.0005 < 0.001 < 0.0005 < 0.0005
P Cu Pb Bi Mo
< 0.001 < 0.0005 < 0.0005 < 0.0005 >99.95%

Production Process

0.3mm Thickness Heater Molybdenum Plate Sheet Customized Shape

Application

0.3mm Thickness Heater Molybdenum Plate Sheet Customized Shape

Is widely used in production of sapphire crystal growth furnace reflective screen, cover board, reflective screen in a vacuum furnace, tropical, fittings, plasma deposition sputtering target material, high temperature resistant boat and other products.

Packing & Delivery

0.3mm Thickness Heater Molybdenum Plate Sheet Customized Shape
