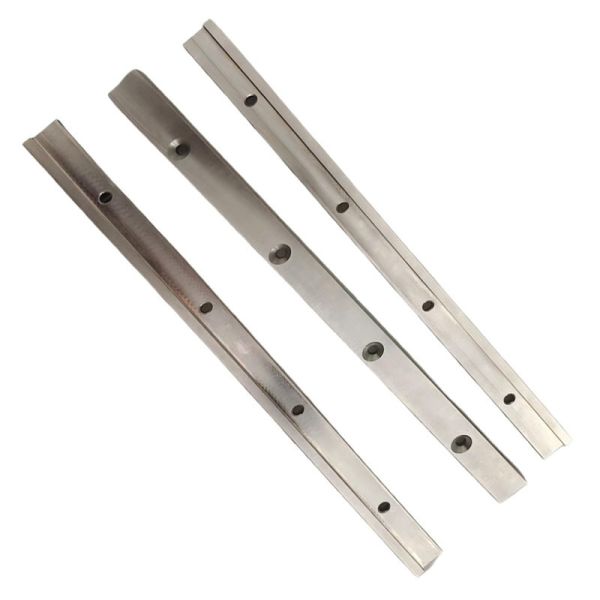

Custom Swiss CNC Milling Parts for Medical Applications with ±0.002~0.005mm Tolerance and ISO9001 Certification
Custom Swiss CNC Milling Parts for Medical Applications with ±0.002~0.005mm Tolerance and ISO9001 Certification
Custom Swiss CNC Milling Parts for Medical Applications with ±0.002~0.005mm Tolerance and ISO9001 Certification
Custom Swiss CNC Milling Parts for Medical Applications with ±0.002~0.005mm Tolerance and ISO9001 Certification
Specifications
Brand Name :
IMission
Model Number :
ODM and OEM
Certification :
ISO9001
Place of Origin :
China
MOQ :
I PC
Price :
0.1~5USD
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
10000pcs per month
Delivery Time :
7~35 working days
Packaging Details :
Bubble and Carton or Customization
Material :
Aluminum
Weight :
0.1-10kg
Key Word :
CNC Milling Parts
Shipping Method :
Express, Air, Sea, Etc.
Product Process :
CNC Milling
Our Service :
24 Hours Online
Feature :
Durable And High Precision
Drawing :
IGES(igs), STEP(stp), SolidWorks (sodprt), PRT, AutoCad,or Samples
Surface Finishing :
Polishing, Grinding, Anodize, Oxide, Laser, Engrave, Painting, Powder Coating, Hardness, etc.
Processing :
CNC, Turning, Milling, Auto Lathe, Grinding, Stamping, Laser Cutting, Welding, 3D printing, Die Casting, Injection,etc.
Material Available :
Aluminum, Copper (Brass), Stainless Steel, Steel, Acetal, ABS, PVDF, PVC, Titanium,Etc.
Highlight :
ISO9001 Certified CNC Milling Parts，100% Inspection CNC Machined Parts，3D Printing Precision Milled Components
Description
Custom Swiss Milling Service for Medical Parts
CNC Milling Parts Specifications
Place of Origin China
Brand Name iMission
Material Aluminum
Size Support design
Color Material Color or Customized
Thickness 0.5-20.0mm or Customized
Processing CNC Milling
Certificate ISO9001
MOQ 1 PC
Lead time 7-35 Working Days
Precision +/-0.002~0.005mm
Packaging and Delivery
Packaging Bubble and Carton or Customization
Port Shenzhen
Custom Swiss CNC Milling Parts for Medical Applications with ±0.002~0.005mm Tolerance and ISO9001 Certification
CNC Milling Parts Key Features
  • Exceptional Precision & Tolerance Control: Achieve tight dimensional tolerances down to ±0.005mm with consistent geometries across batch production
  • Versatile Material Compatibility: Process aluminum alloys, stainless steel, titanium, brass, engineering plastics and composite materials
  • Complex Geometry Machining: Create intricate 3D contours, deep pockets, internal threads, and custom cavities
Manufacturing Capabilities & Equipment
CNC Milling Equipment Portfolio
Machine Type Axis Configuration Table Size (mm) Positioning Accuracy Repeatability Spindle Power/Speed Unique Capabilities
3-Axis Vertical X, Y, Z 500×400 to 1500×800 ±0.005mm ±0.003mm 7.5-22kW, 8,000-24,000 RPM Heavy material removal, deep cavities
4-Axis with Rotary X, Y, Z, A 400×400 to 800×600 ±0.008mm ±0.005mm 10-15kW, 12,000-20,000 RPM Continuous indexing, cylindrical features
5-Axis Simultaneous X, Y, Z, A, B/C 500×500 to 1200×800 ±0.01mm ±0.006mm 12-30kW, 10,000-30,000 RPM Complex 3D contours, undercuts, compound angles
5-Axis Gantry X, Y, Z, A, C 2000×1000 to 5000×2500 ±0.015mm ±0.008mm 18-40kW, 6,000-15,000 RPM Large part machining, molds, aerospace structures
High-Speed Machining 3/5-Axis 400×400 to 800×600 ±0.005mm ±0.002mm 15-25kW, 20,000-60,000 RPM Aluminum, plastics, graphite, fine details
Technical Parameters & Tolerances
Standard Machining Tolerances: ±0.025mm to ±0.10mm
Precision Machining Capability: ±0.005mm (with process control)
Ultra-Precision Machining: ±0.002mm (for critical features)
Surface Finish Range:
• As-machined: Ra 1.6μm to Ra 3.2μm
• Fine machining: Ra 0.4μm to Ra 1.6μm
• Micro-machining: Ra 0.1μm to Ra 0.4μm (with post-processing)
Geometric Tolerancing:
• Flatness/Straightness: 0.01mm per 100mm
• Parallelism/Perpendicularity: 0.015mm per 100mm
• True Position: 0.01mm (with precision tooling)
Maximum Part Dimensions:
• Standard 5-axis: 800mm × 600mm × 500mm
• Gantry machines: 5000mm × 2500mm × 1500mm
• Weight capacity: Up to 10,000kg on largest machines
Custom Swiss CNC Milling Parts for Medical Applications with ±0.002~0.005mm Tolerance and ISO9001 Certification Custom Swiss CNC Milling Parts for Medical Applications with ±0.002~0.005mm Tolerance and ISO9001 Certification Custom Swiss CNC Milling Parts for Medical Applications with ±0.002~0.005mm Tolerance and ISO9001 Certification

Target Industries & Applications

A. Aerospace & Defense

Components: Fasteners, fittings, bushings, spacers, hydraulic parts

Materials: Titanium, high-strength aluminum, corrosion-resistant steels

Standards: AS9100, NADCAP (supplemental), MIL specifications

B. Medical & Dental

Components: Surgical instruments, implantable components, device housings

Materials: 316L stainless, titanium, PEEK, cobalt-chrome

Requirements: Biocompatibility, cleanroom manufacturing, full traceability

C. Automotive & Motorsports

Components: Engine parts, transmission components, fuel system parts, fittings

Materials: Various steels, aluminum, brass, exotic alloys for racing

Capabilities: High-volume production, lean manufacturing, JIT delivery

D. Electronics & Semiconductor

Components: Connector pins, shielding components, heat sinks, spacers

Materials: Copper alloys, aluminum, conductive plastics

Precision Requirements: Often ±0.005mm or tighter, micron-level finishes

E. Fluid Power & Hydraulics

Components: Valve bodies, fittings, manifolds, pistons, cylinders

Materials: Carbon steel, stainless, brass, aluminum

Critical Aspects: Pressure integrity, sealing surfaces, thread quality
