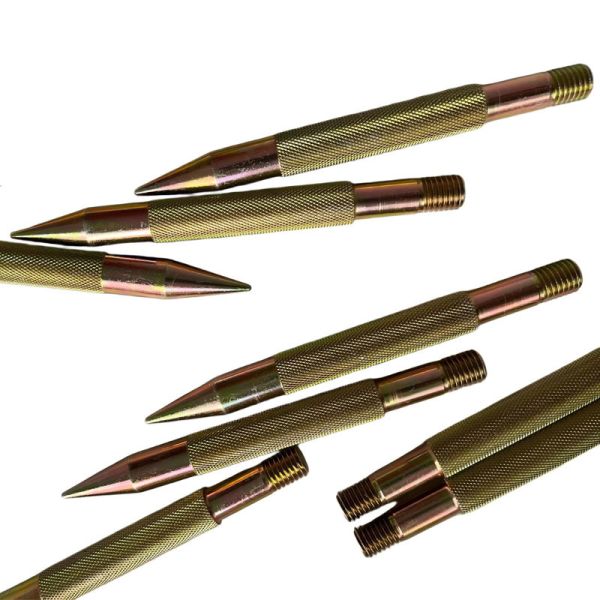

CNC Turning Milled Copper EDM Electrode & Small Batch CNC Turning Milling Parts
CNC Turning Milled Copper EDM Electrode & Small Batch CNC Turning Milling Parts
CNC Turning Milled Copper EDM Electrode & Small Batch CNC Turning Milling Parts
CNC Turning Milled Copper EDM Electrode & Small Batch CNC Turning Milling Parts
CNC Turning Milled Copper EDM Electrode & Small Batch CNC Turning Milling Parts
CNC Turning Milled Copper EDM Electrode & Small Batch CNC Turning Milling Parts
Specifications
Brand Name :
IMission
Model Number :
CNC Turning Milling
Certification :
ISO9001
Place of Origin :
China
MOQ :
I PC
Price :
0.1~5USD
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
10000pcs per month
Delivery Time :
7~35 working days
Packaging Details :
Bubble and Carton or Customization
Material :
Brass
Weight :
0.1-8kg
Service :
OEM or ODM
Key Word :
CNC Turning Milling Parts
Shipping Method :
Express, Air, Sea, Etc.
Product Process :
CNC Turning Milling
Quality :
100% Inspection
Our Service :
24 Hours Online
Feature :
Durable And High Precision
Surface Finishing :
Anodizing, Plating, Polishing, Etc
Processing :
CNC Machining, CNC Milling, CNC Turning,Stamping...
Drawing :
IGES(igs), STEP(stp), SolidWorks (sodprt), PRT, AutoCad,PDF or Samples
Highlight :
ISO9001 Certified CNC Milling Parts，100% Inspection CNC Machined Parts
Description
CNC Turning Milled Copper EDM Electrode and Small Batch CNC Turning Milling Parts

CNC Turning Milling Parts Specifications
Product Name CNC Turning Milling Parts
Material Available Brass
Processing CNC Turning Milling
Tolerance ±0.002~0.005mm
Drawing Accepted IGES(igs), STEP(stp), SolidWorks (sodprt), PRT, AutoCad, or Samples
Inspection CMM, Projector, Height Gauge, etc.
Lead Time 7~35 working days
Quality Assurance ISO9001:2015, SGS, RoHs
Payment Term MoneyGram, Western Union, T/T, D/P, D/A, L/C
Price According to your drawing or requirements
Packaging and Delivery
Packaging Bubble and Carton or Customization
Port Shenzhen
CNC Turning Milled Copper EDM Electrode & Small Batch CNC Turning Milling Parts
CNC Turning Milling Parts Features

CNC turning-milling parts feature one-step machining precision, minimal setup errors, and support for complex geometries including both rotational and prismatic features. With tight dimensional tolerances, smooth surface finishes, and excellent batch consistency, they suit fast-paced production demands while maintaining high quality

Manufacturing Capabilities & Specifications

A. Equipment Specifications

Machine Type

Axis Configuration

Maximum Dimensions

Tolerance Capability

Special Features

Swiss-Type Lathes

5-13 axis

Ø32mm × 300mm

±0.005mm

Simultaneous machining, live tooling, backworking

Multi-Axis Turning Centers

6-9 axis

Ø250mm × 500mm

±0.01mm

B-axis milling, Y-axis capability, sub-spindle

CNC Lathes

2-4 axis

Ø600mm × 1000mm

±0.02mm

Hydraulic chucking, bar feeders, part catchers

Turn-Mill Centers

7+ axis

Ø150mm × 400mm

±0.008mm

Complete part processing in single setup

B. Technical Parameters

Standard Tolerance Range: ±0.01mm to ±0.05mm

Fine Tolerance Capability: ±0.005mm (for critical dimensions)

Surface Finish: Ra 0.4μm to Ra 3.2μm (standard)

Ultra-Finish Options: Ra 0.1μm achievable with polishing/burnishing

Geometric Tolerances:

Concentricity: 0.005mm

Cylindricity: 0.008mm

True Position: 0.01mm

Thread Machining Capabilities:

Metric/Unified/Whitworth threads

ACME, trapezoidal, and special forms

Single-point threading up to 64 TPI

Thread rolling capabilities

3. Material Expertise

A. Metals & Alloys

Material Category

Specific Grades

Machinability Rating

Typical Applications

Aluminum Alloys

6061, 7075, 2024, 5083

Excellent

Aerospace, automotive, electronics

Stainless Steels

303, 304, 316, 17-4PH, 416

Good to Fair

Medical, marine, chemical processing

Carbon & Alloy Steels

1018, 1045, 4140, 4340

Excellent

Industrial machinery, automotive

Tool Steels

D2, A2, O1, S7

Fair to Difficult

Molds, dies, tooling components

Copper Alloys

C360, C464, C17200, C10100

Excellent

Electrical, plumbing, marine

Exotic Alloys

Titanium (Gr2, Gr5), Inconel, Monel

Difficult

Aerospace, medical implants

Magnesium Alloys

AZ31B, AZ91D

Excellent (with precautions)

Aerospace, portable devices

B. Non-Metallic Materials

Engineering Plastics: PEEK, Delrin/Acetal, Nylon, PTFE, POM

Composites: Carbon fiber reinforced, fiberglass composites

Special Materials: Ceramics (machinable grades), graphite, engineered woods

CNC Turning Milled Copper EDM Electrode & Small Batch CNC Turning Milling Parts
CNC Turning Milled Copper EDM Electrode & Small Batch CNC Turning Milling Parts CNC Turning Milled Copper EDM Electrode & Small Batch CNC Turning Milling Parts
Target Industries & Applications
Aerospace & Defense
Components: Structural frames, brackets, housings, turbine components, fittings
Materials: Aluminum (2024, 7075), titanium, Inconel, high-strength steels
Standards: AS9100, NADCAP (machining), MIL specifications, customer-specific
Critical Requirements: Fatigue resistance, weight optimization, documentation, traceability
Medical & Life Sciences
Components: Surgical instruments, implantable devices, diagnostic equipment, prosthetics
Materials: 316L stainless, titanium (Grade 5, 23), PEEK, cobalt-chrome
Requirements: Biocompatibility, cleanroom manufacturing, sterilization compatibility
Regulations: FDA compliance, ISO 13485, USP Class VI testing where applicable
Automotive & Motorsports
Components: Engine parts, transmission housings, suspension components, brackets
Materials: Aluminum, various steels, brass, magnesium (racing)
Production Volumes: Prototype to high-volume (10,000+ parts)
Special Capabilities: JIT delivery, kanban systems, production line support
Electronics & Semiconductor
Components: Enclosures, heat sinks, wafer handling, test fixtures, connector bodies
Materials: Aluminum, copper, engineering plastics, composites
Precision Requirements: Often ±0.005mm or better, micron-level flatness
Cleanliness: ESD-safe materials, particulate control, specialized cleaning
Industrial Machinery & Automation
Components: Machine frames, brackets, guides, robotic components, fixture
Materials: Carbon steel, aluminum, stainless, cast iron
Requirements: Wear resistance, dimensional stability, rigidity
Capabilities: Large part machining, weldment preparation, assembly interfaces

Design Support & Engineering Services

A. Design for Manufacturing (DFM) Analysis

Manufacturability Review: Identification of potential production issues

Cost Reduction Analysis: Alternative approaches, material optimization

Tolerance Analysis: Statistical tolerance stacking, specification review

Fixture/Tooling Design: Custom workholding solutions for complex parts

Process Optimization: Sequencing, tool selection, cycle time reduction

B. CAD/CAM Capabilities

CAD Software: SolidWorks, CATIA, UG/NX, Autodesk Inventor, AutoCAD

CAM Software: Mastercam, HyperMILL, PowerMILL, CATIA, UG/NX

Simulation: Virtual machining verification, collision detection, material removal simulation

Reverse Engineering: 3D scanning (laser, structured light) to CAD model conversion

Prototyping: Rapid prototyping support via 3D printing for design validation

C. Specialized Engineering Services

Finite Element Analysis: Stress, thermal, modal analysis for component optimization

Fluid Dynamics: Flow analysis for manifolds, fluid system components

Thermal Analysis: Heat sink performance, thermal management solutions

Drafting & Documentation: Creation of manufacturing drawings, GD&T application
