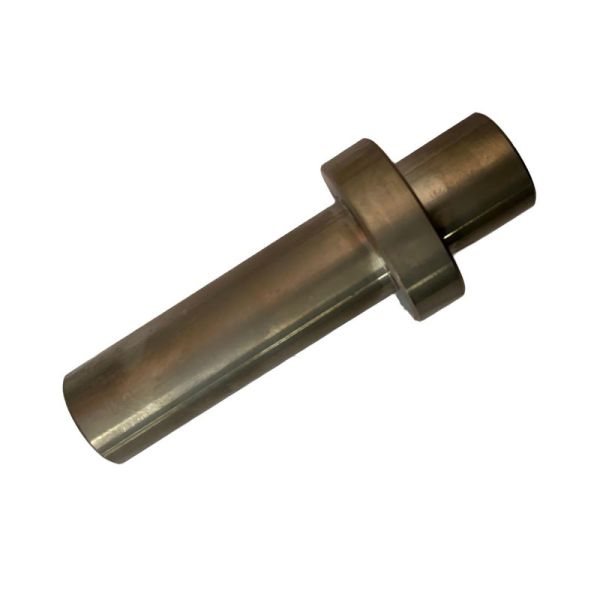

Heat Treated Shafts CNC Turning Milling Parts with ±0.002~0.005mm Tolerance and ISO9001 Certification
Heat Treated Shafts CNC Turning Milling Parts with ±0.002~0.005mm Tolerance and ISO9001 Certification
Heat Treated Shafts CNC Turning Milling Parts with ±0.002~0.005mm Tolerance and ISO9001 Certification
Heat Treated Shafts CNC Turning Milling Parts with ±0.002~0.005mm Tolerance and ISO9001 Certification
Specifications
Brand Name :
IMission
Model Number :
CNC Turning Milling
Certification :
ISO9001
Place of Origin :
China
MOQ :
I PC
Price :
0.1~5USD
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
10000pcs per month
Delivery Time :
7~35 working days
Packaging Details :
Bubble and Carton or Customization
Material :
Steel
Weight :
0.1-8kg
Service :
OEM or ODM
Key Word :
CNC Turning Milling Parts
Shipping Method :
Express, Air, Sea, Etc.
Product Process :
CNC Turning Milling
Quality :
100% Inspection
Our Service :
24 Hours Online
Feature :
Durable And High Precision
Surface Finishing :
Anodizing, Plating, Polishing, Etc
Processing :
CNC Machining, CNC Milling, CNC Turning,Stamping...
Drawing :
IGES(igs), STEP(stp), SolidWorks (sodprt), PRT, AutoCad,PDF or Samples
Highlight :
ISO9001 Certified CNC Milling Parts，100% Inspection CNC Machined Parts
Description
CNC Turning and Milling Compoents with Heat Treated Shafts
CNC Turning Milling Parts Specifications
Product Name CNC Turning Milling Parts
Material Available Steel
Processing CNC Turning Milling
Tolerance ±0.002~0.005mm
Drawing Accepted IGES(igs), STEP(stp), SolidWorks (sodprt), PRT, AutoCad, or Samples
Inspection CMM, Projector, Height Gauge, etc.
Lead Time 7~35 working days
Quality Assurance ISO9001:2015, SGS, RoHs
Payment Term MoneyGram, Western Union, T/T, D/P, D/A, L/C
Price According to your drawing or requirements
Packaging and Delivery
Packaging Bubble and Carton or Customization
Port Shenzhen
Heat Treated Shafts CNC Turning Milling Parts with ±0.002~0.005mm Tolerance and ISO9001 Certification
CNC Turning Milling Parts Features

CNC turning-milling parts integrate the dual advantages of turning and milling processes, delivering exceptional precision, dimensional stability and structural complexity. Capable of completing turning, drilling, tapping, milling and other multi-step operations in a single setup, these parts minimize clamping errors and boost production efficiency significantly. They are widely applied in manufacturing high-precision components for automotive, aerospace, precision instrumentation and other industries, perfectly meeting the rigorous performance requirements of sophisticated mechanical systems.

Manufacturing Capabilities & Specifications
Equipment Specifications
Machine Type Axis Configuration Maximum Dimensions Tolerance Capability Special Features
Swiss-Type Lathes 5-13 axis Ø32mm × 300mm ±0.005mm Simultaneous machining, live tooling, backworking
Multi-Axis Turning Centers 6-9 axis Ø250mm × 500mm ±0.01mm B-axis milling, Y-axis capability, sub-spindle
CNC Lathes 2-4 axis Ø600mm × 1000mm ±0.02mm Hydraulic chucking, bar feeders, part catchers
Turn-Mill Centers 7+ axis Ø150mm × 400mm ±0.008mm Complete part processing in single setup
Technical Parameters
  • Standard Tolerance Range: ±0.01mm to ±0.05mm
  • Fine Tolerance Capability: ±0.005mm (for critical dimensions)
  • Surface Finish: Ra 0.4μm to Ra 3.2μm (standard)
  • Ultra-Finish Options: Ra 0.1μm achievable with polishing/burnishing
  • Geometric Tolerances: Concentricity: 0.005mm, Cylindricity: 0.008mm, True Position: 0.01mm
  • Thread Machining Capabilities: Metric/Unified/Whitworth threads, ACME, trapezoidal, and special forms, Single-point threading up to 64 TPI, Thread rolling capabilities
Material Expertise
Metals & Alloys
Material Category Specific Grades Machinability Rating Typical Applications
Aluminum Alloys 6061, 7075, 2024, 5083 Excellent Aerospace, automotive, electronics
Stainless Steels 303, 304, 316, 17-4PH, 416 Good to Fair Medical, marine, chemical processing
Carbon & Alloy Steels 1018, 1045, 4140, 4340 Excellent Industrial machinery, automotive
Tool Steels D2, A2, O1, S7 Fair to Difficult Molds, dies, tooling components
Copper Alloys C360, C464, C17200, C10100 Excellent Electrical, plumbing, marine
Exotic Alloys Titanium (Gr2, Gr5), Inconel, Monel Difficult Aerospace, medical implants
Magnesium Alloys AZ31B, AZ91D Excellent (with precautions) Aerospace, portable devices
Non-Metallic Materials
  • Engineering Plastics: PEEK, Delrin/Acetal, Nylon, PTFE, POM
  • Composites: Carbon fiber reinforced, fiberglass composites
  • Special Materials: Ceramics (machinable grades), graphite, engineered woods
Heat Treated Shafts CNC Turning Milling Parts with ±0.002~0.005mm Tolerance and ISO9001 Certification Heat Treated Shafts CNC Turning Milling Parts with ±0.002~0.005mm Tolerance and ISO9001 Certification Heat Treated Shafts CNC Turning Milling Parts with ±0.002~0.005mm Tolerance and ISO9001 Certification

Ordering Process & Lead Times

A. Standard Process Flow

RFQ Submission: Drawings (PDF/DWG), 3D models (STEP/IGES), specifications

Engineering Review: DFM analysis, material recommendation, process planning (24-48 hour response)

Quotation: Detailed pricing including tooling, setup, and piece price

Prototype Phase (if required): Sample production with inspection report

Production Approval: Process validation, inspection plan approval

Manufacturing: Scheduled production with milestone updates

Final Inspection: Complete FAIR or inspection report

Delivery: Packaged per requirements, shipping with tracking

B. Lead Time Guidelines

Order Type

Typical Lead Time

Notes

Prototype/Samples

5-10 business days

Standard materials, simple geometries

Low Volume (1-100 pcs)

10-20 business days

Includes setup and first article inspection

Medium Volume (100-1,000 pcs)

3-4 weeks

Batch production with process optimization

High Volume (1,000+ pcs)

4-8 weeks

Dedicated production runs, tooling optimization

Expedited Services

50-100% premium

Available for urgent requirements

8. Customization & Special Capabilities

A. Complex Geometries

Eccentric Features: Off-center turning, cam profiles

Micro-Machining: Parts as small as Ø0.5mm with features to 0.05mm

Thin-Wall Components: Walls as thin as 0.1mm with proper support

Deep Hole Drilling: Up to 20× diameter depth with gun drilling equipment

Contoured Surfaces: Programmable radius forms, complex profiles

B. Special Processes

Hard Turning: Machining of hardened materials (45-65 HRC)

Polygon Turning: Non-circular forms, hex shapes, special profiles

Burnishing: Diamond or roller burnishing for superior surface finish

Knurling: Straight, diagonal, and diamond patterns

Part Marking: Laser engraving, dot peen marking, serialization

9. Packaging & Logistics

A. Packaging Options

Standard: Poly bags with labeled partitions in shipping cartons

ESD-Safe: Anti-static packaging for electronic components

Cleanroom: Double-bagged, particulate-controlled for medical/aerospace

VCI Protection: Volatile corrosion inhibitor packaging for ferrous metals

Custom: Foam inserts, vacuum sealing, desiccant packs as required

B. Shipping & Logistics

Export Documentation: Commercial invoice, packing list, certificate of origin

International Compliance: REACH, RoHS, conflict mineral documentation

Global Shipping: Relationships with major carriers (DHL, FedEx, UPS)

Inventory Management: Consignment stock, kanban systems, bonded warehousing
