Complex 3D Steel Prototype with 5-Axis CNC Milling Service for Precision Milled Parts at ±0.002~0.005mm Tolerance
Complex 3D Steel Prototype with 5-Axis CNC Milling Service for Precision Milled Parts at ±0.002~0.005mm Tolerance
Complex 3D Steel Prototype with 5-Axis CNC Milling Service for Precision Milled Parts at ±0.002~0.005mm Tolerance
Complex 3D Steel Prototype with 5-Axis CNC Milling Service for Precision Milled Parts at ±0.002~0.005mm Tolerance
Specifications
Brand Name :
IMission
Model Number :
ODM and OEM
Certification :
ISO9001
Place of Origin :
China
MOQ :
I PC
Price :
0.1~5USD
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
10000pcs per month
Delivery Time :
7~35 working days
Packaging Details :
Bubble and Carton or Customization
Material :
Steel
Weight :
0.1-10kg
Key Word :
CNC Milling Parts
Shipping Method :
Express, Air, Sea, Etc.
Feature :
Durable And High Precision
Processing :
CNC, Turning, Milling, Auto Lathe, Grinding, Stamping, Laser Cutting, Welding, 3D printing, Die Casting, Injection,etc.
Surface Finishing :
Polishing, Grinding, Anodize, Oxide, Laser, Engrave, Painting, Powder Coating, Hardness, etc.
Material Available :
Aluminum, Copper (Brass), Stainless Steel, Steel, Acetal, ABS, PVDF, PVC, Titanium,Etc.
Highlight :
ISO9001 Certified CNC Milling Parts，100% Inspection CNC Machined Parts，3D Printing Precision Milled Components
Description

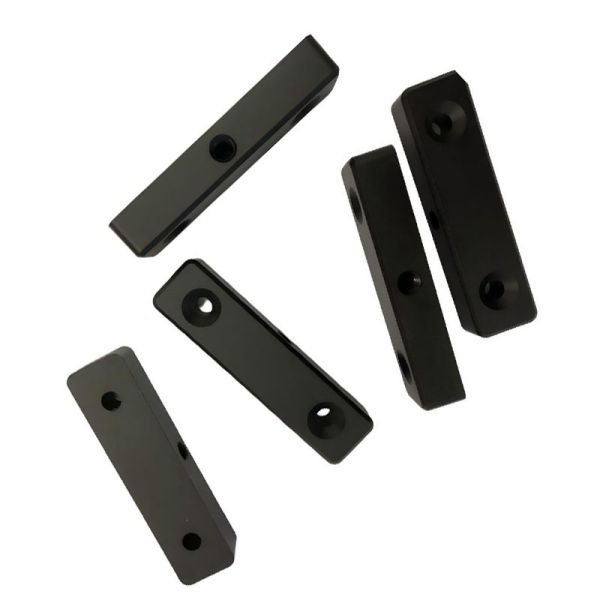

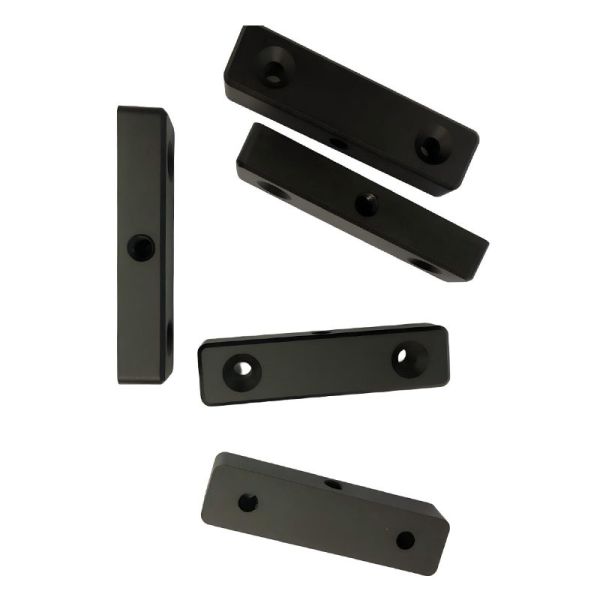

Complex 3D Steel Prototype | 5-Axis CNC Milling Service
High-precision CNC milling parts manufactured using advanced 5-axis machining technology for complex steel prototypes and production components.
CNC Milling Parts Specifications
Product NameCNC Milling Parts
Material AvailableSteel
Surface FinishBlack Oxidation
ProcessingCNC Milling
Tolerance±0.002~0.005mm
Drawing AcceptedIGES(igs), STEP(stp), SolidWorks (sodprt), PRT, AutoCad, or Samples
InspectionCMM, Projector, Height Gauge, etc.
Lead Time7~35 working days
Quality AssuranceISO9001:2015, SGS, RoHs
Payment TermMoneyGram, Western Union, T/T, D/P, D/A, L/C
PriceAccording to your drawing or requirements
Engineer SupportAvailable for engineering assistance and drawings design
Packaging and Delivery
PackagingBubble and Carton or Customization
PortShenzhen
Complex 3D Steel Prototype with 5-Axis CNC Milling Service for Precision Milled Parts at ±0.002~0.005mm Tolerance
CNC Milling Parts Key Features
CNC milling parts feature high precision and excellent surface finish. They can meet tight tolerance requirements and realize complex structural shapes. With stable quality and customizable design, they are suitable for various materials and widely used in industrial production.
Milling Processes & Special Operations
Core Milling Operations
  • Face Milling: Large surface area finishing, squaring operations
  • Peripheral Milling: Slotting, profiling, contour machining
  • Pocket Milling: Shallow and deep pocketing, cavity creation
  • Contour Milling: 2D and 3D surface profiling
  • Drilling/Tapping: Precision hole making, thread creation
  • Boring: High-precision hole sizing and finishing
  • Thread Milling: Internal and external thread creation
Advanced Machining Techniques
TechniqueDescriptionApplicationsBenefits
High-Speed MachiningHigh spindle speeds with reduced chip loadsAluminum, graphite, plasticsReduced cycle times, improved surface finish
Hard MillingMachining materials >45 HRC directlyTool steels, hardened steelsEliminates EDM, better surface integrity
Trochoidal MillingConstant engagement circular tool pathsDeep slots, difficult materialsReduced tool wear, higher material removal
Micro-MillingSmall tools (<1mm diameter)Medical devices, micro-optics, electronicsPrecision small features, fine details
5-Axis SimultaneousContinuous tool orientation controlTurbine blades, impellers, complex geometriesSingle setup completion, complex contours
Tooling & Cutting Technology
  • Tool Materials: Carbide (various grades), CBN, PCD, diamond-coated, HSS
  • Tool Holding Systems: HSK, BT, CAT with hydraulic, thermal, or mechanical clamping
  • Cutting Tool Types: End mills (flat, ball, corner radius), face mills, slot cutters, drills, taps
  • Coolant Systems: High-pressure through-spindle (70-200 bar), minimum quantity lubrication, cryogenic options
  • Tool Management: Presetters, in-machine probing, automatic tool changers (30-200+ tools)
Complex 3D Steel Prototype with 5-Axis CNC Milling Service for Precision Milled Parts at ±0.002~0.005mm Tolerance Complex 3D Steel Prototype with 5-Axis CNC Milling Service for Precision Milled Parts at ±0.002~0.005mm Tolerance Complex 3D Steel Prototype with 5-Axis CNC Milling Service for Precision Milled Parts at ±0.002~0.005mm Tolerance
Available Surface Finishes
Comprehensive post-processing services to ensure part corrosion resistance, aesthetics, and specific functionality:
  • Plating: Zinc Plating, Nickel Plating, Chrome Plating, Tin Plating
  • Coating: Powder Coating, Spray Painting, E-Coating
  • Chemical Treatment: Anodizing (for Aluminum), Passivation (for Stainless Steel), Black Oxide
  • Mechanical Treatment: Polishing, Brushing, Deburring
Quality Control
Full-process quality control system implementation:
  • Certification: ISO 9001:2015 Quality Management System Certified
  • Inspection Equipment: CMM, Optical Comparators, Calipers, Micrometers, Salt Spray Test Chambers, Hardness Testers
  • Process Control: Full-process monitoring from Incoming Quality Control (IQC), In-Process Quality Control (IPQC) to Final Outgoing Quality Control (OQC)
  • Documentation Support: PPAP (Production Part Approval Process), FAI (First Article Inspection) Reports, Material Certificates
Our Working Process
  • Inquiry & Consultation: Provide drawings (DXF/DWG/STEP/IGS), samples, or detailed requirements
  • Design & Quotation: Engineering team conducts DFM analysis and provides detailed solution with competitive quote
  • Tooling Development: Precision die design and manufacturing upon order confirmation
  • Sample Approval: First article samples provided for testing and approval
  • Mass Production: Automated mass production after sample approval
  • QC & Delivery: Final inspection, professional packaging, and scheduled shipment
Why Choose Us?
  • Expert Engineering Support: Free DFM advice to optimize your design for cost savings
  • Rapid Response: 24-hour inquiry reply, fast prototyping (typically 7-15 days)
  • Flexible Customization: Full OEM/ODM support, manufacturing strictly to your specifications
  • Global Supply Experience: Products exported to North America, Europe, Asia, familiar with international standards and logistics
Packaging & Shipping
Packaging: Standard export packaging options include blister trays, bubble bags, EPE foam, cartons, and wooden crates to ensure parts are free from wear and deformation during transit.
Shipping: Support various trade terms (FOB, CIF, DDP, etc.). Global shipping via sea freight, air freight, or express couriers (DHL, FedEx, etc.).
