1. Gabion Product Line Introduction

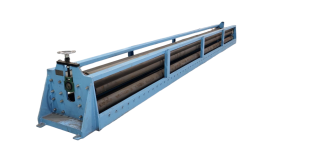

The SLW‑58A 5‑axis linkage CNC gabion mesh weaving machine is a high‑performance core hexagonal mesh weaving equipment developed for water‑conservancy wire‑mesh manufacturing. It can independently produce blank sheets for gabion boxes and slope‑protection mesh rolls. It supports standalone operation or flexible connection with downstream auxiliary machines to build flexible processing workstation.

Manufactured by Anping Weaver Wire Mesh Equipment in Hebei, drawing on decades‑long local wire‑mesh equipment R&D experience. Built with strict industrial‑grade quality standards. Besides standard configuration, both hardware and software can be customized for different production conditions. It delivers reliable weaving core equipment for global mesh fabricators. Produced hexagonal mesh blanks satisfy raw‑material demands for water‑conservancy, transportation infrastructure, municipal landscape and soil‑ecology restoration projects. Automated workflow reduces manual intervention and improves plant‑wide automation level.

2. Key Technical Features of Main Machine

Equipped with 5‑set coordinated servo drive system with real‑time motion compensation, which mitigates mechanical impact during high‑speed weaving, improves mesh uniformity and slows wearing of consumable parts. It adopts XINJE PLC & HMI touch screen plus self‑developed control software, supporting multi‑language UI, production‑data export and process interlock. Auto central lubrication system and take‑up shaft are supplied as standard for long‑hour non‑stop production.

Multiple mesh sizes including 60×80mm, 80×100mm, 100×120mm are available, special width is customizable. Twist length 40‑70mm is set via HMI touch panel. It supports triple‑twist, five‑twist, long‑twist and short‑twist modes. Max applicable galvanized wire diameter reaches 4mm. Overall dimension:9.8m×1.32m×3.46m, net weight 19.5T, power supply 380V. Hourly output exceeds 1000 ㎡, supplying qualified hexagonal gabion blanks for selvedging, cutting and winding processes.

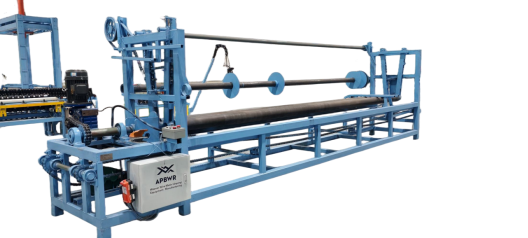

3. Optional Auxiliary Workstation Units

Standard reserved mechanical & signal interfaces allow customers to add auxiliary units step‑by‑step according to order situation and budget, without full‑set one‑time investment.

SUPPORTING EQUIPMENT III

4. Core Competitive Advantages

1. Servo Synchronous Control for Stable Quality: Real‑time 5‑axis servo compensation guarantees uniform mesh opening & twist angle, lower reject rate for mass‑volume production.
2. User‑Friendly Intelligent HMI: Multi‑language color touch‑screen, visual parameter adjustment. Built‑in fault logging & traceback for fast on‑site troubleshooting.
3. Strong Continuous‑Run Performance: Optimized for two‑shift factory operation. Standard auto lubrication reduces component wear and ensures on‑schedule order delivery.
4. Modular & Scalable Solution: Stand‑alone production or step‑by‑step capacity expansion, fit for progressive investment of small‑and‑medium manufacturers.
5. Comprehensive Safety Protection: Emergency stop, overload, electric‑leakage and limit interlock protections safeguard operators and machine.

5. Main Application Fields

Finished hexagonal gabion mesh blanks serve various infrastructure projects: ‑ River & Hydraulic Engineering: Raw mesh for river revetment and flood‑control dike; ‑ Transportation Infrastructure: Slope‑protection mesh for highway & railway subgrade and hillside stabilization; ‑ Ecological Restoration: Mesh for soil‑erosion control and river eco‑treatment; ‑ Municipal Landscape: Raw sheets for landscape gabion retaining wall and gardening eco‑grid.

6. Supply Scope & Technical Service

Delivery includes standard tool kit, operation manual, electrical drawings, maintenance handbook and vulnerable‑part list. Pre‑shipment full‑machine commissioning & simulation test are completed in‑house before delivery. 12‑month warranty is provided. 24‑hour online technical support and long‑term genuine spare‑parts supply solve on‑site technical issues for customers.
