High Output Gabion Production Line 4M Automatic Edge Folding Machine
High Output Gabion Production Line 4M Automatic Edge Folding Machine
High Output Gabion Production Line 4M Automatic Edge Folding Machine
High Output Gabion Production Line 4M Automatic Edge Folding Machine
High Output Gabion Production Line 4M Automatic Edge Folding Machine
High Output Gabion Production Line 4M Automatic Edge Folding Machine
High Output Gabion Production Line 4M Automatic Edge Folding Machine
High Output Gabion Production Line 4M Automatic Edge Folding Machine
Specifications
Brand Name :
APBWR
Model Number :
Golden Cyclone-4000
Place of Origin :
CHINA
MOQ :
1 UNIT
Certification :
ISO9001
Price :
$5000-50000
Supply Ability :
1000+ /year
Delivery Time :
14-21DAYS
Packaging Details :
Pallets or wooden crates as per customer's requirements.
Product Name :
4M Automatic Edge Folding Machine
Woking Width :
4000mm
Wire diameter range :
≤3mm
Crimping Angle :
Forward Rotation: 306°–720° ; Reverse Rotation: 180°–360
Production Speed :
10 pieces/minute
Mortor :
7.5KW
Dimension :
5500mm*1200mm*1300mm
Net weight :
2.5T
Keyword :
Automatic Edge Folding Machine
Description

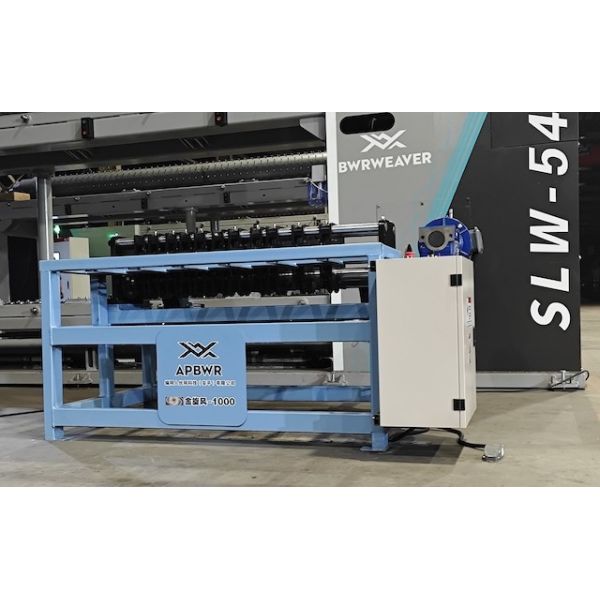

4M Automatic Edge Folding Machine

1.Edge Folding Machine Key Components:

1. Frame Assembly: Robust load-bearing structure providing foundational support.

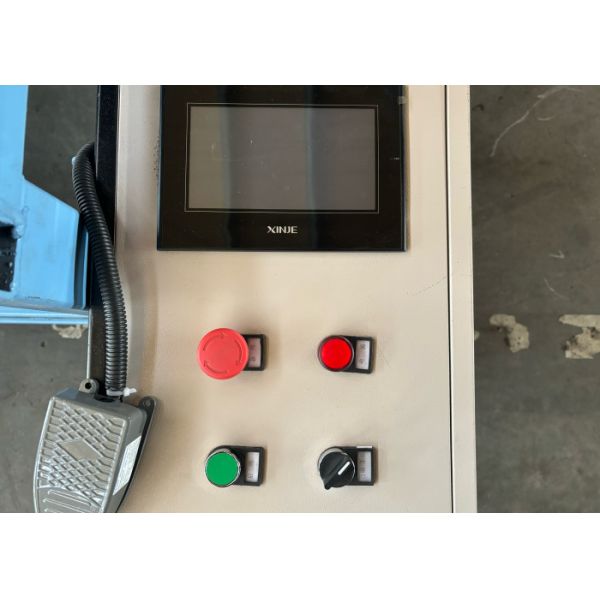

2.Electrical Cabinet: Centralized control unit for system operations.

3.Material Feeding Mechanism: Automated system delivering mesh sheets into the workstation.

4.Mesh Pressing Unit: Hydraulic/pneumatic clamps securing materials during processing.

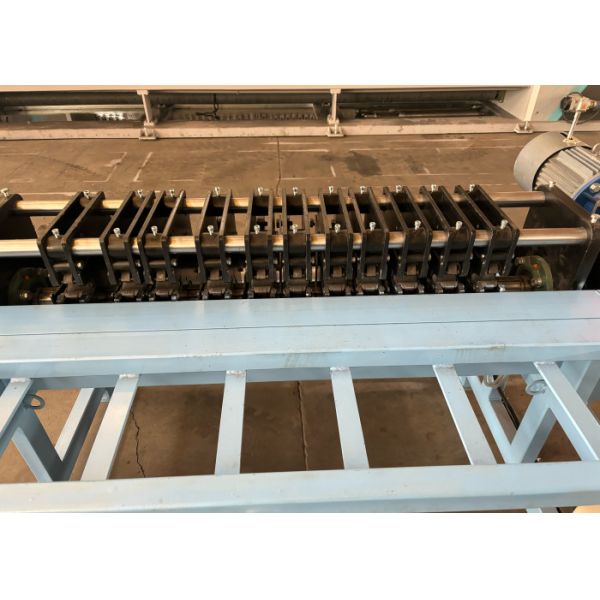

5.Rolling Mechanism: Precision rollers forming and finishing the beaded edges.

2. Edge Folding Machine Working Process:

1. Material Loading: Automated feeding positions metal sheets.

2. Clamping & Alignment: Hydraulic systems secure and center the workpiece.

3. Edge Folding: Precision rollers form uniform folds (adjustable angle/depth).

4. Quality Check; Sensors verify dimensional accuracy.

5. Unloading: Finished parts are ejected for stacking.

3.Edge Folding Machine Technical Specifications:

Wire Diameter: ≤3mm

Mesh Sizes: Adjustable (e.g., 60x80 mm to 130x160 mm).

Production Speed: folding 10 pieces of mesh per minute, depending on the model and complexity of the product.

Motor Power: 7.5kw

Crimping Angle: Forward Rotation: 306°–720° , Reverse Rotation: 180°–360°

4. Edge Folding Machine Key Features:

High Automation: Reduces manual intervention and boosts production efficiency through automated operation.

Precision Crimping: Ensures uniform and secure edge crimping for consistent product quality.

Material Versatility: Processes various mesh materials/specifications (e.g., galvanized iron wire, PVC-coated iron wire).

User-Friendly Interface: Intuitive controls enable easy and quick operation.

Durability: Built with premium materials to withstand prolonged heavy-duty use.

Edge Folding Machine Parameter Configuration Table
1 Standard weaving width 4000mm
2 Wire diameter range ≤3mm
3 Crimping Angle - Forward Rotation: 306°–720°
- Reverse Rotation: 180°–360
4 Speed 10 pieces/minute
5 Durability Constructed with premium materials to withstand prolonged heavy-duty use.
6 Motor Power 7.5KW
7 Automatic pause system ✔yes □no
8 Dimensions (length * width * height) 5500mm*1200mm*1300mm
9 Net weight 2.5T

Notes:

  • Customization: Parameters are adjustable based on client requirements.
  • Application: Specifically designed for gabion mesh production to reinforce edge stability.
  • Material Compatibility: Processes various mesh materials and specifications.

Edge Folding Machine Advantages
1 High Automation Reduces manual intervention and boosts production efficiency through automated operation.
2 Precision Crimping Ensures uniform and secure edge crimping for consistent product quality.
3 Material Versatility Processes various mesh materials/specifications (e.g., galvanized iron wire, PVC-coated iron wire).
4 User-Friendly Interface Intuitive controls enable easy adjustments and quick operation.
5 Durability Constructed with premium materials to withstand prolonged heavy-duty use.
