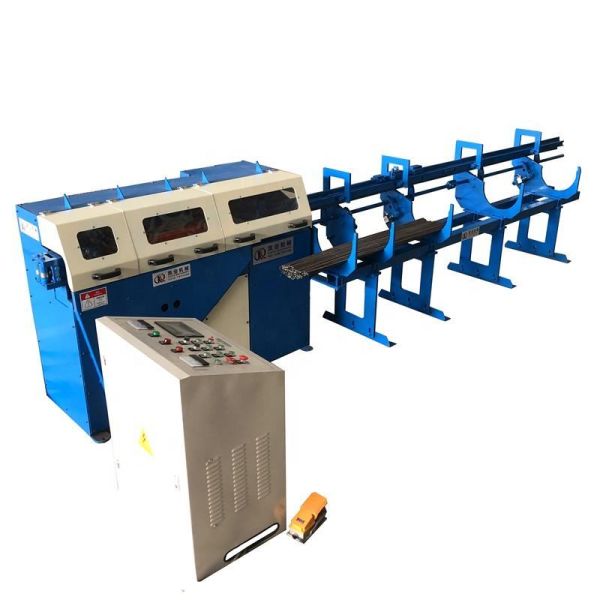

4M Mesh Cutting Folding Machine

1.Mesh Cutting Folding Machine Components:

1. Rack Section: Heavy-duty steel structure designed for stability and vibration resisitance during high-speed operations.

2.Electrical Cabinet: Equipped with a touchscreen interface for programming and cutting parameters (width, speed, patterns) and monitoring real-time performance.

3.Wire Feeding Mechanism: Automatically uncoils and straightens wires (≤5mm diameter) using motorized rollers.

4.Pressing Mechanism : Hydraulic/pneumatic clamps securing materials during processing. Adjustable clamping force prevents material slippage and ensures burr-free edges.

5.Rolling Mechanism: Speed-synchronized with the cutting unit to maintain continuous production flow.

2. Edge Folding Machine Working Process:

1. Material Loading: Wires or mesh panels are fed into the machine via conveyor or manual placement. .

2. Parameter Setup: Operators input cutting width, speed, and pattern using the CNC interface.

3. Precision Cutting: Laser-guided blades execute cuts within ±0.3mm tolerance, minimizing waste.

4. Quality Check: Integrated sensors verify dimensions and edge quality in real time.

5. Output & Stacking: Finished panels are ejected onto a conveyor for packaging or further processing.

3.Edge Folding Machine Technical Specifications:

Wire Diameter Capacity: ≤5mm

Cutting Width: 4000mm (1m/2m/3m/4m available on request)

Production Speed: folding 10 pieces of mesh per minute, depending on the model and complexity of the product.

Motor Power: 7.5kw

4. Edge Folding Machine Key Features:

Modular Design: Swap cutting heads and dies in minutes to handle different materials (e.g., stainless steel, PVC-coated wire) and mesh sizes.

Smart CNC System: Auto-adjusts cutting parameters based on material thickness and hardness.

Energy Efficiency: 20% lower power consumption compared to traditional models, with energy-saving servo motors.

Remote Maintenance: Real-time diagnostics and remote troubleshooting minimize downtime.
