60L Capacity Horizontal Nano Bead Mill / Sand Mill With PU Or Ceramic Material Structure
60L Capacity Horizontal Nano Bead Mill / Sand Mill With PU Or Ceramic Material Structure
60L Capacity Horizontal Nano Bead Mill / Sand Mill With PU Or Ceramic Material Structure
60L Capacity Horizontal Nano Bead Mill / Sand Mill With PU Or Ceramic Material Structure
60L Capacity Horizontal Nano Bead Mill / Sand Mill With PU Or Ceramic Material Structure
60L Capacity Horizontal Nano Bead Mill / Sand Mill With PU Or Ceramic Material Structure
60L Capacity Horizontal Nano Bead Mill / Sand Mill With PU Or Ceramic Material Structure
60L Capacity Horizontal Nano Bead Mill / Sand Mill With PU Or Ceramic Material Structure
Specifications
Brand Name :
LTD
Model Number :
LTD60N
Certification :
CE,ISO
Place of Origin :
Dongguan,China
MOQ :
1set
Payment Terms :
T/T
Supply Ability :
20-30 sets per month
Delivery Time :
25-30 days
Packaging Details :
wooden case
Price :
USD47550-72700/set
Name :
Nano horizontal bead mill
Outer chamber material :
Stainless steel 304
Inner tube material :
Silicon carbide
Rotor and pins material :
Ceramic/PU
Discharge separator :
Wear-resistant stainless steel
Mechanical seal :
Burgmann from Germany
Grinding capacity :
60Litrs
Motor power :
75kw
Power supply :
380V 50Hz 3Phase (can be customized)
Packing :
Wooden case
Color :
Accept customer's request
Description

LTD-N Series 60L capacity nano horizontal sand mill / bead mill with PU or Ceramic material structure

1.Features:
Grinding fineness: 50nm~1μm
Zirconium beads size: 0.2nm~2.0mm
Suitable viscosity: ≤5000CPS
Suitable materials: oil-based and water-based
Rotor material: wear-resistant steel/tungsten carbide/silicon carbide/zirconia/polyurethane
2.Application:
Suitable for nano pigment,ceramic inks,magnetic materials,aluminum materials,electronic paste,zirconium
silicate materials,thermal transfer inkjet inks,lithium iron phosphate,pharmaceuticals,cosmetics,non-metallic
mineral powder and other new materials.
3.Standard configuration:
1)Outer chamber:Stainless steel 304
2)Inner tube:Sic ( silicon carbide)

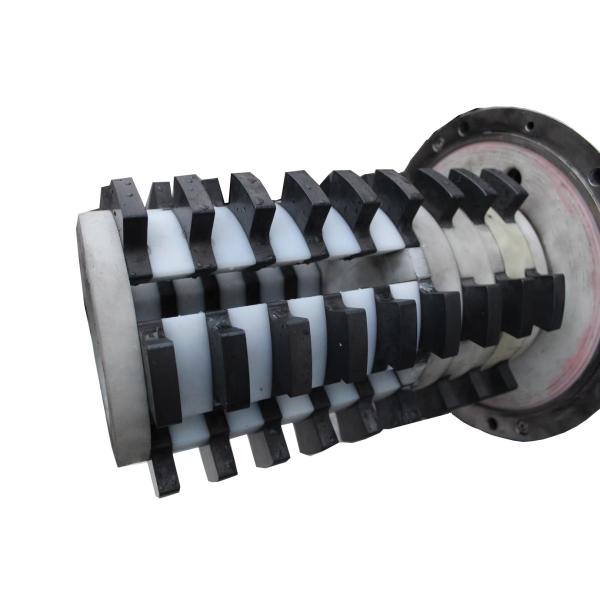

3)Rotor and pins: ZrO2(ceramic) for solvent based products

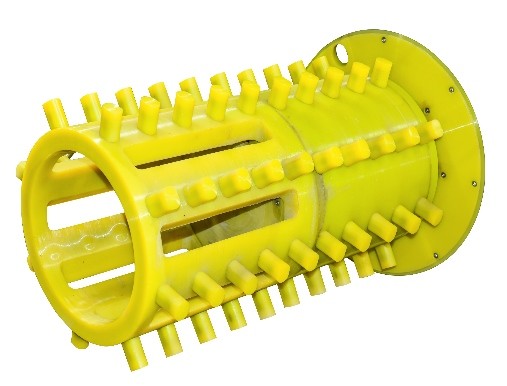

4)Rotor and pins: PU (polyurethane) for water based products
5)Discharge sieve screen filter:Wear-resistant stainless steel
6)Mechanical seal:Burgmann from Germany
4.Technical Parameters:
Model
Chamber capacity(L)
Motor power(Kw)
Production capacity(L/h)
Media size(mm)
Weight(Kg)
Overall dimensions(mm)
LTD03N
3
15
6
0.2-2.0
430
1150*710*1600
LTD06N
6
15
15
0.2-2.0
500
1300*980*1600
LTD10N
10
22
25
0.2-2.0
1300
1430*860*1780
LTD30N
30
45
70
0.2-2.0
1800
1830*950*1850
LTD60N
60
75
150
0.2-2.0
3500
2230*1050*2200
LTD100N
100
110
200
0.2-2.0
4800
2700*1320*2560
LTD150N
150
160
350
0.2-2.0
6500
2900*1400*2600
LTD300N
300
315
600
0.2-2.0
8500
3300*1750*2880
LTD500N
500
400
900
0.2-2.0
9500
3550*1780*3050
LTD1000N
1000
690
1600
0.2-2.0
11500
3700*1800*3100

Grinding process

60L Capacity Horizontal Nano Bead Mill / Sand Mill With PU Or Ceramic Material Structure

Structure classification of Horizontal Sand Mill
60L Capacity Horizontal Nano Bead Mill / Sand Mill With PU Or Ceramic Material Structure
Material classification of Horizontal Sand Mill Spare Parts
60L Capacity Horizontal Nano Bead Mill / Sand Mill With PU Or Ceramic Material Structure
Real photos:

60L Capacity Horizontal Nano Bead Mill / Sand Mill With PU Or Ceramic Material Structure

60L Capacity Horizontal Nano Bead Mill / Sand Mill With PU Or Ceramic Material Structure

60L Capacity Horizontal Nano Bead Mill / Sand Mill With PU Or Ceramic Material Structure

60L Capacity Horizontal Nano Bead Mill / Sand Mill With PU Or Ceramic Material Structure

60L Capacity Horizontal Nano Bead Mill / Sand Mill With PU Or Ceramic Material Structure

Working videos:





Industry

60L Capacity Horizontal Nano Bead Mill / Sand Mill With PU Or Ceramic Material Structure

60L Capacity Horizontal Nano Bead Mill / Sand Mill With PU Or Ceramic Material Structure

Our factory

60L Capacity Horizontal Nano Bead Mill / Sand Mill With PU Or Ceramic Material Structure

60L Capacity Horizontal Nano Bead Mill / Sand Mill With PU Or Ceramic Material Structure

60L Capacity Horizontal Nano Bead Mill / Sand Mill With PU Or Ceramic Material Structure

60L Capacity Horizontal Nano Bead Mill / Sand Mill With PU Or Ceramic Material Structure

60L Capacity Horizontal Nano Bead Mill / Sand Mill With PU Or Ceramic Material Structure

Our certificate

60L Capacity Horizontal Nano Bead Mill / Sand Mill With PU Or Ceramic Material Structure

Customer's case

60L Capacity Horizontal Nano Bead Mill / Sand Mill With PU Or Ceramic Material Structure

Support and Services:

Product Technical Support and Services:

- Comprehensive technical support for installation, operation, and maintenance

- Troubleshooting assistance for any issues or malfunctions

- Guidance on optimizing the performance of the equipment

- Training programs for operators to ensure proper usage and maximize efficiency

Packing and Shipping:

Product Packaging:

The machine is carefully packaged in a wooden case to ensure safe transportation. The product is securely wrapped in bubble wrap to prevent any damage during shipping.

Shipping:

Orders are typically processed within 1-2 business days. Once shipped, you will receive a tracking number to monitor the delivery status of your sand mill/bead mill product. We partner with reliable shipping carriers to ensure timely delivery to your doorstep.

FAQ:

Q: What is a sand mill/bead mill?

A: A sand mill/bead mill is a grinding machine used to reduce particle size by agitating beads in a liquid medium.

Q: What are the typical applications of a sand mill/bead mill?

A: Sand mills/bead mills are commonly used in industries such as paint, ink, coatings, and pigments for wet grinding and dispersion of materials.

Q: How does a sand mill/bead mill work?

A: In a sand mill/bead mill, the grinding chamber contains small beads that are agitated by a rotating shaft, causing the beads to collide and break particles down to the desired size.

Q: What are the advantages of using a sand mill/bead mill?

A: Some advantages of sand mills/bead mills include efficient particle size reduction, uniform particle distribution, and the ability to process a wide range of materials.

Q: How to choose the right sand mill/bead mill for my application?

A: When selecting a sand mill/bead mill, factors such as the desired particle size, material viscosity, production capacity, and required fineness should be considered to ensure optimal performance for your specific application.
