Stainless Steel Nano Bead Mill 3L Capacity Horizontal Bead Mill 15kw
Stainless Steel Nano Bead Mill 3L Capacity Horizontal Bead Mill 15kw
Stainless Steel Nano Bead Mill 3L Capacity Horizontal Bead Mill 15kw
Stainless Steel Nano Bead Mill 3L Capacity Horizontal Bead Mill 15kw
Stainless Steel Nano Bead Mill 3L Capacity Horizontal Bead Mill 15kw
Stainless Steel Nano Bead Mill 3L Capacity Horizontal Bead Mill 15kw
Stainless Steel Nano Bead Mill 3L Capacity Horizontal Bead Mill 15kw
Stainless Steel Nano Bead Mill 3L Capacity Horizontal Bead Mill 15kw
Stainless Steel Nano Bead Mill 3L Capacity Horizontal Bead Mill 15kw
Stainless Steel Nano Bead Mill 3L Capacity Horizontal Bead Mill 15kw
Specifications
Motor power :
15kw
Outer chamber material :
Stainless steel 304
Inner tube material :
Silicon carbide
Grinding capacity :
3L
Brand Name :
LTD
Model Number :
LTD03N
Certification :
CE,ISO
Place of Origin :
Dongguan,China
MOQ :
1set
Price :
USD12580-13800/set
Payment Terms :
T/T
Supply Ability :
20-30 sets per month
Delivery Time :
25-30 days
Packaging Details :
wooden case
Power supply :
380V 50Hz 3Phase
Grinding fineness :
50nm~1μm
Description
LTD-N Series 3L capacity fully stainless steel nano-grade horizontal bead mill
1. Features:
  • Grinding fineness: 50nm~1μm
  • Zirconium beads size: 0.2nm~2.0mm
  • Suitable viscosity: ≤5000CPS
  • Suitable materials: oil-based and water-based
  • Rotor material: wear-resistant steel / tungsten carbide / silicon carbide / zirconia / polyurethane
2. Application:
  • Suitable for nano pigment, ceramic inks, magnetic materials, aluminum materials, electronic paste, zirconium silicate materials, thermal transfer inkjet inks, lithium iron phosphate, cosmetics, non-metallic mineral powder and other new materials.
3. Standard configuration:
  1. Outer chamber: Stainless steel 304
  2. Inner tube: Sic ( silicon carbide)
  3. Rotor and pins: ZrO2 (ceramic) for solvent based products
  4. Rotor and pins: Polyurethane (PU) for water based products
  5. Discharge sieve screen filter: Wear-resistant stainless steel
  6. Mechanical seal: Burgmann from Germany
4. Technical Parameters:
ModelChamber capacity(L)Motor power(Kw)Production capacity(L/h)Media size(mm)Weight(Kg)Overall dimensions(mm)
LTD03N31560.2-2.04301150*710*1600
LTD06N615150.2-2.05001300*980*1600
LTD10N1022250.2-2.013001430*860*1780
LTD30N3045700.2-2.018001830*950*1850
LTD60N60751500.2-2.035002230*1050*2200
LTD100N1001102000.2-2.048002700*1320*2560
LTD150N1501603500.2-2.065002900*1400*2600
LTD300N3003156000.2-2.085003300*1750*2880
LTD500N5004009000.2-2.095003550*1780*3050
LTD1000N100069016000.2-2.0115003700*1800*3100
Grinding process

Stainless Steel Nano Bead Mill 3L Capacity Horizontal Bead Mill 15kw

Structure classification of Horizontal Sand Mill

Stainless Steel Nano Bead Mill 3L Capacity Horizontal Bead Mill 15kw

Material classification of Horizontal Sand Mill Spare Parts

Stainless Steel Nano Bead Mill 3L Capacity Horizontal Bead Mill 15kw

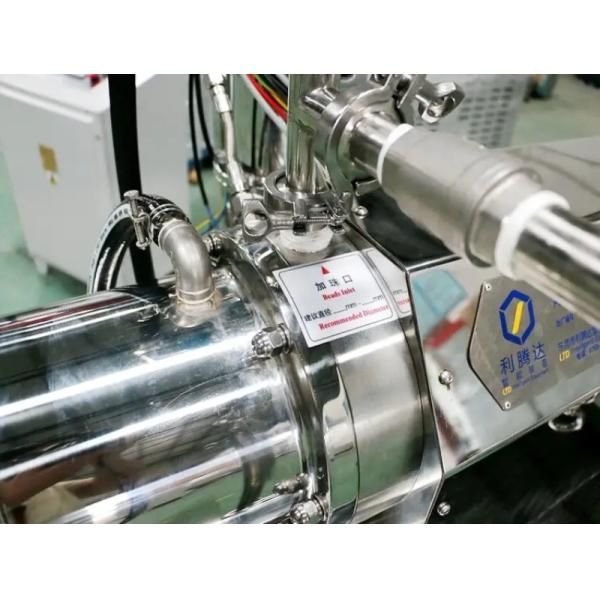

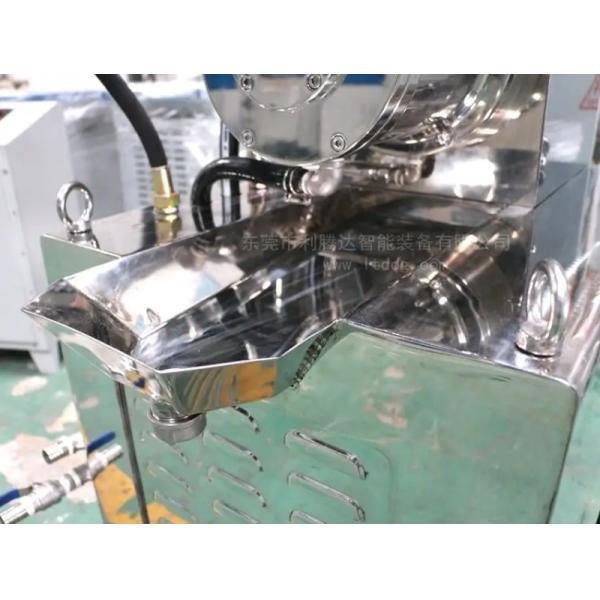

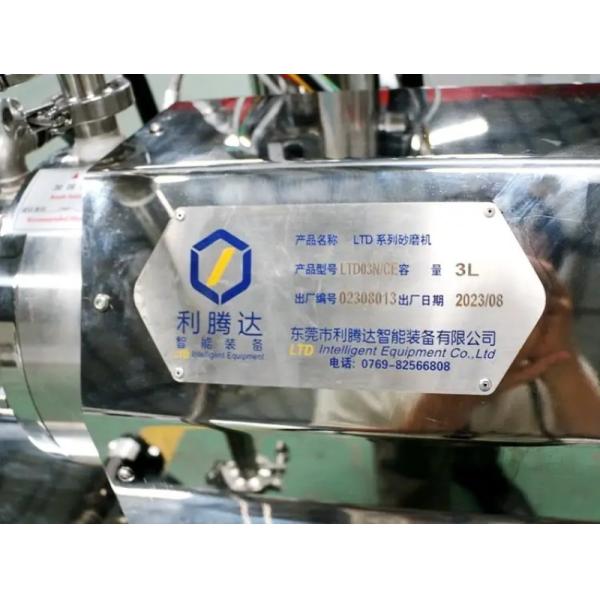

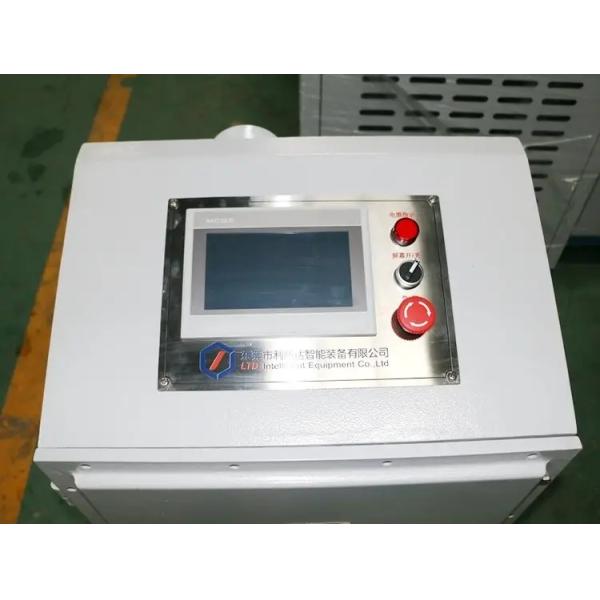

Real photos:

Stainless Steel Nano Bead Mill 3L Capacity Horizontal Bead Mill 15kw
Stainless Steel Nano Bead Mill 3L Capacity Horizontal Bead Mill 15kw
Stainless Steel Nano Bead Mill 3L Capacity Horizontal Bead Mill 15kw
Stainless Steel Nano Bead Mill 3L Capacity Horizontal Bead Mill 15kw
Stainless Steel Nano Bead Mill 3L Capacity Horizontal Bead Mill 15kw
Stainless Steel Nano Bead Mill 3L Capacity Horizontal Bead Mill 15kw

Working video:



Industry

Stainless Steel Nano Bead Mill 3L Capacity Horizontal Bead Mill 15kw
Stainless Steel Nano Bead Mill 3L Capacity Horizontal Bead Mill 15kw

Our factory

Stainless Steel Nano Bead Mill 3L Capacity Horizontal Bead Mill 15kw
Stainless Steel Nano Bead Mill 3L Capacity Horizontal Bead Mill 15kw
Stainless Steel Nano Bead Mill 3L Capacity Horizontal Bead Mill 15kw
Stainless Steel Nano Bead Mill 3L Capacity Horizontal Bead Mill 15kw
Stainless Steel Nano Bead Mill 3L Capacity Horizontal Bead Mill 15kw

Our certificate

Stainless Steel Nano Bead Mill 3L Capacity Horizontal Bead Mill 15kw

Customer's case

Stainless Steel Nano Bead Mill 3L Capacity Horizontal Bead Mill 15kw

Support and Services:

Product Technical Support and Services:

  • Comprehensive technical support for installation, operation, and maintenance
  • Troubleshooting assistance for any issues or malfunctions
  • Guidance on optimizing the performance of the equipment
  • Training programs for operators to ensure proper usage and maximize efficiency
Packing and Shipping:

Product Packaging:
The machine is carefully packaged in a wooden case to ensure safe transportation. The product is securely wrapped in bubble wrap to prevent any damage during shipping.
Shipping:
Orders are typically processed within 1-2 business days. Once shipped, you will receive a tracking number to monitor the delivery status of your sand mill/bead mill product. We partner with reliable shipping carriers to ensure timely delivery to your doorstep.

FAQ:

Q: What is a sand mill/bead mill?

A: A sand mill/bead mill is a grinding machine used to reduce particle size by agitating beads in a liquid medium.

Q: What are the typical applications of a sand mill/bead mill?

A: Sand mills/bead mills are commonly used in industries such as paint, ink, coatings, and pigments for wet grinding and dispersion of materials.

Q: How does a sand mill/bead mill work?

A: In a sand mill/bead mill, the grinding chamber contains small beads that are agitated by a rotating shaft, causing the beads to collide and break particles down to the desired size.

Q: What are the advantages of using a sand mill/bead mill?

A: Some advantages of sand mills/bead mills include efficient particle size reduction, uniform particle distribution, and the ability to process a wide range of materials.

Q: How to choose the right sand mill/bead mill for my application?

A: When selecting a sand mill/bead mill, factors suchs as the desired particle size, material viscosity, production capacity, and required fineness should be considered to ensure optimal performance for your specific application.
