Liquid Soap Making Machine Small Line Production Liquid Soap Manufacturing Plant Shampoo Machine Blender Liquid Washing Products

Subtitle

Ideal for small factories & startups | 50–500L/h capacity | GMP & CE compliant | All stainless steel 304/316L

Key Selling Points

Complete turnkey solution
One streamlined line — from raw water treatment to labeled output. Mixing, filling, capping: all integrated.

Ultra-compact footprint
Tight layout, ready to run, hassle-free operation.

Built to last
All wetted parts in SUS304/SUS316L. GMP & CE certified.

Handles multiple products
Works with liquid soap, hand sanitizer, shampoo, body wash, and detergent.

Budget-friendly & fast payback
Low upfront cost, quick ROI. 24/7 after-sales support.

Product Description

Designed for small to midsize manufacturers and startups, this compact liquid soap production line offers a complete end‑to‑end system. It brings together water treatment, a mixing reactor, storage tank, automatic filler, capper, and labeler — all in one smooth workflow.

Construction uses food‑grade stainless steel (304/316L). Features include PLC control, variable speed drive, and high‑shear homogenization. Output ranges from 50 to 500 liters per hour, suitable for liquid soap, hand sanitizer, shampoo, body wash, dish soap, and other daily chemical products.

Working Flow

Water Treatment
Raw tap water → passes through sand filter and softener → reverse osmosis produces purified water (conductivity ≤10 μS/cm)

Mixing & Reaction
Purified water is combined with oils and additives → heated to 80–90°C → agitated and homogenized → cooled down to 40–50°C

Storage & Degassing
Finished mixture moves to a holding tank for degassing and aging — a resting period of 2 to 8 hours

Filling
Automatic piston filler delivers consistent fill volume with ±0.5% precision

Capping
Caps (pump or screw type) are automatically fed and securely tightened

Labeling
Self-adhesive labels applied automatically — suitable for round or flat bottles

Coding & Packing
Production date printed → products packed into cartons

Technical Parameters

Machine List (Standard Configuration)

1. RO Water Treatment System – 50–1000L/h, removes impurities & hardness
2. Jacketed Mixing Tank – 50–500L, with stirrer, homogenizer, heater, and thermometer
3. Finished Product Storage Tank – 50–500L, with level sensor

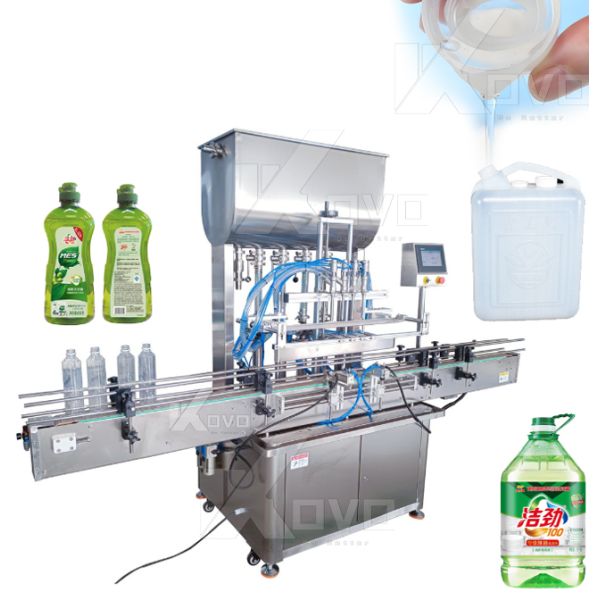

4. Automatic Piston Filling Machine – 4–12 nozzles, for liquid/viscous products
5. Automatic Capping Machine – For pump caps, flip-tops, and screw caps

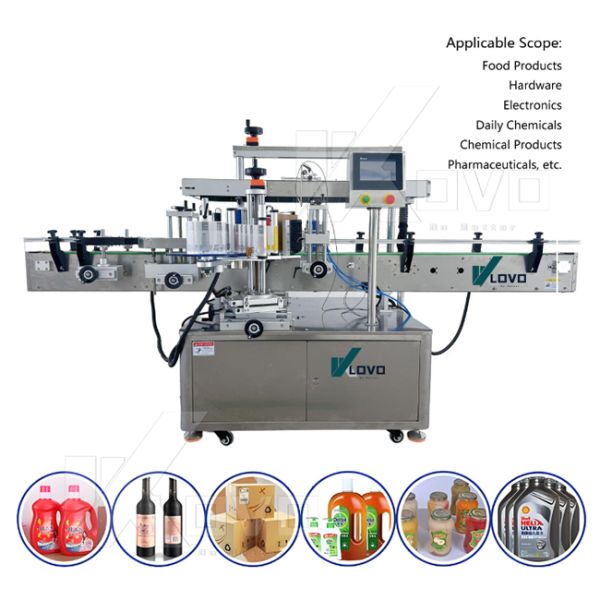

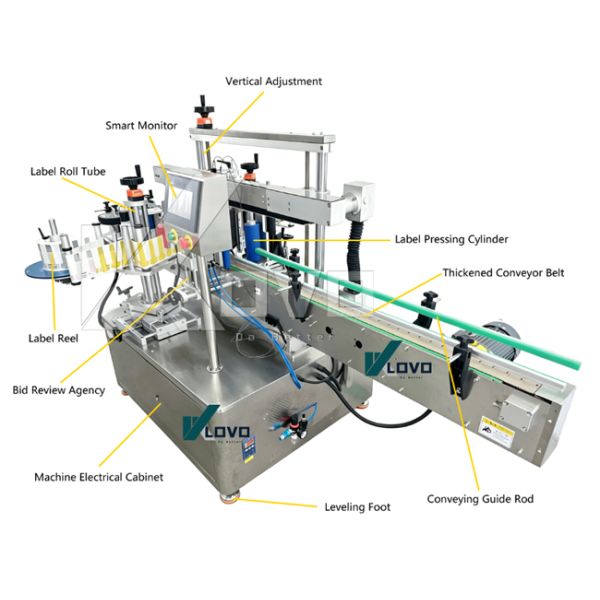

6. Automatic Labeling Machine – Single/double side labeling for round/flat bottles
7. Conveyor System – Stainless steel chain conveyor
8. Auxiliary Equipment – Feed pump, filter, control cabinet, etc.

Applications

• Liquid soap / hand wash
• Hand sanitizer / disinfectant
• Shampoo / conditioner
• Body wash / shower gel
• Dish soap / laundry detergent
• Lotion / cream (with optional homogenizer)

Packaging & Delivery

• Packing: Standard export wooden case (fumigated)
• Delivery: 15–25 days after deposit
• Shipping: By sea/air/express
• Warranty: 12 months (free parts & technical support)

FAQ

Q: What is the minimum order quantity?

A: 1 set (customization available).

Q: Can you customize the line capacity?

A: Yes, 50–500L/h available.

Q: Do you provide installation & training?

A: Yes, we provide online/offline training and installation guidance.

Q: What is the after-sales service?

A: 24/7 online support, 12-month warranty, and lifetime maintenance.
