Auto 100-1000ml Liquid Soap Aundry Hand Washing Gel Dishwashing Liquid Filling Machine
Auto 100-1000ml Liquid Soap Aundry Hand Washing Gel Dishwashing Liquid Filling Machine
Auto 100-1000ml Liquid Soap Aundry Hand Washing Gel Dishwashing Liquid Filling Machine
Auto 100-1000ml Liquid Soap Aundry Hand Washing Gel Dishwashing Liquid Filling Machine
Specifications
Place of Origin :
CHINA
Certification :
CE
application :
Chemical, Cosmetic, Other, Food, Beverage
warranty :
1 year
driven type :
Electric
MOQ :
one set
Payment Terms :
L/C,T/T,Western Union
Delivery Time :
30 work days
key selling points :
High-Accuracy
Voltage :
110 V, 220 V, 380 V
Brand Name :
LOVO
automatic grade :
Automatic
Price :
USD10000
packaging material :
Metal, Glass, Wood
core components :
PLC, Pump, Motor, Gear, Bearing, Gearbox
Description
Auto 100-1000ml Liquid Filling Machine – For Laundry Soap, Hand Wash Gel, Dishwashing & Detergent
BRIEF INTRODUCTION
The machine adopts PLC control, according to the filling bottle, fixed discharging mouth, the rest all operation can be finished on a touch screen. In addition to have common automatic servo piston filling machine advantages, also the widened the range of filling material. Such as filling material contains particles, long strips of solid content, also can be a very effective filling. This machine adopts serve ball-screw system to drive the piston cylinder. It's widely used in Food, Chemical, Medical, Cosmetics, Agrochemical industry, applicable for filling liquid, especially for high viscosity material and foamy liquid, such as: Oil, Sauce, Ketchup, Honey, Shampoo, Lotion Lubricant oil, etc.
Auto 100-1000ml Liquid Soap Aundry Hand Washing Gel Dishwashing Liquid Filling Machine
Auto 100-1000ml Liquid Soap Aundry Hand Washing Gel Dishwashing Liquid Filling Machine
Auto 100-1000ml Liquid Soap Aundry Hand Washing Gel Dishwashing Liquid Filling Machine
Auto 100-1000ml Liquid Soap Aundry Hand Washing Gel Dishwashing Liquid Filling Machine

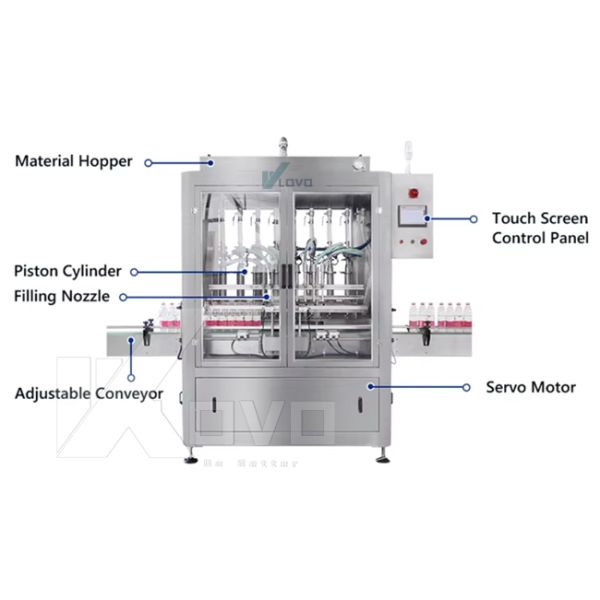

PRODUCT DETAILS
Auto 100-1000ml Liquid Soap Aundry Hand Washing Gel Dishwashing Liquid Filling Machine
Fllling Heads
Every filling head has anti-drop design. Itpromise do not waste the material. Anddiameter of filling head basis on thediameter of customer's barrel's mouth.
Auto 100-1000ml Liquid Soap Aundry Hand Washing Gel Dishwashing Liquid Filling Machine
Antl-drlpping system
This function is for prevent materialdripping on the bottle and conveyor. Andthere will be a flexible plate coming outand back to take the dripping materials
Auto 100-1000ml Liquid Soap Aundry Hand Washing Gel Dishwashing Liquid Filling Machine

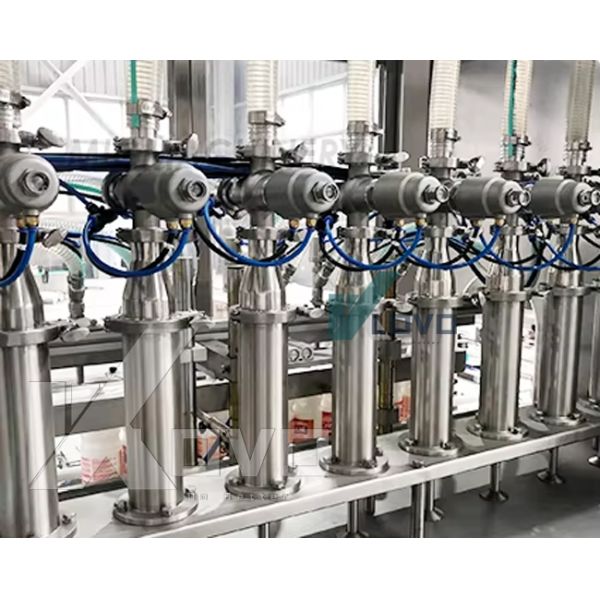

PIston Cyllnder
The piston is drawn back in its cylinderso that the product is sucked into thecylinder. The rotary valve then changesposition so that the product is pushedout of the nozzle instead of back into thehopper.
Auto 100-1000ml Liquid Soap Aundry Hand Washing Gel Dishwashing Liquid Filling Machine

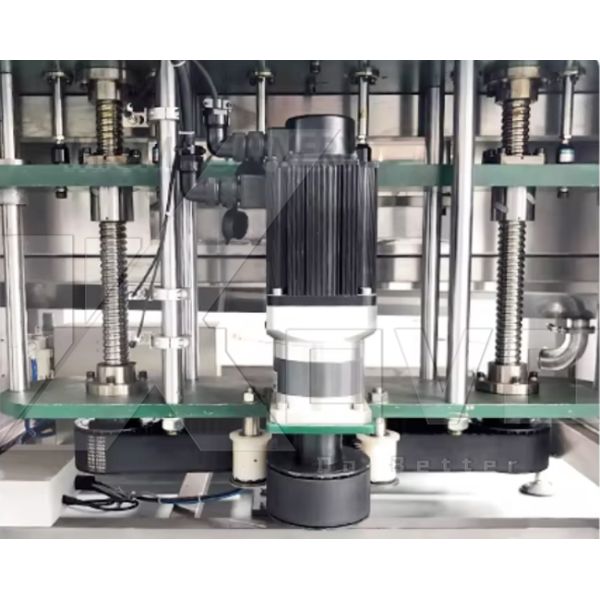

Servo Motor
Servo motor can control filling moreaccurately and can realize filling nozzlediving bottom-up filling. The fillingvolume can also be adjusted on thetouch screen and has an automatic fineadjustment function for each fillinghead.
Auto 100-1000ml Liquid Soap Aundry Hand Washing Gel Dishwashing Liquid Filling Machine
Weight
700KG
Filling Volume
100-1000ml
Filling Error
≤3%
Suitable Filling Material
Oil,shampoo,detergent,sauce, honey, etc
Suitable Barrel Width
120-250mm
Dimension
2000*1300*2200mm
Power
1.5Kw
Filling nozzle
8 nozzles
Capacity
≤3000BPH
Suitable Barrel Length
180-330mm
Suitable Barrel Height
80-450mm

FAQ

1. What is the filling volume range of this machine?

This machine fills from 100ml to 1000ml (1 liter) per container. The volume is easily adjustable via the control panel – no tools required. Custom ranges (e.g., 50-500ml or 200-2000ml) are available upon request.

2. Can this machine fill both thin and thick liquids?

Yes, it handles a wide viscosity range – from thin liquids like water-based detergents to thicker liquids like hand wash gel and liquid soap. The pump system is selected based on your specific product viscosity.

3. What is the filling speed of this automatic filler?

Filling speed depends on volume and viscosity, typically:

  • 20–40 bottles per minute for 100-500ml fills

  • 10–20 bottles per minute for 500-1000ml fills
    Please contact us with your target fill volume for an exact speed estimate.

4. How accurate is the filling volume?

The filling accuracy is ±0.5% to ±1% of target volume. For example, a 500ml fill will be within ±2.5-5ml. Higher precision systems (up to ±0.2%) are available for premium applications.

5. How do I clean the machine when changing products?

Cleaning is simple. The machine features quick-release clamps on nozzles and hoses. All product-contact parts are made of stainless steel. You can flush the system with warm water or cleaning solution in 10–15 minutes.
