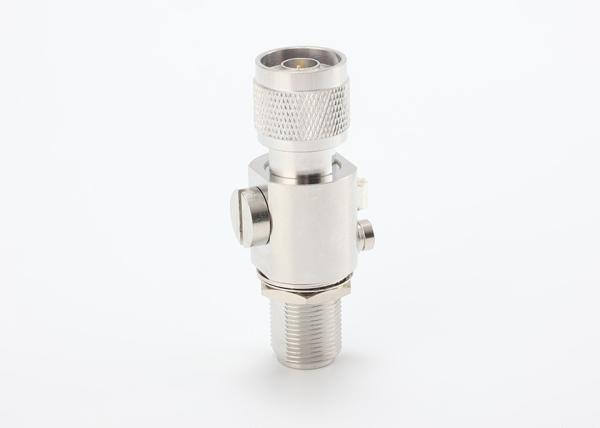

Waterproof Antenna Lightning Arrester Positive To Negative Conventional Lightning Arrester
Waterproof Antenna Lightning Arrester Positive To Negative Conventional Lightning Arrester
Waterproof Antenna Lightning Arrester Positive To Negative Conventional Lightning Arrester
Waterproof Antenna Lightning Arrester Positive To Negative Conventional Lightning Arrester
Specifications
Brand Name :
RisingHF
Model Number :
RHF-N-JK-G-Y-6
Place of Origin :
China
MOQ :
5
Price :
Negotinate
Payment Terms :
T/T
Supply Ability :
10000
Delivery Time :
3 working days
Ambient temperature :
- 40~85 ℃
Relative humidity :
up to 95% at+40 ℃
Insertion loss :
<0.4dB
Voltage standing wave ratio :
<1.2
Dielectric withstand voltage :
2500V
Insulation resistance :
≥ 5000 M Ω
Description

Descriptions:

RisingHF Antenna lightning arrester, N-type positive to negative lightning arrester Waterproof RHF-N-JK-G-Y-6

Specification:

Product design level: Universal connector level 2

Connection mechanism type: threaded connection 5/8-24UNEF-2A (2B)

Applicable standards: IEC60169-1, IEC-60169-16

Matching relationship: can be matched with N-type pin and socket contact connectors

Inner conductor: material: bronze/brass QSn6.5-0.1/HPb59-1 GB3124-82/GB3112-82

Coating: electroplated gold

Housing: material is brass HPb59-1 GB4425-84

Coating: electroplated nickel

Insulator: PTFE

Gas discharge tube: 230V ± 20%

B. Electrical performance:

Characteristic impedance: 50 Ω

Frequency band range: DC~5.9GHz

Rated DC breakdown voltage: 230V ± 20%

Contact resistance: inner conductor: ≤ 1m Ω; Outer conductor ≤ 1m Ω

Mechanical characteristics:

Inner conductor separation force:>0.57N

Outer conductor separation force: Not applicable

Mechanical life:>500 times (12 times per minute)

Connecting nut torque: 0.68~1.13N. m recommended

Installation mode: through-wall installation

Working environment:

Ambient temperature: - 40~85 ℃

Relative humidity: up to 95% at+40 ℃

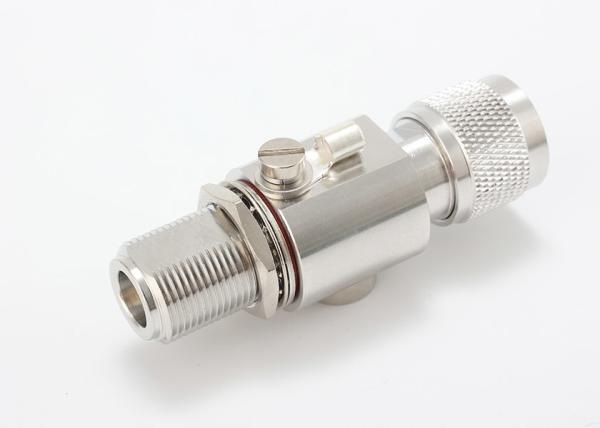

attached Picture

Waterproof Antenna Lightning Arrester Positive To Negative Conventional Lightning Arrester

For more information, pls access to our website www.risinghf.com.
