IEC60169-1 Antenna Lightning Arrester DC Breakdown Voltage 230V
IEC60169-1 Antenna Lightning Arrester DC Breakdown Voltage 230V
IEC60169-1 Antenna Lightning Arrester DC Breakdown Voltage 230V
IEC60169-1 Antenna Lightning Arrester DC Breakdown Voltage 230V
Specifications
Brand Name :
RisingHF
Model Number :
RHF-N-JK-G-Y-6
Place of Origin :
China
MOQ :
5
Price :
Negotinate
Payment Terms :
T/T
Supply Ability :
10000
Delivery Time :
3 working days
Product RoHS requirements :
Meet
Product Material :
yellow metal
Product voltage :
230V ± 20%
Product inner conductor :
≤ 1m Ω
Product Outer conductor :
≤ 1m Ω
Product Insulation resistance :
≥ 5000 M Ω
Description

Product Descriptions:

Antenna lightning arrester, DC breakdown voltage: 230V ± 20%, RHF-N-JK-G-Y-6 RisingHF

Product Specification:

Product design level: Universal connector level 2

Connection mechanism type: threaded connection 5/8-24UNEF-2A (2B)

Applicable standards: IEC60169-1, IEC-60169-16

Coating: electroplated gold

Housing: brass HPb59-1 GB4425-84

Coating: electroplated nickel

Insulator: PTFE

Gas discharge tube: 230V ± 20%

Dielectric withstand voltage: 2500V

Voltage standing wave ratio<1.2

Insertion loss:<0.4dB

Product Mechanical characteristics:

Inner conductor separation force:>0.57N

Outer conductor separation force: Not applicable

Mechanical life:>500 times (12 times per minute)

Installation mode: through-wall installation

Product Working environment:

Ambient temperature: - 40~85 ℃

Relative humidity: up to 95% at+40 ℃

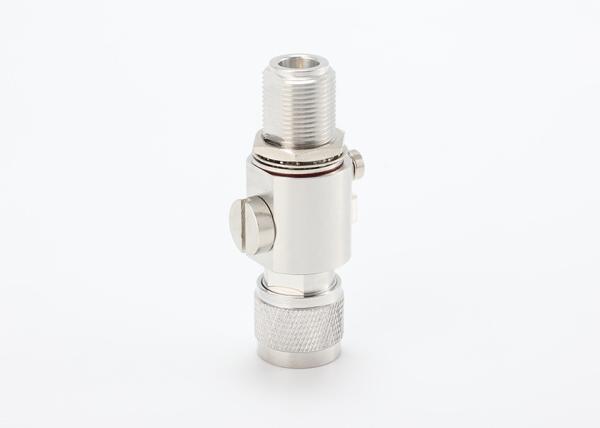

Product Attached Picture

IEC60169-1 Antenna Lightning Arrester DC Breakdown Voltage 230V
