5.9GHz Antenna Lightning Arrester Gps Lightning Arrestor With Meeting RoHS
5.9GHz Antenna Lightning Arrester Gps Lightning Arrestor With Meeting RoHS
5.9GHz Antenna Lightning Arrester Gps Lightning Arrestor With Meeting RoHS
5.9GHz Antenna Lightning Arrester Gps Lightning Arrestor With Meeting RoHS
Specifications
Brand Name :
RisingHF
Model Number :
RHF-N-JK-G-Y-6
Place of Origin :
China
MOQ :
5
Price :
Negotinate
Payment Terms :
T/T
Supply Ability :
10000
Delivery Time :
3 working days
Main Coating :
Electroplated gold
Main Housing :
yellow metal
Main Gas discharge tube :
230V±20%
Main electrical insulator :
teflon
Main characteristic impedance :
50Ω
Main Frequency band range :
2.DC~5.9GHz
Description

Main Descriptions:

Antenna lightning arrester RHF-N-JK-G-Y-6 DC breakdown voltage: 230V ± 20% with meeting RoHS requirements.

The product has realized the installation of N-type pin and socket lightning arrester through the wall.

Main Specification:

Product design level: Universal connector level 2

Connection mechanism type: threaded connection 5/8-24UNEF-2A (2B)

Applicable standards: IEC60169-1, IEC-60169-16

Matching relationship: can be matched with N-type pin and socket contact connectors

Technical parameters:

Inner conductor: material: bronze/brass QSn6.5-0.1/HPb59-1 GB3124-82/GB3112-82

Rated DC breakdown voltage: 230V ± 20%

Insulation resistance: ≥ 5000 M Ω

Dielectric withstand voltage: 2500V

Voltage standing wave ratio<1.2

Insertion loss:<0.4dB

Main Mechanical characteristics:

Inner conductor separation force:>0.57N

Outer conductor separation force: Not applicable

Mechanical life:>500 times (12 times per minute)

Connecting nut torque: 0.68~1.13N. m recommended

Main Working environment:

Ambient temperature: - 40~85 ℃

Relative humidity: up to 95% at+40 ℃

Waterproof requirements: meet

Process use: During docking, it is necessary to align first and then tighten with a torque wrench

Attached Picture

5.9GHz Antenna Lightning Arrester Gps Lightning Arrestor With Meeting RoHS

Others :

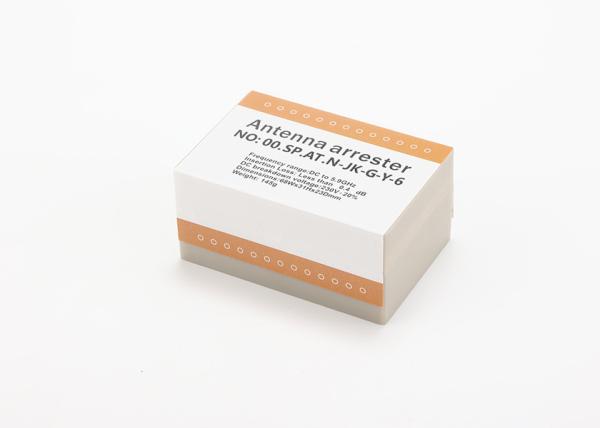

One plastic bag unit is packaged and then placed in a paper box.

Corrugated cardboard box for Outer packaging

Store in a warehouse with a temperature of - 10~+35 ℃, a relative humidity of not more than 80%, and no corrosive gases such as acid and alkali in the surrounding air.

For more information, pls access to our website www.risinghf.com.
