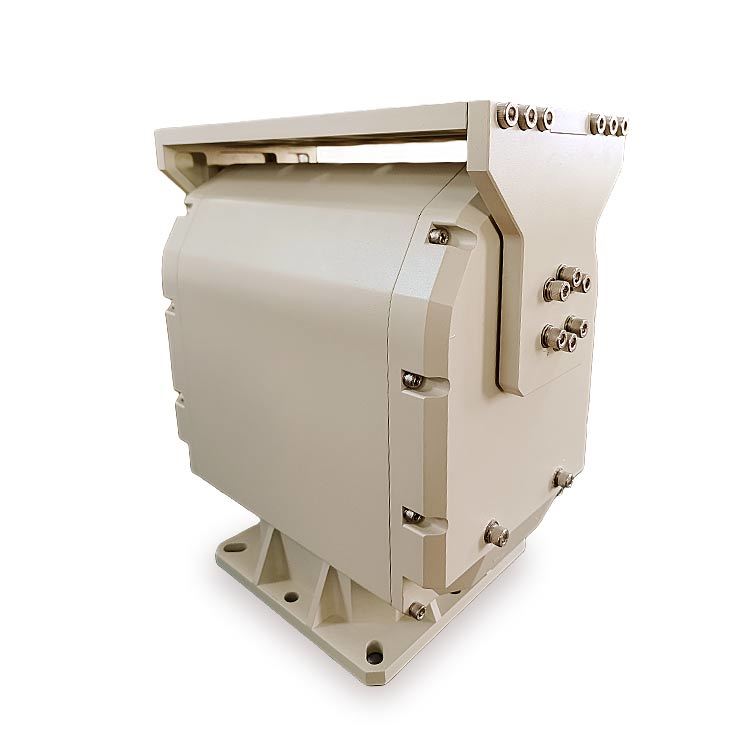

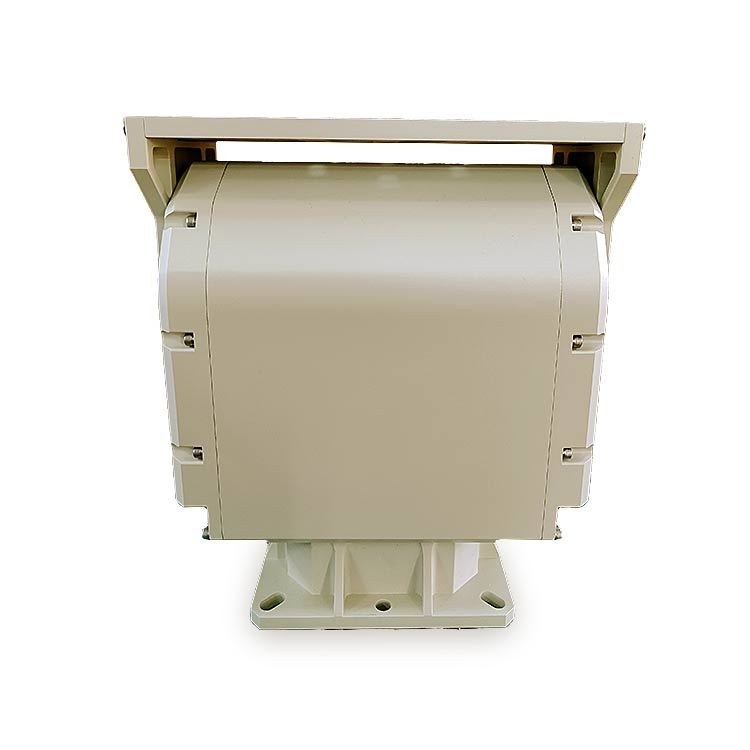

Heavy Duty Pan Tilt Unit With 80kg Payload 360° Continuous Rotation And IP66 Ingress Protection
Heavy Duty Pan Tilt Unit With 80kg Payload 360° Continuous Rotation And IP66 Ingress Protection
Heavy Duty Pan Tilt Unit With 80kg Payload 360° Continuous Rotation And IP66 Ingress Protection
Heavy Duty Pan Tilt Unit With 80kg Payload 360° Continuous Rotation And IP66 Ingress Protection
Heavy Duty Pan Tilt Unit With 80kg Payload 360° Continuous Rotation And IP66 Ingress Protection
Heavy Duty Pan Tilt Unit With 80kg Payload 360° Continuous Rotation And IP66 Ingress Protection
Specifications
MOQ :
1
Delivery Time :
5~10 days
Certification :
CE,FCC, ISO
Model Number :
HP–S080W-PT
Payment Terms :
T/T,L/C,Western Union
Price :
1000
Supply Ability :
2000 units per month
Brand Name :
Hope-Wish
Place of Origin :
China
Packaging Details :
Wooden packaging
Description

Product Description:

Heavy Duty Pan Tilt Units – 80kg payload

• Maximum Load: 80 kg

• Weight: 32 kg

• Rotation: Horizontal 360° continuous; Tilt -45° to +45°

• Speed: Horizontal 0.01°–10°/s; Tilt 0.01°–5°/s

• Repeat Positioning Accuracy: ±0.1°

• Ingress Protection: IP66

• Auto Patrol: 2 routes, 40 presets per route

• Communication Protocol: PELCO-D

• Interface: RS422

• Operating Temperature: -25°C to +65°C

• Installation: Fixed

Heavy Duty Pan Tilt Unit With 80kg Payload 360° Continuous Rotation And IP66 Ingress Protection

Technical Parameters:

Model

H–S080W-PT

Rotation Angle

Pan: 0° to 360° ; Tilt: -45° to +45°

Rotation Speed

Pan: 0.01 to 10°/s ; Tilt: 0.01 to 5°/s

Preset Positions

200

Positioning Accuracy

±0.1°

Power-On Self-Test

Support

Angle Feedback

Query-based / Real-time

Auto Cruise

2 patterns, 40 points each

Auto Home

Configurable (1～60 min)

Auto Scan

1 pattern

Salt Spray Resistance

No significant surface change after 48hrs continuous spray (PH 6.5-7.2).

Communication Protocol

PELCO_D

Baud Rate

9600bps(2400/4800/115200bps)

Communication Interface

RS422

Power Supply Voltage

DC48V

Power Consumption

≤200W (Operating)

Temperature

-40℃～+65℃(working),-25℃～+65℃(storage)

Payload

80 kg

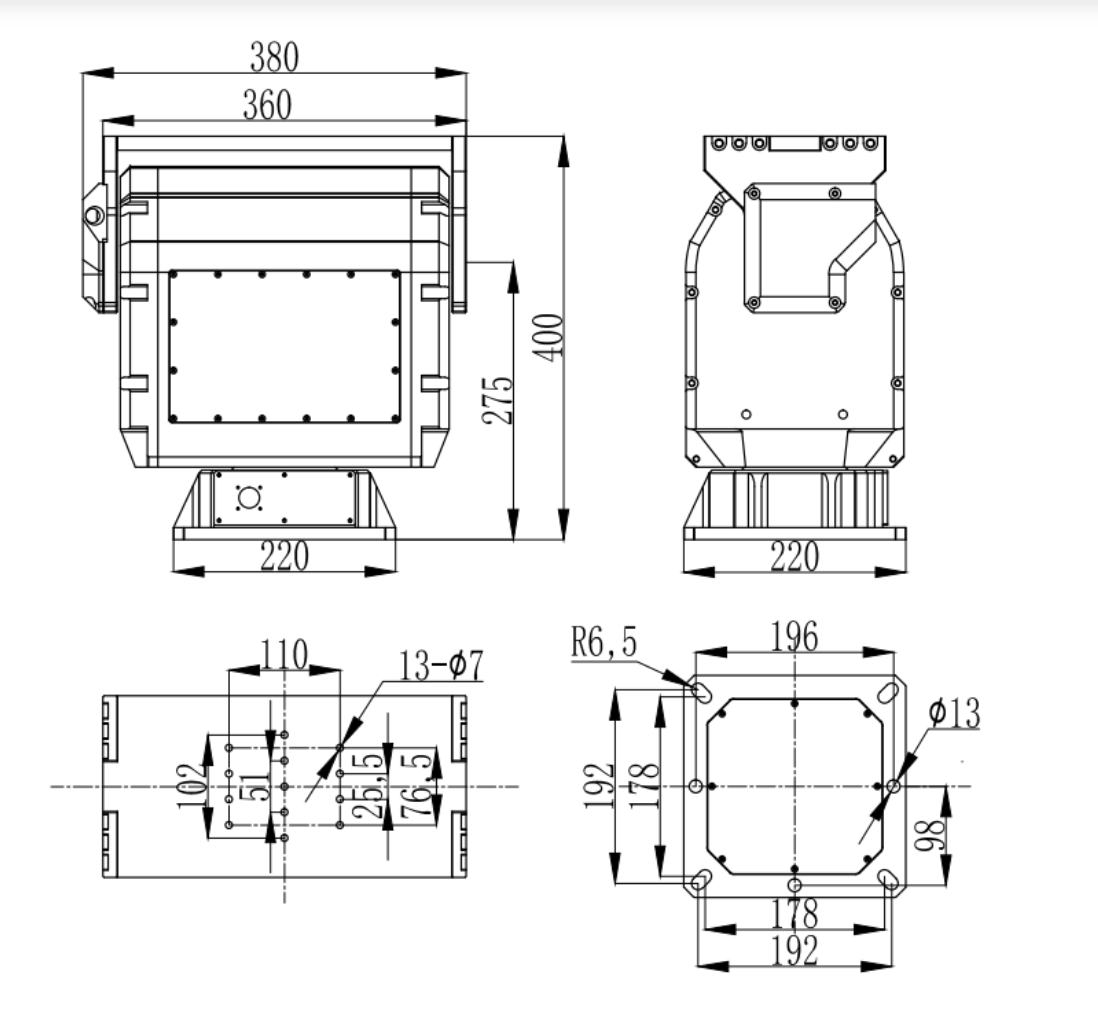

Dimensions (LWH)

380 x 220 x 400 mm

Weight

32kg

Mounting Type

Top Mount

Self-Locking

Support

Ingress Protection (IP)

IP66

Installation Environment

Fixed Installation

System Type

Open-Loop System (No Encoder)

Top Cable Pass-through

1x Gigabit Ethernet Passthrough Signal Cable (8-core)
1x DC24V Output Power Cable (20A)

Bottom Cable Pass-through

1x Gigabit Ethernet Passthrough Signal Cable (8-core)
1x DC24V Input Power Cable (System Power)
1x RS422 (Unit Communication)
Heavy Duty Pan Tilt Unit With 80kg Payload 360° Continuous Rotation And IP66 Ingress Protection
