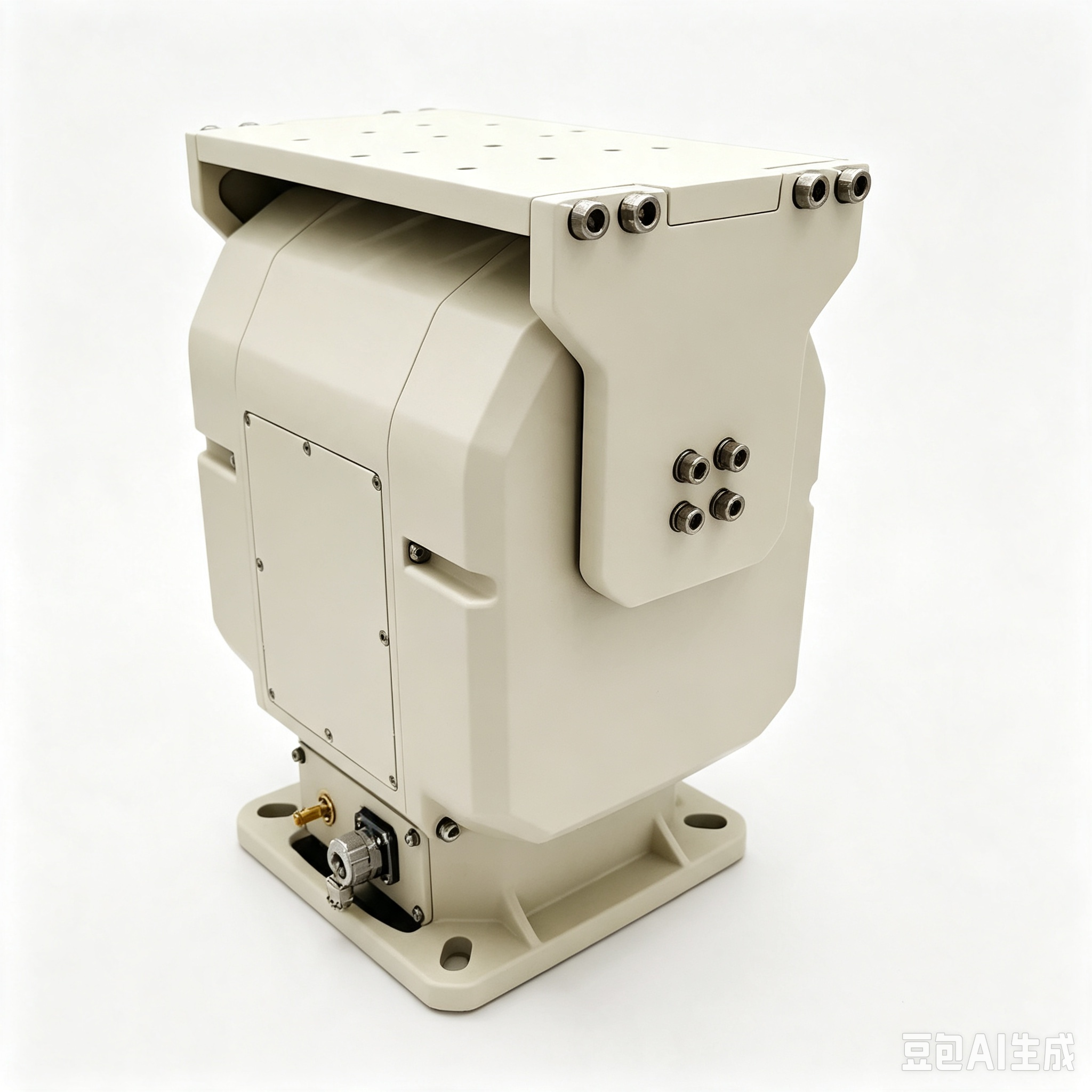

High-Performance Pan Tilt Unit with 20kg Payload, 360° Continuous Rotation, and IP67-Rated Protection
High-Performance Pan Tilt Unit with 20kg Payload, 360° Continuous Rotation, and IP67-Rated Protection
High-Performance Pan Tilt Unit with 20kg Payload, 360° Continuous Rotation, and IP67-Rated Protection
High-Performance Pan Tilt Unit with 20kg Payload, 360° Continuous Rotation, and IP67-Rated Protection
High-Performance Pan Tilt Unit with 20kg Payload, 360° Continuous Rotation, and IP67-Rated Protection
High-Performance Pan Tilt Unit with 20kg Payload, 360° Continuous Rotation, and IP67-Rated Protection
Specifications
Model Number :
HP–S080W-PT
Price :
1000
Certification :
CE,FCC, ISO
MOQ :
1
Delivery Time :
5~10 days
Payment Terms :
T/T,L/C,Western Union
Supply Ability :
2000 units per month
Brand Name :
Hope-Wish
Place of Origin :
China
Packaging Details :
Wooden packaging
Description

Product Description:

Pan Tilt Units – 20kg payload

HP–S020W-PT supports any type of single or multi-part payload through a flexible bracketing system of top and/or side mounting. The real-time command interface supports advanced applications such as video tracking. HP–S020W-PT has been proven in a wide range of mission-critical applications for positioning of cameras, lasers, antennas, or other instruments in both fixed and mobile environments. It is designed for high duty cycles and reliable operation 24/7 in harsh all-weather environments.

High-Performance Pan Tilt Unit with 20kg Payload, 360° Continuous Rotation, and IP67-Rated Protection

Technical Parameters:

Model

HP–S020W-PT

Rotation Angle

Pan: 0° to 360° ; Tilt: -60° to +20°

Rotation Speed

Pan: 0.01 to 20°/s ; Tilt: 0.01 to 10°/s

Preset Positions

200

Positioning Accuracy

±0.1°

Power-On Self-Test

Support

Angle Feedback

Query-based / Real-time

Auto Cruise

2 patterns, 40 points each

Auto Home

Configurable (1～60 min)

Auto Scan

1 pattern

Salt Spray Resistance

No significant surface change after 48hrs continuous spray (PH 6.5-7.2).

Communication Protocol

PELCO_D

Baud Rate

9600bps(2400/4800/115200bps)

Communication Interface

RS422

Power Supply Voltage

DC24V

Power Consumption

≤90W (Operating)

Temperature

-40℃～+65℃(working),-25℃～+65℃(storage)

Payload

20 kg

Dimensions (LWH)

272 x 170 x 300 mm

Weight

32kg

Mounting Type

Top Mount

Self-Locking

Support

Ingress Protection (IP)

IP66

Installation Environment

Fixed Installation

System Type

Open-Loop System (No Encoder)

Top Cable Pass-through

1x Gigabit Ethernet Passthrough Signal Cable (8-core)
1x DC24V Output Power Cable (20A)

Bottom Cable Pass-through

1x Gigabit Ethernet Passthrough Signal Cable (8-core)
1x DC24V Input Power Cable (System Power)
1x RS422 (Unit Communication)
High-Performance Pan Tilt Unit with 20kg Payload, 360° Continuous Rotation, and IP67-Rated Protection

Company:

Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.High-Performance Pan Tilt Unit with 20kg Payload, 360° Continuous Rotation, and IP67-Rated ProtectionHigh-Performance Pan Tilt Unit with 20kg Payload, 360° Continuous Rotation, and IP67-Rated Protection
