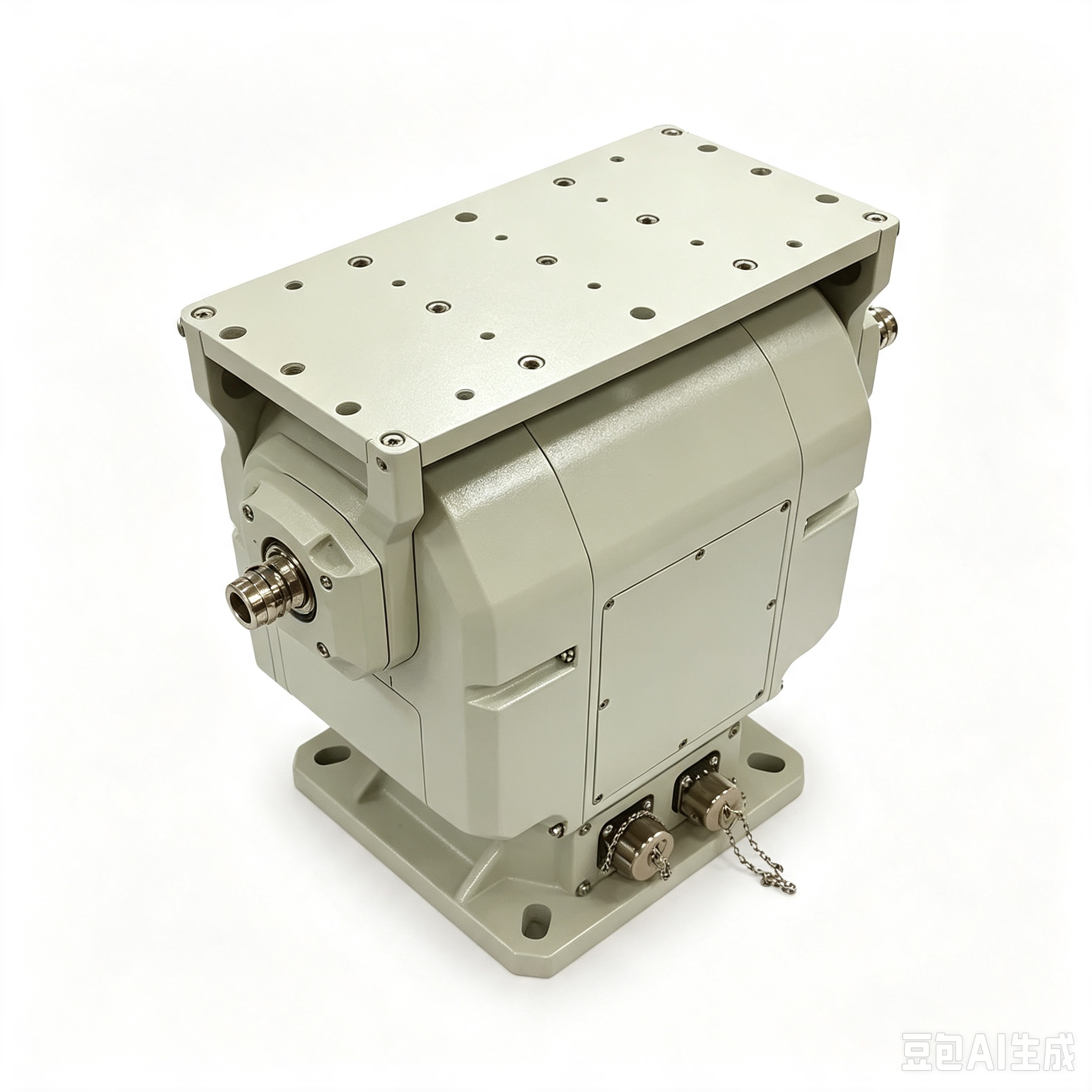

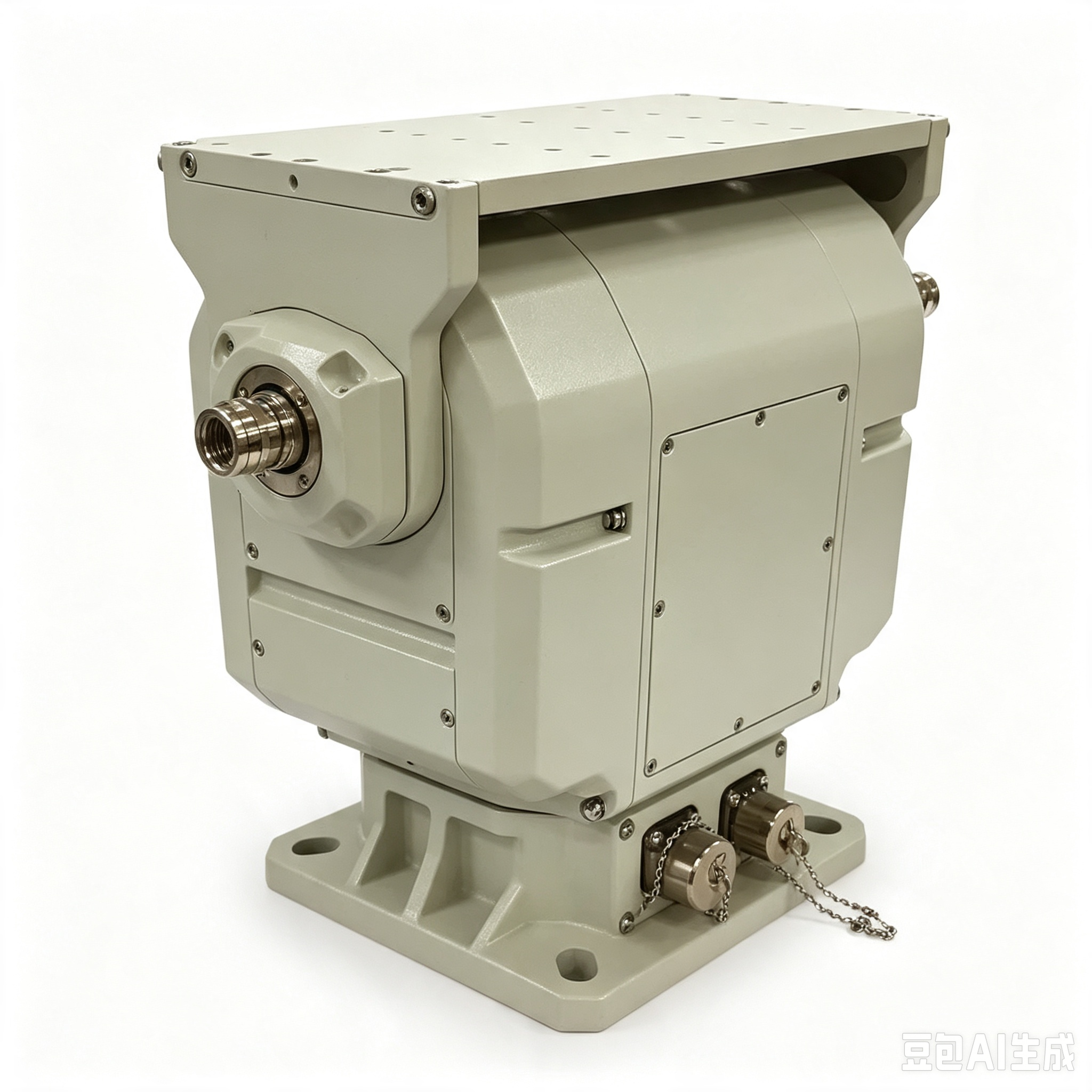

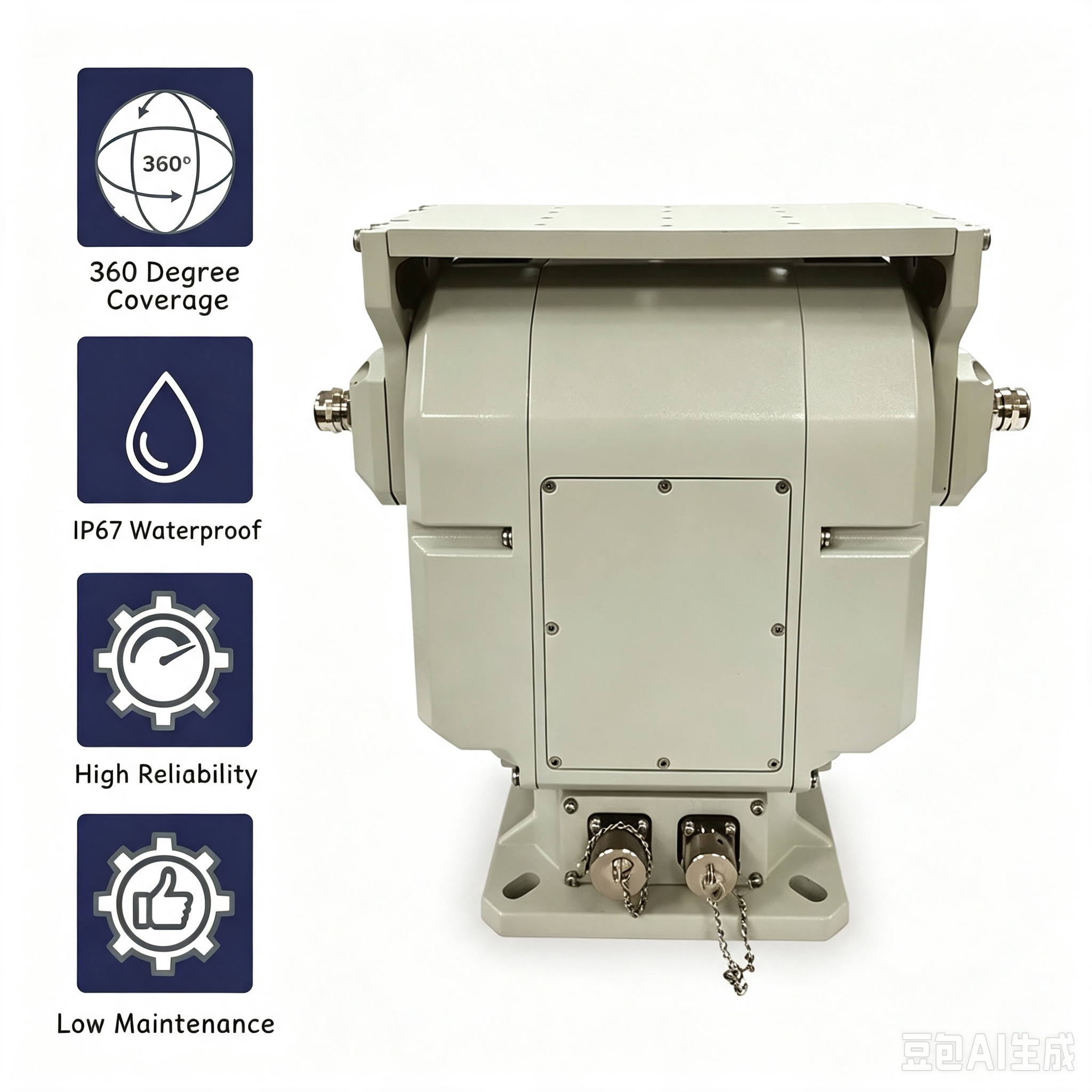

Heavy Duty 30kg Payload Pan Tilt Unit with 360° Continuous Rotation and IP66 Protection
Heavy Duty 30kg Payload Pan Tilt Unit with 360° Continuous Rotation and IP66 Protection
Heavy Duty 30kg Payload Pan Tilt Unit with 360° Continuous Rotation and IP66 Protection
Heavy Duty 30kg Payload Pan Tilt Unit with 360° Continuous Rotation and IP66 Protection
Heavy Duty 30kg Payload Pan Tilt Unit with 360° Continuous Rotation and IP66 Protection
Heavy Duty 30kg Payload Pan Tilt Unit with 360° Continuous Rotation and IP66 Protection
Specifications
Model Number :
HP–S030W-PT
MOQ :
1
Delivery Time :
5~10 days
Supply Ability :
2000 units per month
Payment Terms :
T/T,L/C,Western Union
Price :
500
Certification :
CE,FCC, ISO
Brand Name :
Hope-Wish
Place of Origin :
China
Packaging Details :
Wooden packaging
Description

Heavy Duty Pan Tilt Units – 30kg Industrial Motorized Positioning

  • Payload Capacity: 30 kg
  • Net Weight: 14 kg
  • Rotation Range: Pan 360° continuous; Tilt -60° to +20°
  • Scanning Speed: Pan 0.01°–20°/s; Tilt 0.01°–10°/s
  • Positioning Accuracy: ±0.1° (Repeatability)
  • Ingress Protection: IP66
  • Automated Patrol: 2 routes, 40 presets per route
  • Communication Protocol: PELCO-D
  • Interface: RS422
  • Operating Temperature: -25°C to +65°C
  • Mounting Type: Fixed Installation

Heavy Duty 30kg Payload Pan Tilt Unit with 360° Continuous Rotation and IP66 Protection

Technical Parameters:

Model

HP–S030W-PT

Rotation Angle

Pan: 0° to 360° ; Tilt: -60° to +20°

Rotation Speed

Pan: 0.01 to 10°/s ; Tilt: 0.01 to 5°/s

Preset Positions

200

Positioning Accuracy

±0.1°

Power-On Self-Test

Support

Angle Feedback

Query-based / Real-time

Auto Cruise

2 patterns, 40 points each

Auto Home

Configurable (1～60 min)

Auto Scan

1 pattern

Salt Spray Resistance

No significant surface change after 48hrs continuous spray (PH 6.5-7.2).

Communication Protocol

PELCO_D

Baud Rate

9600bps(2400/4800/115200bps)

Communication Interface

RS422

Power Supply Voltage

DC 24V

Power Consumption

≤ 150W (Operating)

Temperature

-40℃～+65℃(working),-25℃～+65℃(storage)

Payload

30 kg

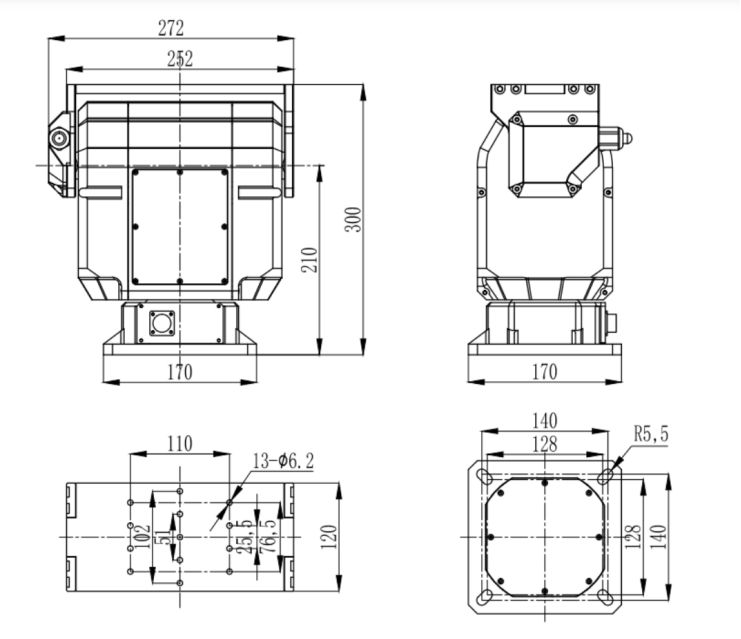

Dimensions (LWH)

272 x 270 x 300 mm

Weight

14 kg

Mounting Type

Top Mount

Self-Locking

Support

Ingress Protection (IP)

IP66

Installation Environment

Fixed Installation

System Type

Open-Loop System (No Encoder)

Top Cable Pass-through

1x Gigabit Ethernet Passthrough Signal Cable (8-core)
1x DC24V Output Power Cable (15A)

Bottom Cable Pass-through

1x Gigabit Ethernet Passthrough Signal Cable (8-core)
1x DC24V Input Power Cable (System Power)
1x RS422 (Unit Communication)
Heavy Duty 30kg Payload Pan Tilt Unit with 360° Continuous Rotation and IP66 Protection
