Specifications
Brand Name :
LongJoin
Model Number :
JL-245CC
Place of Origin :
China
Price :
negotiable
Packaging Details :
Different packaging methods are adopted according to different modes of transport.
Payment Terms :
Western Union,MoneyGram,T/T
Power supply :
Rated：100~277VAC；50/60Hz Limited：85~305VAC；47/63Hz
Dimming output :
0-10VDC
Wireless communication :
0-10VDC
Load :
≤9A
Power Consumption :
1.2W static，2.4W dynamic
Real-world Scenarios :
Municipal Streetlight Networks
Description
JL-245CC LTE-Cat.1 Smart Lighting Controller with OTA Firmware Update
Product Overview

JL-245CC is a NEMA single light controller developed based on 4G (LTE Cat.1) communication technology, enabling remote control, real-time configuration, and monitoring. With its compact size and IP66 protection rating, this controller is ideal for various lighting applications including roads, parks, campuses, shopping malls, supermarkets, and industrial facilities.

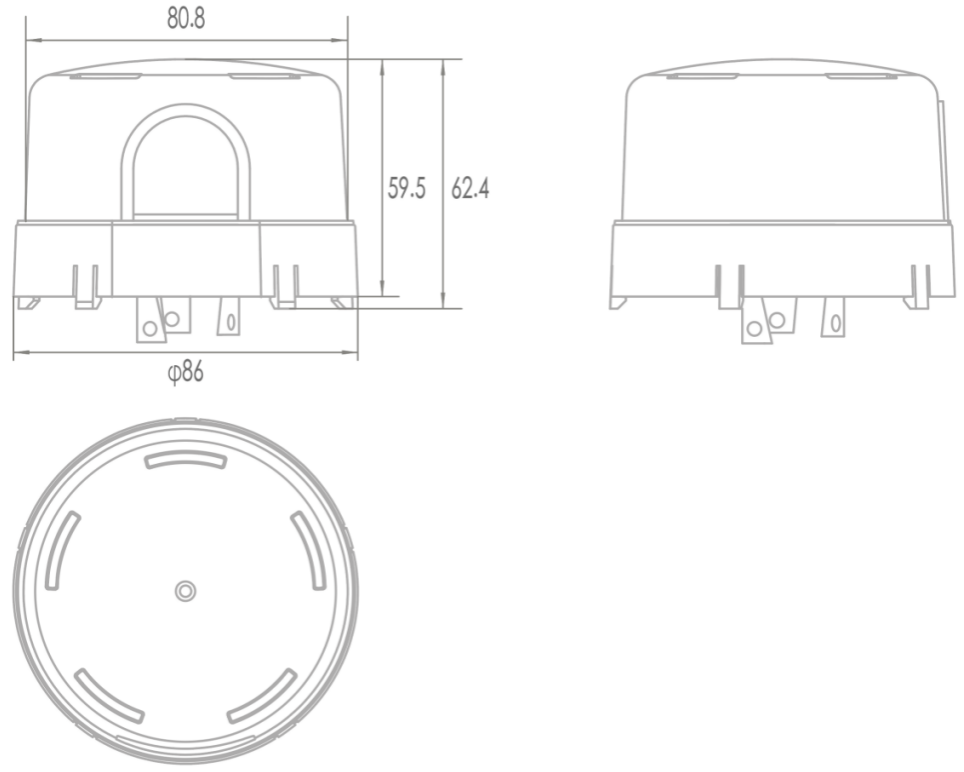

Product Dimensions
OTA Firmware Update LTE-Cat.1 Built In SIM Card 9A Load ESIM Oads Parks Campuses Shopping Malls Supermarkets Factories Parks
Key Features
  • ANSI C136.41 Twist-lock compatibility
  • 85~305VAC wide power supply range
  • 9A maximum load capacity
  • Zero crossing switch with >60,000 switching life
  • 6KV/3KA surge protection
  • Under-voltage/over-voltage/over-current fault self-test reporting and protection
  • CLASS 2.0 metering accuracy for voltage, current, power, power factor, and cumulative energy consumption
  • Built-in light sensor
  • Double shell design for enhanced structural reliability
  • Compact dimensions: Φ86×62.4mm
  • eSIM technology (external pluggable SIM optional)
  • IP66 rated for outdoor and industrial environments
Technical Specifications
Power Supply Rated: 100~277VAC; 50/60Hz
Limited: 85~305VAC; 47~63Hz
Dimming Output 0-10VDC
Wireless Communication 4G (LTE Cat.1) Bands:
LTE-FDD: B1/B3/B5/B8
LTE-TDD: B34/B38/B39/B40/B41
Load Capacity ≤9A
Power Consumption 1.2W static, 2.4W dynamic
Operating Temperature -35°C to 85°C
Operating Humidity 5%RH to 99%RH
IP Rating IP66
Compliance Standards IEC61000-4-5; IEC61000-4-2; IEC61000-4-3; IEC61000-4-6; GB/T 17743-2017; IEC61000-4-4; IEC61000-4-11; IEC61000-3-2; GB/T2423.10-2008; UL94-V0
Dimensions Φ86×62.4mm
Weight 210g
Frequently Asked Questions
What is the LTE-Cat.1 smart lighting controller with OTA firmware update and built-in SIM card?

This intelligent lighting control device supports OTA firmware updates and features LTE-Cat.1 communication with built-in SIM card technology. Rated for 9A load capacity, it is widely used in parks, campuses, shopping malls, supermarkets, and industrial facilities.

What are the benefits of OTA firmware update for this lighting control device?

OTA updates enable remote, wireless firmware upgrades without requiring on-site maintenance. This ensures optimal device performance, functional enhancements, and long-term system stability.

What is the advantage of built-in SIM card (eSIM) compared to external SIM?

The built-in eSIM provides superior stability, enhanced waterproof and dustproof performance, eliminates loose contact issues, and simplifies installation in demanding outdoor and industrial environments.

What does 9A load capacity mean for this LTE lighting controller?

The 9A load rating indicates the device can safely drive high-power lighting loads, supporting various street lights, floodlights, and area lighting systems in large-scale outdoor and commercial applications.

In which specific scenarios is this device mainly applied?

This controller is primarily used for smart lighting management in parks, campuses, shopping malls, supermarkets, factories, industrial zones, and other large-scale public and commercial areas.
