Specifications
Brand Name :
LongJoin
Model Number :
JL-243
Place of Origin :
China
Price :
negotiable
Packaging Details :
Different packaging methods are adopted according to different modes of transport.
Payment Terms :
Western Union,MoneyGram,T/T
Rated Voltage :
120~277VAC(243C) / 347VAC(243E) / 480VAC(243F)
Dimming Output :
0~10V DC
Fail Mode :
Fail-On
Operate Levels :
Turn-On＜100Lx，Turn-Off＞100Lx / per client request
Certifications :
RoHS,UL,CE
Real-world Scenarios :
Smart City Backbone
Description
0-10V NEMA Controller Constant Illumination Midnight Night Optical Decay Compensation Real-time Fault Alert
Product Overview

JL-243 0-10V, Constant illumination, Midnight night, Optical decay compensation

The dimming photocontrol JL-243 is designed to automatically control dimmable LED street lighting (0~10V) based on ambient natural lighting levels. This microprocessor-based product features an IR-filtered phototransistor and includes heavy-duty surge protection (MOV) to safeguard against inrush current and lightning impulses.

A preset 10-second time-delay prevents excessive operation from spotlights or lightning during nighttime. The relay offers exceptional reliability with over 10,000 cycles, extending further with the optional sandwich cover.

This product meets ANSI C136.41 twist lock terminal requirements and is UL listed under ANSI/UL773 for plug-in, locking type photocontrols used with area lighting.

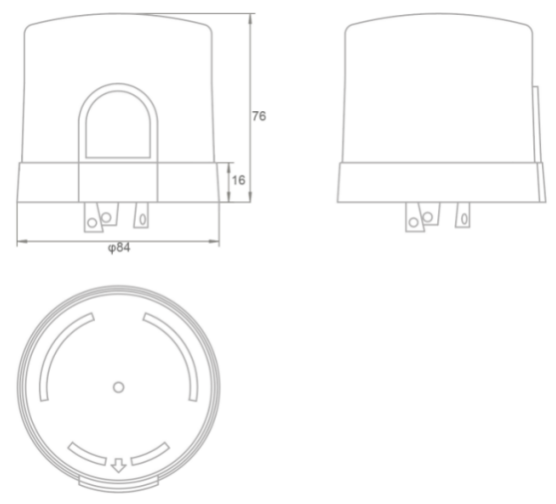

Product Dimensions
0-10V NEMA Controller Constant Illumination Midnight Night Optical Decay Compensation Real-time Fault Alert
Product Features
  • ANSI C136.41 Twist-lock
  • 0~10V Dimming
  • Surge protection level: 6KV/3KA differential mode
  • Optional Sandwich cover for Long Life
  • Multi-Volts Application
  • IP65 Ready / IP67 Optional
  • IR-filtered Phototransistor
  • Constant On/Off Dimming
  • Midnight Dimming
  • LED Decay Compensation
Technical Specifications
Model No. JL-243C JL-243E JL-243F
Rated Voltage 120~277VAC 347VAC 480VAC
Applicable Voltage Range 105~305VAC 105~382VAC 105~528VAC
Rated Frequency 50/60Hz
Dimming Output 0~10V DC
Spectral Acquisition Range 350~1100nm ; Peak wavelength:590nm
Rated Loading 1000W Tungsten, 1800VA Ballast, 8A@120VAC/5A@208-277VAC e-Ballast 1800W Tungsten, 1800VA Ballast, 5A@208-277VAC e-Ballast 1800W Tungsten, 1800VA Ballast
Operate Levels Turn-On＜100Lx,Turn-Off＞100Lx / per client request
Typical Time Delay 5s
Ambient Temperature -40°C ~ +70 °C
Related Humidity 96%
Fail Mode Fail-On
Shell material PC+PC
High protection Sandwich cover(optional)
Surge protection 640 Joule / 40kA Amp MYL1-40K511 640 Joule / 40kA Amp MYL1-40K911
IP level IP65/IP67
Factory settings Illuminance/Delayed Customizable Illuminance/Delayed/Reduction Duration Customizable
Certifications 0-10V NEMA Controller Constant Illumination Midnight Night Optical Decay Compensation Real-time Fault Alert
Frequently Asked Questions
What is a 0-10V NEMA Controller with Constant Illumination, Midnight Night Mode, Optical Decay Compensation and Real-time Fault Alert?

It is an intelligent NEMA-standard lighting controller supporting 0-10V dimming, with constant illumination control, midnight energy-saving mode, optical decay compensation and real-time fault alert for smart street lighting systems.

What is optical decay compensation and how does it work?

Optical decay compensation automatically increases output brightness proportionally as LED lamps age and luminous flux declines, maintaining consistent actual illumination over the lamp's lifespan.

What is the function of midnight night mode in this controller?

It automatically dims the lights to a lower brightness level during late night periods to reduce energy consumption while ensuring basic road safety and lighting requirements.

How does real-time fault alert function in this NEMA controller?

It monitors lamp status in real time, detects faults such as lamp failure, short circuit, abnormal voltage, dimming abnormality and communication errors, and sends timely alarm notifications.

What are the advantages of using NEMA standard and 0-10V control?

NEMA standard ensures wide compatibility with most street light fixtures; 0-10V provides stable, smooth and widely supported analog dimming for reliable brightness adjustment.
