Specifications
Brand Name :
LongJoin
Model Number :
JL-246CR
Place of Origin :
China
Price :
negotiable
Packaging Details :
Different packaging methods are adopted according to different modes of transport.
Payment Terms :
Western Union,MoneyGram,T/T
Rated Voltage :
120~277VAC
Dimming Output :
0~10VDC
Wireless Communication :
RS485(up) Zigbee(down)
Operate Levels :
Turn-On＜100Lx，Turn-Off＞150Lx / per client request
Certifications :
RoHS,UL,CE
Real-world Scenarios :
Municipal Streetlight Networks
Description
Smart IoT Dimming Photocontrol Zigbee 485 Master Gateway Collector OTA Firmware Update
JL-246CR Smart IoT Dimming Photocontrol Zigbee-485 Master Gateway / Collector

Product Summary
JL-246CR photocontrol can apply to independent control application or system control application, such as roads, exhibitions, schools, shopping malls, supermarkets, factories, parks and so on. This product consists a ZigBee communication module as well as a RS485 communication module to allow its ZigBee group remoted with a smart IoT management system.

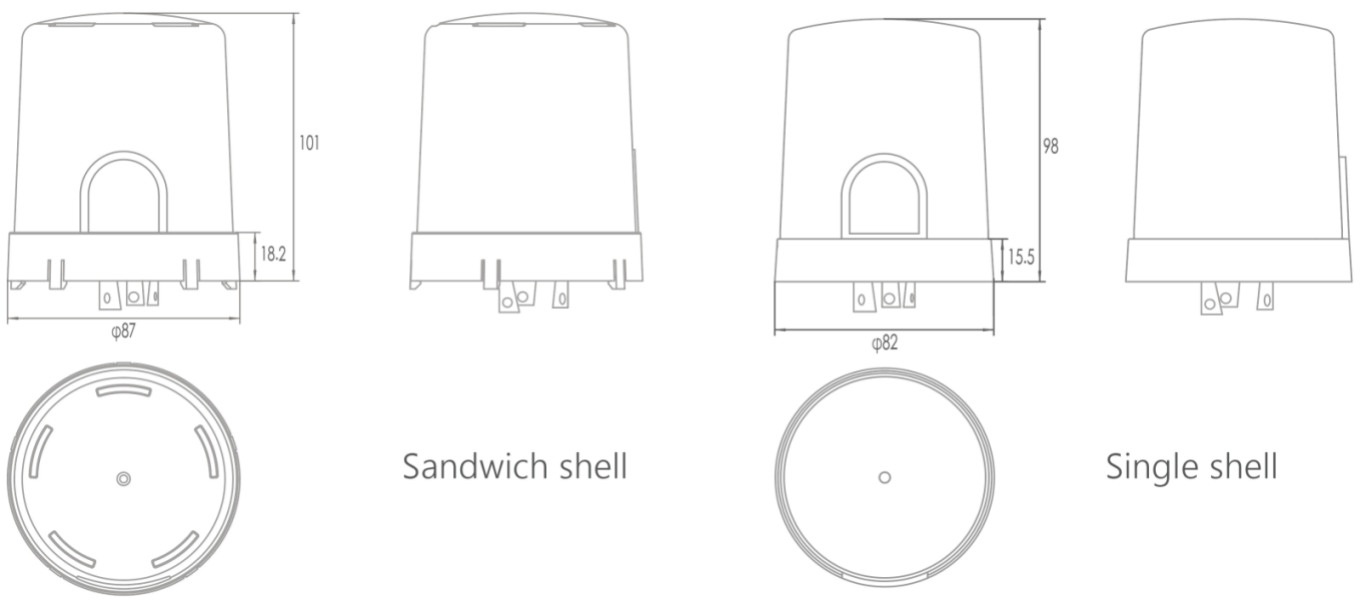

Product Dimensions
Smart IoT Dimming Photocontrol Zigbee 485 Master Gateway Collector OTA Firmware Update
Product Features
  • ANSI C136.41 Twist-lock
  • 0~10V Dimming
  • Surge protection level: 6KV/3KA differential mode
  • Sandwich cover for Long Life
  • Multi-Volts Application
  • IR-fiRS485red Phototransistor
Technical Specifications
Model No. JL-246CR
Rated Voltage 120~277VAC
Applicable Voltage Range 105~305VAC
Rated Frequency 50/60Hz
Dimming Output 0~10VDC
Wireless Communication (up) RS485
Wireless Communication (down) Zigbee
Spectral Acquisition Range 350~1100nm; Peak wavelength 590nm
Rated Loading 1000W Tungsten; 1000VA Ballast; 8A@120V 5A@208-277 e-Ballast
Operate Levels Turn-On＜100Lx,Turn-Off＞150Lx / per client request
Power Consumption 1.2W static,3.4W dynamic
Operating Temperature -40℃~70℃
Operating Humidity 96%
Failure mode Fail-On
Shell material PC+PC
High protection Double Shell
Surge protection level 6KV/3KA differential mode
IP level Default IP66
Factory Settings Remote control+Adaptive mode
FCC ●
Certifications Smart IoT Dimming Photocontrol Zigbee 485 Master Gateway Collector OTA Firmware Update
Criterion IEC61000-4-5;IEC61000-4-2;IEC61000-4-3; IEC61000-4-6;GB/T 17743-2017;IEC61000-4-4; IEC61000-4-11;IEC61000-3-2;GB/T2423.10-2008; UL94-V0;
Frequently Asked Questions
Q1: What is a Smart IoT Dimming Photocontrol with Zigbee 485 Master Gateway Collector and OTA Firmware Update?
A: It is an intelligent lighting control device that integrates Zigbee and RS485 communication, acts as a master gateway collector for networking multiple dimming photocontrols, and supports remote OTA firmware updates.
Q2: What is the function of the Zigbee & RS485 dual-mode master gateway?
A: It serves as a central coordinator to build a local wireless & wired hybrid network, connecting and managing a large number of photocontrols and dimming devices for stable data collection and unified control.
Q3: How does OTA firmware update benefit this gateway collector?
A: OTA allows wireless, remote firmware upgrades without on-site operation, improving device stability, adding new functions, and fixing bugs remotely to reduce maintenance cost.
Q4: What advantages does RS485 bring to the IoT dimming system?
A: RS485 supports long-distance wired transmission, strong anti-interference, and stable networking in industrial and outdoor environments, complementing the flexibility of Zigbee wireless.
Q5: In which lighting scenarios is this master gateway most suitable?
A: It is ideal for large-scale intelligent lighting projects such as urban roads, parks, campuses, industrial parks, and commercial complexes that require centralized control and networking.
