Specifications
Brand Name :
LongJoin
Model Number :
JL-246CG
Place of Origin :
China
Price :
negotiable
Packaging Details :
Different packaging methods are adopted according to different modes of transport.
Payment Terms :
Western Union,MoneyGram,T/T
Rated Voltage :
120~277VAC
Dimming Output :
0~10VDC
Dimming Output Wireless Communication（up） :
LTE-Cat1(up) Zigbee(down)
Operate Levels :
Turn-On＜100Lx，Turn-Off＞150Lx / per client request
Certifications :
RoHS,UL,CE
Real-world Scenarios :
Major Traffic Arteries
Description
Smart IoT Dimming Photocontrol Zigbee Master With LTE Gateway Collector GPS/GNSS Positioning
JL-246CG Smart IoT Dimming Photocontrol Zigbee-Master With LTE Gateway / Collector

This photocontrol can apply to independent control applications or system control applications, such as roads, exhibitions, schools, shopping malls, supermarkets, factories, parks and more.

This product includes a Zigbee communication module as well as an LTE communication module to allow its Zigbee group to be remotely managed with a smart IoT management system.

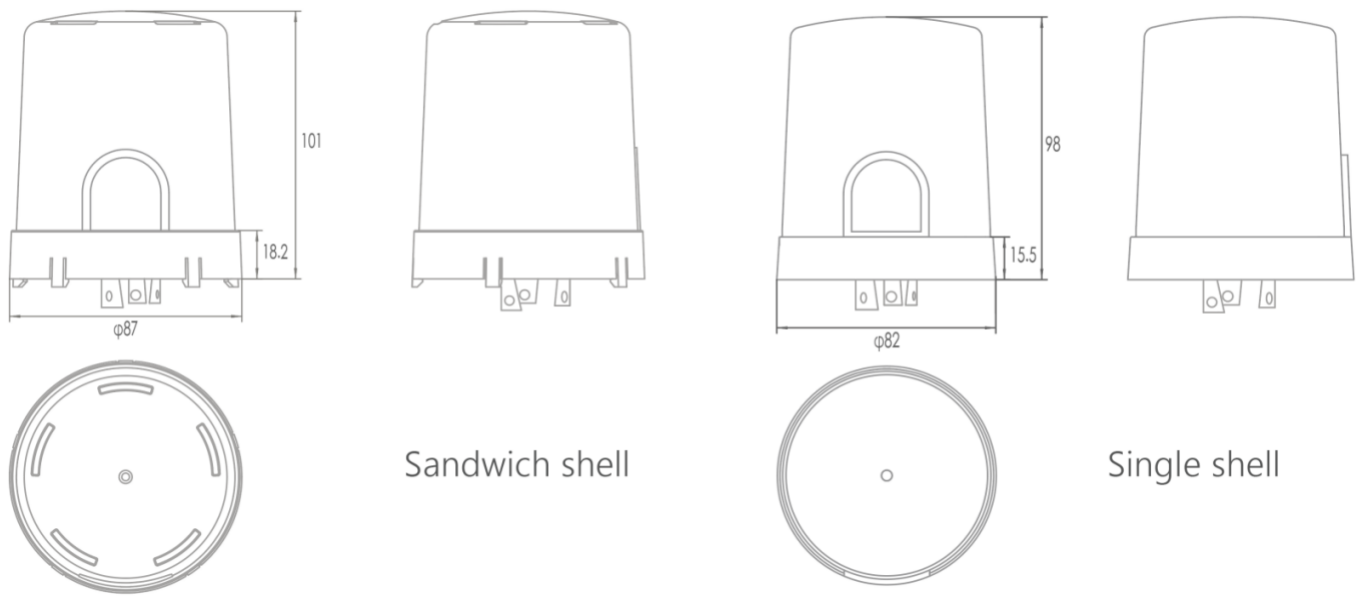

Product Size
Smart IoT Dimming Photocontrol Zigbee Master With LTE Gateway Collector GPS/GNSS Positioning
Product Features
  • ANSI C136.41 Twist-lock
  • 0~10V Dimming
  • Surge protection level: 6KV/3KA differential mode
  • Sandwich cover for Long Life
  • Multi-Volts Application
  • IR-filtered Phototransistor
Specifications
Model No.JL-246CG
Rated Voltage120~277VAC
Applicable Voltage Range105~305VAC
Rated Frequency50/60Hz
Dimming Output0~10VDC
Wireless Communication(up)LTE-Cat1
Wireless Communication(down)Zigbee
Spectral Acquisition Range350~1100nm; Peak wavelength 590nm
Rated Loading1000W Tungsten,1000VA Ballast,8A@120VAC/5A@208-277VAC e-Ballast
Operate LevelsTurn-On＜100Lx,Turn-Off＞150Lx / per client request
Power Consumption1.2W static,10W dynamic
Ambient Temperature-40℃~70℃
Related Humidity96%
Fail ModeFail-On
Shell materialPC+PC
High protectionDouble Shell
Surge protection level6KV/3KA differential mode
IP levelDefault IP66
Factory SettingsRemote control+Adaptive mode
FCC●
CertificationsSmart IoT Dimming Photocontrol Zigbee Master With LTE Gateway Collector GPS/GNSS Positioning
CriterionIEC61000-4-5; IEC61000-4-2; IEC61000-4-3, IEC61000-4-6; GB/T 17743-2017; IEC61000-4-4; IEC61000-4-11; IEC61000-3-2; GB/T2423.10-2008; UL94-V0;
Frequently Asked Questions
Q1: What is a Smart IoT Dimming Photocontrol Zigbee Master with LTE Gateway Collector?
A: It is an intelligent IoT dimming photocontrol that acts as a Zigbee master node, working with an LTE gateway collector to realize wireless networking and remote management for lighting systems.
Q2: What role does the Zigbee master play in this smart photocontrol system?
A: The Zigbee master serves as the core coordinator, establishing a local wireless network to connect and manage multiple dimming photocontrols, ensuring stable and low-power communication.
Q3: What is the function of the LTE gateway collector in this solution?
A: The LTE gateway collector uploads data from the Zigbee local network to the cloud platform via cellular network, supporting remote monitoring, control and data statistics of the entire lighting system.
Q4: What advantages does this Zigbee + LTE hybrid networking bring to smart lighting?
A: It combines low-cost, large-capacity Zigbee local networking with wide-coverage LTE remote transmission, achieving stable, scalable and easy-to-deploy smart lighting control.
Q5: What lighting scenarios is this Zigbee master IoT dimming system suitable for?
A: It is widely used in street lighting, residential areas, parks, campuses and industrial zones that require centralized dimming control and unified cloud management.
