Specifications
Brand Name :
LongJoin
Model Number :
JL-224B
Place of Origin :
China
Price :
negotiable
Packaging Details :
Different packaging methods are adopted according to different modes of transport.
Payment Terms :
Western Union,MoneyGram,T/T
Rated Voltage :
220~240VAC(224B) 120~277VC(224C)
Operate Levels :
On＜20Lx，off＞80Lx
Power Consumption :
8W@240VAC(224B) / 3W@120VAC(224C)
Fail Mode :
Fail-Off
Certifications :
RoHS,UL,CE,CB,UKCA
Real-world Scenarios :
Next-Gen Smart Poles
Description
PECU UK Version Steeple Top Cover Street Garden Passage Doorway Lighting
JL-224B Photocontrol

The photocontrol JL-224B is designed to automatically control street lighting, garden lighting, passage lighting, and doorway lighting based on ambient natural lighting levels.

This product features electronic circuits with a phototransistor sensor and includes a built-in surge arrester (MOV). The JL-224B model specifically incorporates an omnidirectional face-top sensor compliant with BS5972 standards for UK applications.

A preset 5-30 second time-delay prevents redundant operation caused by spotlights or lightning during nighttime. The product utilizes twist lock terminals meeting BS5972 requirements and conforms to CE and RoHS directives.

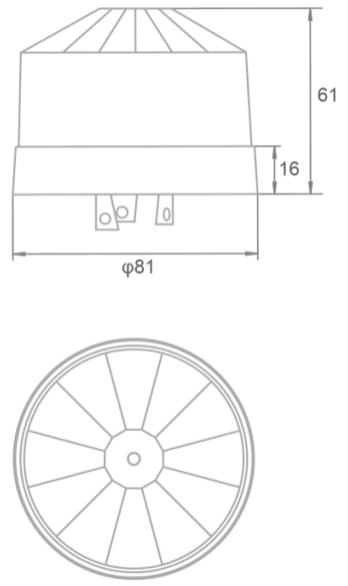

Product Dimensions
PECU UK Version Steeple Top Cover Street Garden Passage Doorway Lighting
Product Features
  • BS5972 Compliant
  • ANSI C136.10 Twist-lock Compatible
  • 5-30 Second Time Delay
  • Multiple Voltage Options Available
  • Built-in Surge Arrester
  • Phototransistor Sensor Technology
  • Compatible with BS5972 Twist-lock Receptacles
Technical Specifications
Specification JL-224B JL-224C
Rated Voltage 220~240VAC 120~277VAC
Applicable Voltage Range -- 105~305VAC
Rated Frequency 50/60Hz
Rated Loading 1000W Tungsten, 1000VA Ballast
Power Consumption 8W@240VAC 3W@120VAC
Operate Levels On＜20Lx, off＞80Lx
Ambient Temperature -40℃ ~ +70℃
Relative Humidity 96%
Fail Mode Fail-Off
Shell Material PC
IP Level IP54
Certifications PECU UK Version Steeple Top Cover Street Garden Passage Doorway Lighting PECU UK Version Steeple Top Cover Street Garden Passage Doorway Lighting
Frequently Asked Questions
What is the PECU UK Version lighting?

It is a dedicated outdoor lighting fixture with steeple top cover design specifically configured for UK market requirements.

Is this product suitable for the UK market?

Yes, it is specially designed as the UK version to match local usage standards and compliance requirements.

What is the structural feature of this lighting?

It adopts a steeple top cover structure that provides excellent protection against environmental elements while offering an attractive decorative appearance.

What application scenarios are suitable for this lighting?

It is widely used in street lighting, garden lighting, passage lighting, and doorway lighting applications.

What are the advantages of the steeple top cover design?

The design provides superior rain and dust resistance while enhancing the overall aesthetic appearance of the lighting fixture.
