Specifications
Brand Name :
LongJoin
Model Number :
JL-215C
Place of Origin :
China
Price :
negotiable
Packaging Details :
Different packaging methods are adopted according to different modes of transport.
Payment Terms :
Western Union,MoneyGram,T/T
Rated Voltage :
120~277VAC
Power Consumption :
0.5W Max.
Operate Levels :
10~30Lx Turn-On / 30~60Lx Turn-Off
IP level :
IP54 / IP65 / IP67
Certifications :
RoHS,UL,CE
Real-world Scenarios :
Urban Pedestrian Zones
Description

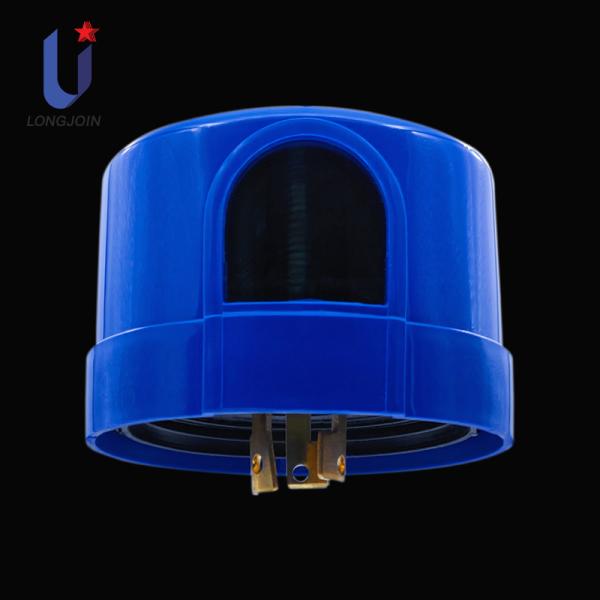

JL-215C Improved Electronic Photocontrol Higher Power Factor

Product Summary

The photocontrol JL-215C is applicable to control the street lighting, garden lighting, passage lighting and doorway lighting automatically in accordance with the ambient natural lighting level.

This product is designed with electronic circuits with Phototransistor and a surge arrester (MOV) is provided. Especially, model JL-215C provides much better power factor performance than JL-205C series.

Further, a preset 3-20 seconds time-delay might avoid redundancy operation due to spotlight or lightning during the night time.

This product provides Twist-lock terminals meeting the requirements of ANSI C136.10 and the Standard for Plug-In, Locking Type Photocontrols for Use with Area Lighting ANSI/UL773.

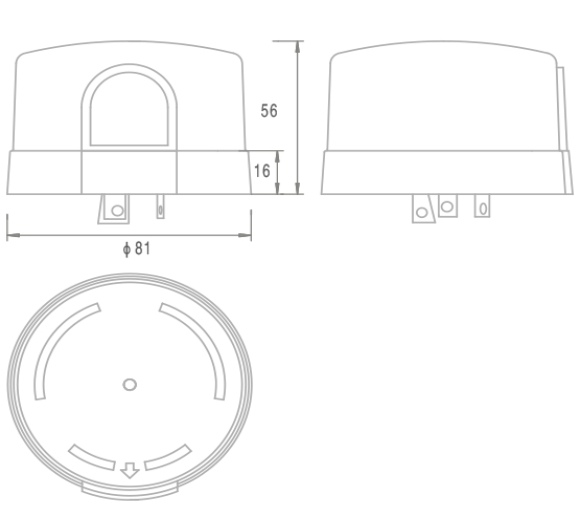

Product size

Improved Electronic Photocontrol Higher Power Factor Fail-safe Operation

Product Features

  • ANSI C136.10 Twist-lock

  • Time Delay 3-20s

  • Surge Arrester Built-in

  • IR-Filtered Phototransistor

  • Higher Power Factor *

Note:* Compared to JL-205C

Specifications

Model No.

JL-215C

Rated Voltage

120~277VAC

Rated Frequency

50/60Hz

Applicable Voltage Range

105~305VAC

Rated Loading

1000W Tungsten, 1800VA Ballast

8A@120VAC/5A@208-277VAC e-Ballast

Power Consumption

0.5W Max.

Operate Levels

10~30Lx Turn-On / 30~60Lx Turn-Off

Ambient Temperature

-40℃ ~ +70℃

Related Humidity

96%

Fail Mode

Fail-On

Shell material

optional Sandwich cover

FCC

●

IP level

IP54 / IP65 / IP67

Certifications

Improved Electronic Photocontrol Higher Power Factor Fail-safe Operation

FAQs

Q1: What kind of product is this Improved Electronic Photocontrol?
A: It is an upgraded electronic photocontrol for automatic lighting on/off control.
Q2: What is the key advantage of this improved electronic photocontrol?
A: It features a higher power factor for more efficient energy usage.
Q3: Why is higher power factor important for photocontrols?
A: It reduces energy loss, lowers power consumption and improves overall electrical efficiency.
Q4: What makes this photocontrol different from standard versions?
A: It uses improved circuit design to achieve higher power factor and better performance.
Q5: Where is this high power factor photocontrol mainly used?
A: It is widely used in street lights, garden lights and outdoor lighting systems.
