Type 2 Surge Protection Device 3 Phase 220V 385V 40kA 80kA For Electrical Panel
Type 2 Surge Protection Device 3 Phase 220V 385V 40kA 80kA For Electrical Panel
Type 2 Surge Protection Device 3 Phase 220V 385V 40kA 80kA For Electrical Panel
Type 2 Surge Protection Device 3 Phase 220V 385V 40kA 80kA For Electrical Panel
Type 2 Surge Protection Device 3 Phase 220V 385V 40kA 80kA For Electrical Panel
Type 2 Surge Protection Device 3 Phase 220V 385V 40kA 80kA For Electrical Panel
Type 2 Surge Protection Device 3 Phase 220V 385V 40kA 80kA For Electrical Panel
Type 2 Surge Protection Device 3 Phase 220V 385V 40kA 80kA For Electrical Panel
Specifications
Brand Name :
LLH
Model Number :
LPM 80-385/3+NPE
Place of Origin :
China
MOQ :
1 piece
Price :
$42/pcs
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
5000-10000 pieces/mouth
Delivery Time :
7-15 days
Packaging Details :
Box
Up :
L-N：≤2.2kV N-PE：≤1.5kV
Standard :
GB/T 18802.11-2020
SPD type :
T2
Chip :
LKD MOV Chip
Description
About this item
1.【385V AC High-Capacity Surge Protection】Provides reliable protection against power surges and lightning-induced over-voltages in standard AC electrical systems. Features a 385V AC operating voltage and a 80 kA discharge capacity to safeguard connected equipment
2.【4P(3+NPE) Configuration for Complete Three-Phase Safety】The 3P+N design provides independent protection for both the live and neutral conductors in a three-phase system. This comprehensive coverage is essential for safety in common power supply systems like TT and TN-S, offering enhanced protection compared to three-pole devices
3.【Automatic Safety Disconnect】Built-in disconnector removes the device from the circuit if it fails, with a visual indicator (white=normal, red=fault)
4.【Easy DIN Rail Mounting】Compact design installs quickly on standard 35mm DIN rails in electrical panels
5.【Versatile for AC Power Systems】Ideal for surge protection in a wide range of AC electrical environments. Suitable for installation in building distribution panels, server/telecom rooms, elevator controls, HVAC systems, and residential electrical cabinets to safeguard connected equipment.


Product features
● The module is designed to be pluggable and anti vibration.
● Built in ultra-low temperature release mechanism.
● Suitable for installation in LPZ 0B-1 and subsequent lightning protection zones, used as lightning protection devices for three-phase power supply systems.


Product Specification
Compliant with standard GB/T 18802.11-2020
SPD Type T2
SPD Models LPM 80-385/3+NPE
Electrical Parameters
Nominal operating voltage (Un) 220Vac (50 Hz)
Maximum continuous operating voltage (Uc) 385Vac (50 Hz)
Nominal discharge current (8/20 μs)In 40kA (8/20 μs)
Maximum discharge current (Imax) 80kA (8/20 μs)
Voltage protection levels (In@Up)

L-N:≤2.2KV

N-PE:≤1.5KV
Response time (tA)

L-N:≤25ns
N-PE:≤100ns
Protection modes L1, L2, L3-N, N-E
Mechanical Parameters
Installation method DIN 35 mm rail
Screw torque 5 Nm
Stripping length 12 mm
Wiring cross-sectional area 2.5 mm²–32 mm²

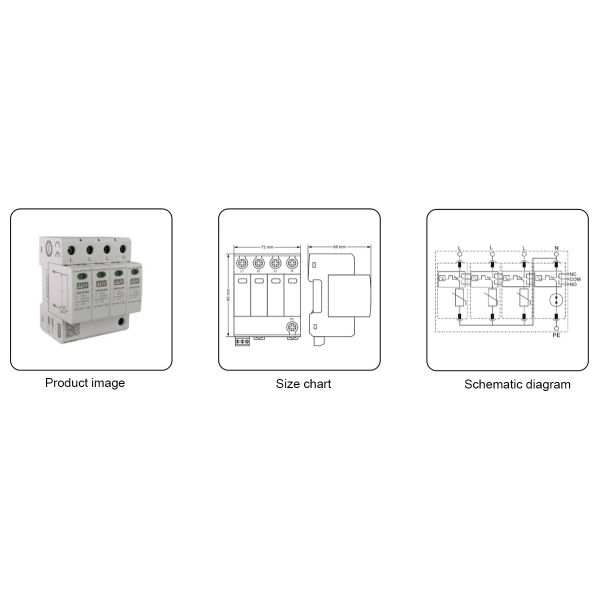

Product dimensions 90 mm × 72 mm × 75 mm
Shell material and flame retardancy grade Mineral nylon PA6, V0
Alarm system
Degradation indicator

Green window: OK.

Red window :Fail
Remote contact type Normally closed/Normally open switching contact
Remote contact switching capacity 125Vac/1A,125Vdc/0.2A
Maximum wiring capacity for remote contacts 2.5mm²
Operating environment
Installation Indoor
Shell protection level
IP20
Temperature range
-40℃…+80℃
Humidity range
Relative humidity ≤ 95% (max 40 ℃)
