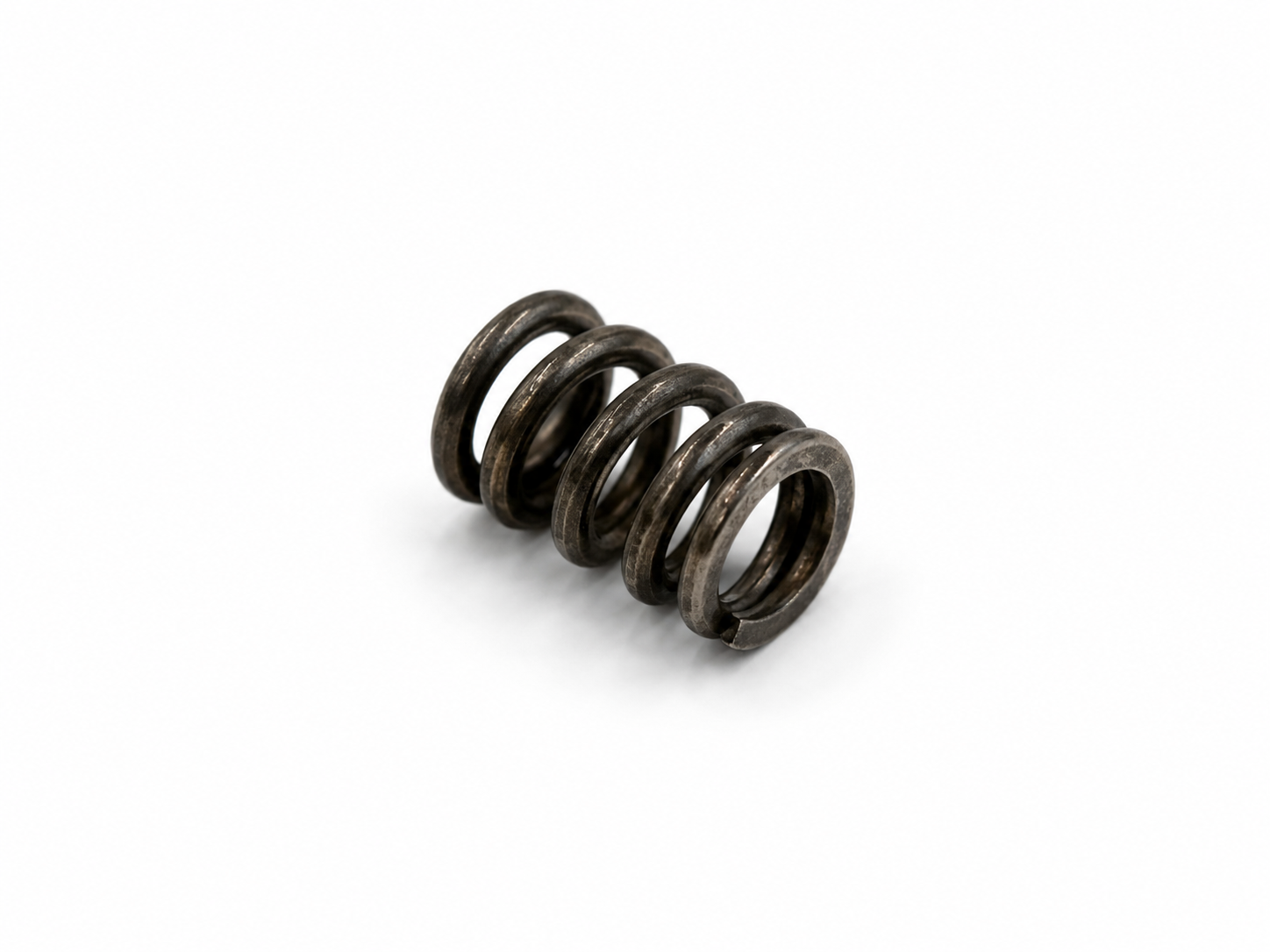

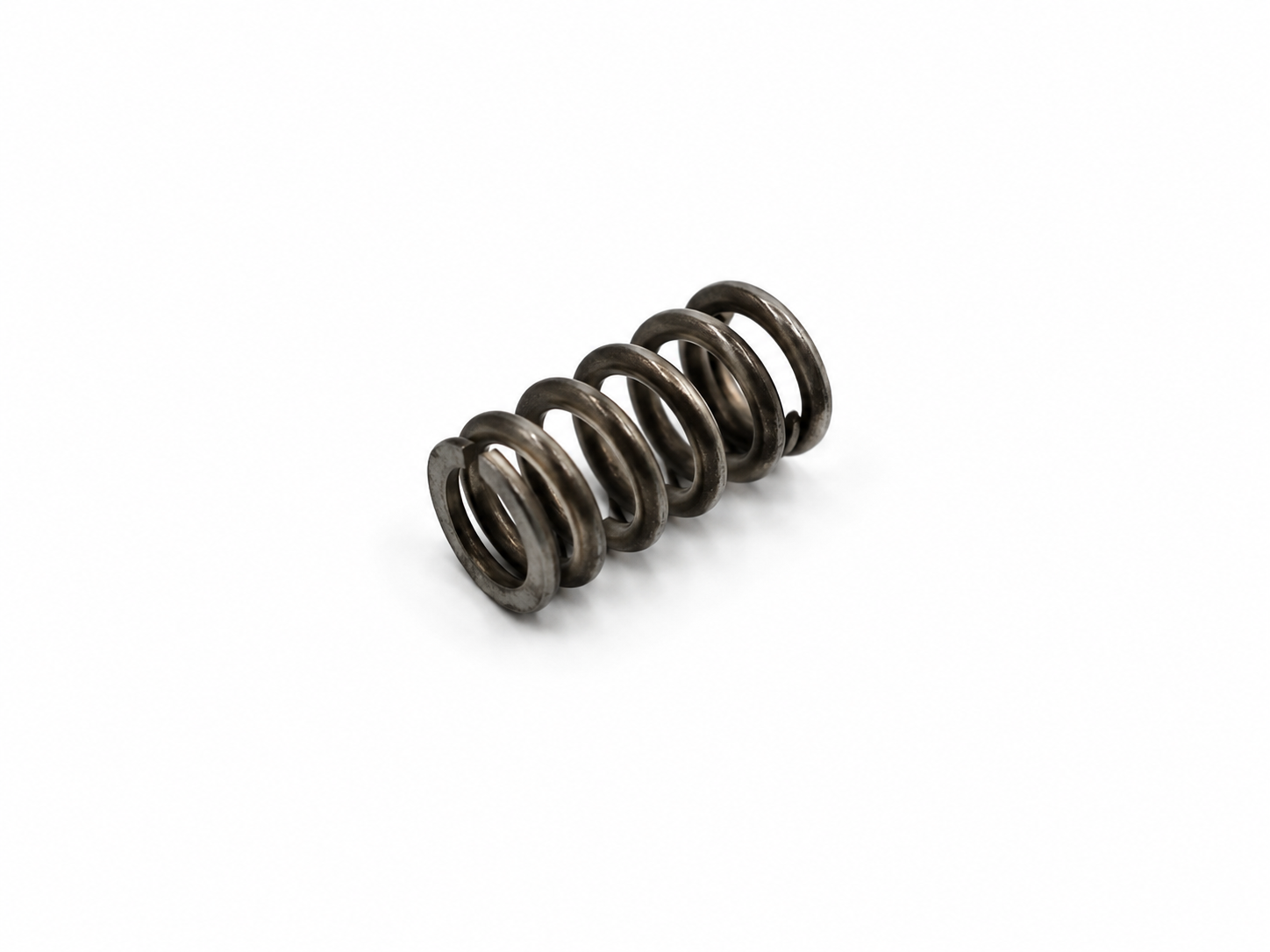

Industrial Chrome Vanadium Helical Compression Spring 3 Inch IATF16949 Certificated
Industrial Chrome Vanadium Helical Compression Spring 3 Inch IATF16949 Certificated
Industrial Chrome Vanadium Helical Compression Spring 3 Inch IATF16949 Certificated
Industrial Chrome Vanadium Helical Compression Spring 3 Inch IATF16949 Certificated
Specifications
Material :
Stainless Steel (304, 316, 302), Music Wire, Carbon Steel, Oil Tempered Wire, Chrome Silicon, Chrome Vanadium, Inconel X750, Monel, Hastelloy, Phosphor Bronze, Beryllium Copper, Titanium
Payment Terms :
L/C,T/T
OEM/ODM :
Supported
Surface Treatment :
Zinc Plated, Nickel Plated, Chrome Plated, Black Oxide, Electrophoresis, Powder Coating, Passivation, None
Application :
Automotive, Medical, s, Industrial Equipment, Agricultural Machinery, Aerospace, Consumer Products
End Type :
Closed Ends, Open Ends, Ground Ends, Closed & Ground Ends
Price :
Negotiation
MOQ :
1 set
Sample :
Available
Model Number :
Compression Spring
Certification :
ISO14001；ISO13485；IATF16949
Place of Origin :
China
Brand Name :
Liyu
Name :
Compression Spring
Packaging Details :
Standard export packaging
Description
Compression spring·CUSTOMIZATION

Choosing the right compression spring manufacturing partner ensures product quality and supply stability. We provide comprehensive spring production solutions including design support, material selection, precision manufacturing, quality inspection, and export services. Our commitment is to deliver reliable compression springs that meet global customer requirements and create long-term cooperation opportunities.

Technical parameters of cylindrical spiral compression spring

Industrial Chrome Vanadium Helical Compression Spring 3 Inch IATF16949 Certificated
To customize the compression spring, you need to provide the following necessary parameter information:
Wire diameter d: mm(Note: the diameter of the spring wire)Industrial Chrome Vanadium Helical Compression Spring 3 Inch IATF16949 Certificated
Outer diameter D2: mm(Note: the diameter of the outer circle of the spring)
Length L0: mm(Note: the free height of the spring)
Number of circles Na: circle(Note: the total number of turns of the spring)
For customized compression springs, you also need to provide the following technical requirements:
turn around:(Description: Left-handedRight-handed)
Material requirements:(Such as: stainless steel wire SUS, carbon steel wire SWC, piano wire SWP, copper wire... etc.)
Surface treatment:(Description: blackening/galvanizing/nickel plating/chrome plating/baking paint/powder spraying/electrophoresis/shot peening/dacromet/electrolytic polishing...etc.)
End form:(Explanation: TightenGrindTightly polish)
Strength requirements:(Note: Elastic performance, other technical requirements, etc.)

Spring end characteristics

Industrial Chrome Vanadium Helical Compression Spring 3 Inch IATF16949 Certificated
CharacteristicParameter







Structural Features

Cylindrical
Hourglass
Shrink both ends
Fixed pitch
Conical
Closed at both ends
The ends are flat
Variable pitch
Barrel
Two End opening
The ends are not flat






Surface treatment

Blackening
Shot Peening
Apply anti-rust oil
Zinc plating
Polishing
Electrolytic polishing
Nickel plating
Dacromet
Teflon spray








Materials

Carbon spring steel wire SWC
Piano wire SWPB
Stainless steel wire SUS301, SUS302, SUS304, SUS316, SUS631
65Mn
82B
55CrSi (SWOSC-V)
Nickel-plated wire, galvanized wire
Copper wire, phosphor copper wire, beryllium copper wire
Square wire, flat wire, semicircular wire
Alloy material wire
Other special specifications steel wire
Wire diameter specifications0.1~6mm

Industrial Chrome Vanadium Helical Compression Spring 3 Inch IATF16949 CertificatedIndustrial Chrome Vanadium Helical Compression Spring 3 Inch IATF16949 Certificated
