Precision Light Duty Compression Springs Coil Replacement 3mm Zinc Plated
Precision Light Duty Compression Springs Coil Replacement 3mm Zinc Plated
Precision Light Duty Compression Springs Coil Replacement 3mm Zinc Plated
Precision Light Duty Compression Springs Coil Replacement 3mm Zinc Plated
Specifications
Application :
Automotive, Medical, s, Industrial Equipment, Agricultural Machinery, Aerospace, Consumer Products
MOQ :
1 set
Price :
Negotiation
Wire Diameter :
0.05–20 mm or Customized
Surface Treatment :
Zinc Plated, Nickel Plated, Chrome Plated, Black Oxide, Electrophoresis, Powder Coating, Passivation, None
Packaging Details :
Standard export packaging
Certification :
ISO14001；ISO13485；IATF16949
Material :
Stainless Steel (304, 316, 302), Music Wire, Carbon Steel, Oil Tempered Wire, Chrome Silicon, Chrome Vanadium, Inconel X750, Monel, Hastelloy, Phosphor Bronze, Beryllium Copper, Titanium
End Type :
Closed Ends, Open Ends, Ground Ends, Closed & Ground Ends
Brand Name :
Liyu
Model Number :
Compression Spring
Corrosion Resistance :
Standard / High / Marine Grade
Place of Origin :
China
OEM/ODM :
Supported
Payment Terms :
L/C,T/T
Name :
Compression Spring
Description
Compression spring·CUSTOMIZATION

Our customized compression spring design service helps customers create the ideal spring solution for their specific applications. Our engineers can assist with spring design optimization, material selection, load calculation, and production improvement. Whether you need a standard replacement spring or a completely new design, we provide professional support from concept to final production.

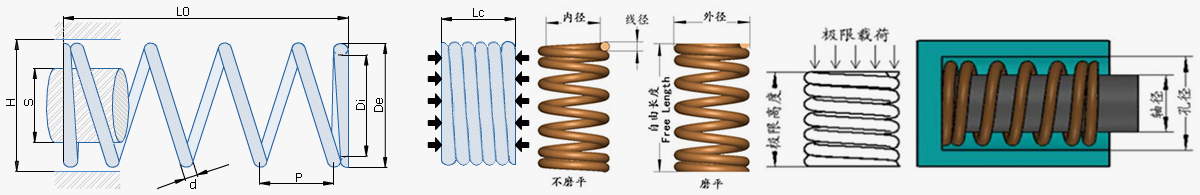

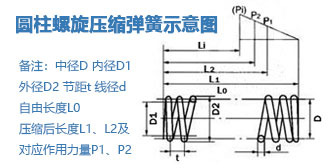

Technical parameters of cylindrical spiral compression spring

Precision Light Duty Compression Springs Coil Replacement 3mm Zinc Plated
To customize the compression spring, you need to provide the following necessary parameter information:
Wire diameter d: mm(Note: the diameter of the spring wire)Precision Light Duty Compression Springs Coil Replacement 3mm Zinc Plated
Outer diameter D2: mm(Note: the diameter of the outer circle of the spring)
Length L0: mm(Note: the free height of the spring)
Number of circles Na: circle(Note: the total number of turns of the spring)
For customized compression springs, you also need to provide the following technical requirements:
turn around:(Description: Left-handedRight-handed)
Material requirements:(Such as: stainless steel wire SUS, carbon steel wire SWC, piano wire SWP, copper wire... etc.)
Surface treatment:(Description: blackening/galvanizing/nickel plating/chrome plating/baking paint/powder spraying/electrophoresis/shot peening/dacromet/electrolytic polishing...etc.)
End form:(Explanation: TightenGrindTightly polish)
Strength requirements:(Note: Elastic performance, other technical requirements, etc.)

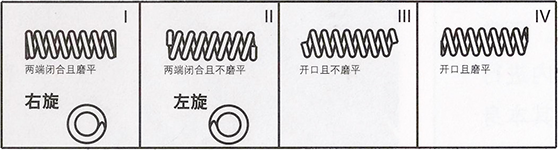

Spring end characteristics

Precision Light Duty Compression Springs Coil Replacement 3mm Zinc Plated
CharacteristicParameter







Structural Features

Cylindrical
Hourglass
Shrink both ends
Fixed pitch
Conical
Closed at both ends
The ends are flat
Variable pitch
Barrel
Two End opening
The ends are not flat






Surface treatment

Blackening
Shot Peening
Apply anti-rust oil
Zinc plating
Polishing
Electrolytic polishing
Nickel plating
Dacromet
Teflon spray








Materials

Carbon spring steel wire SWC
Piano wire SWPB
Stainless steel wire SUS301, SUS302, SUS304, SUS316, SUS631
65Mn
82B
55CrSi (SWOSC-V)
Nickel-plated wire, galvanized wire
Copper wire, phosphor copper wire, beryllium copper wire
Square wire, flat wire, semicircular wire
Alloy material wire
Other special specifications steel wire
Wire diameter specifications0.1~6mm

Precision Light Duty Compression Springs Coil Replacement 3mm Zinc PlatedPrecision Light Duty Compression Springs Coil Replacement 3mm Zinc Plated
