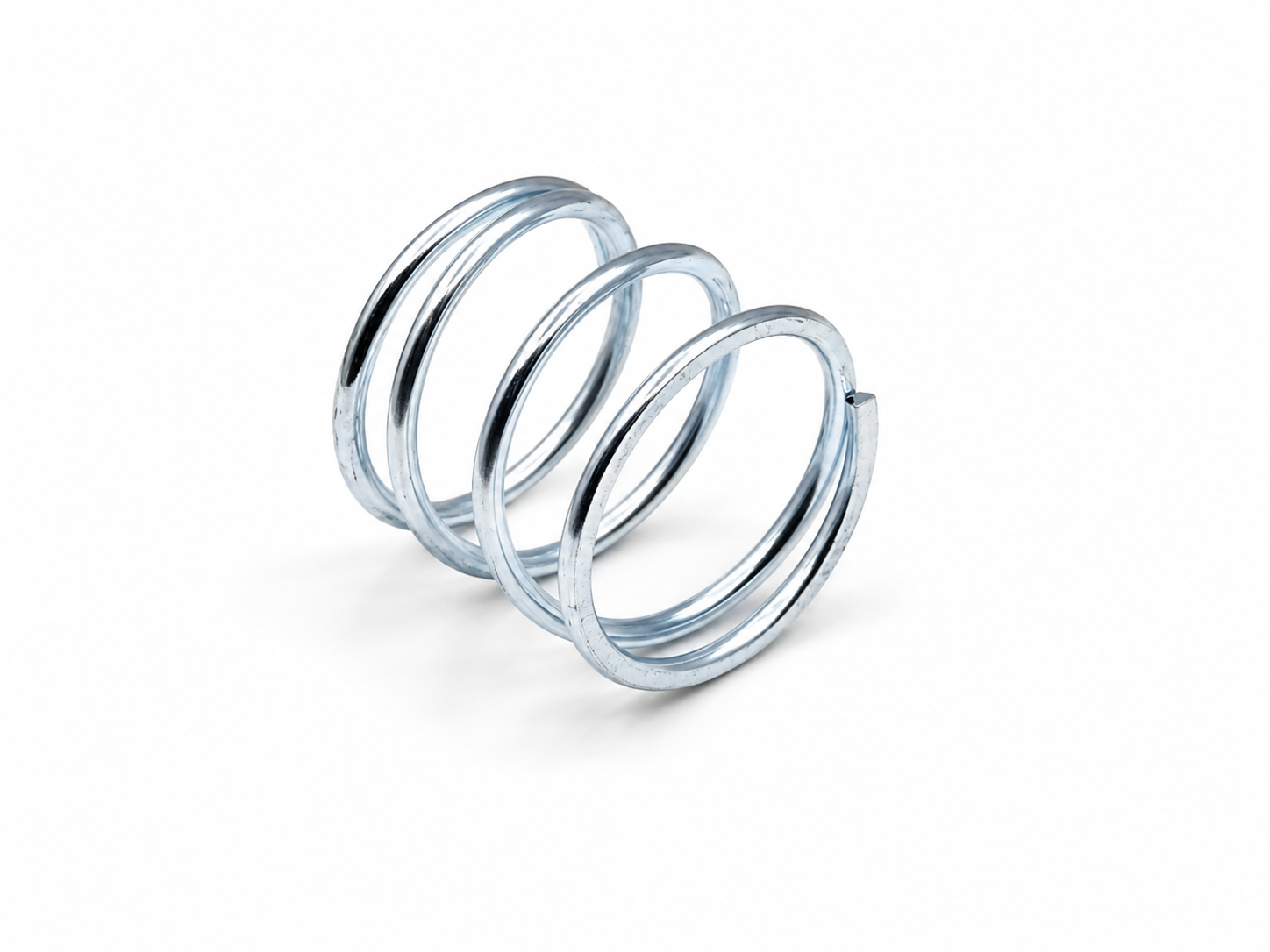

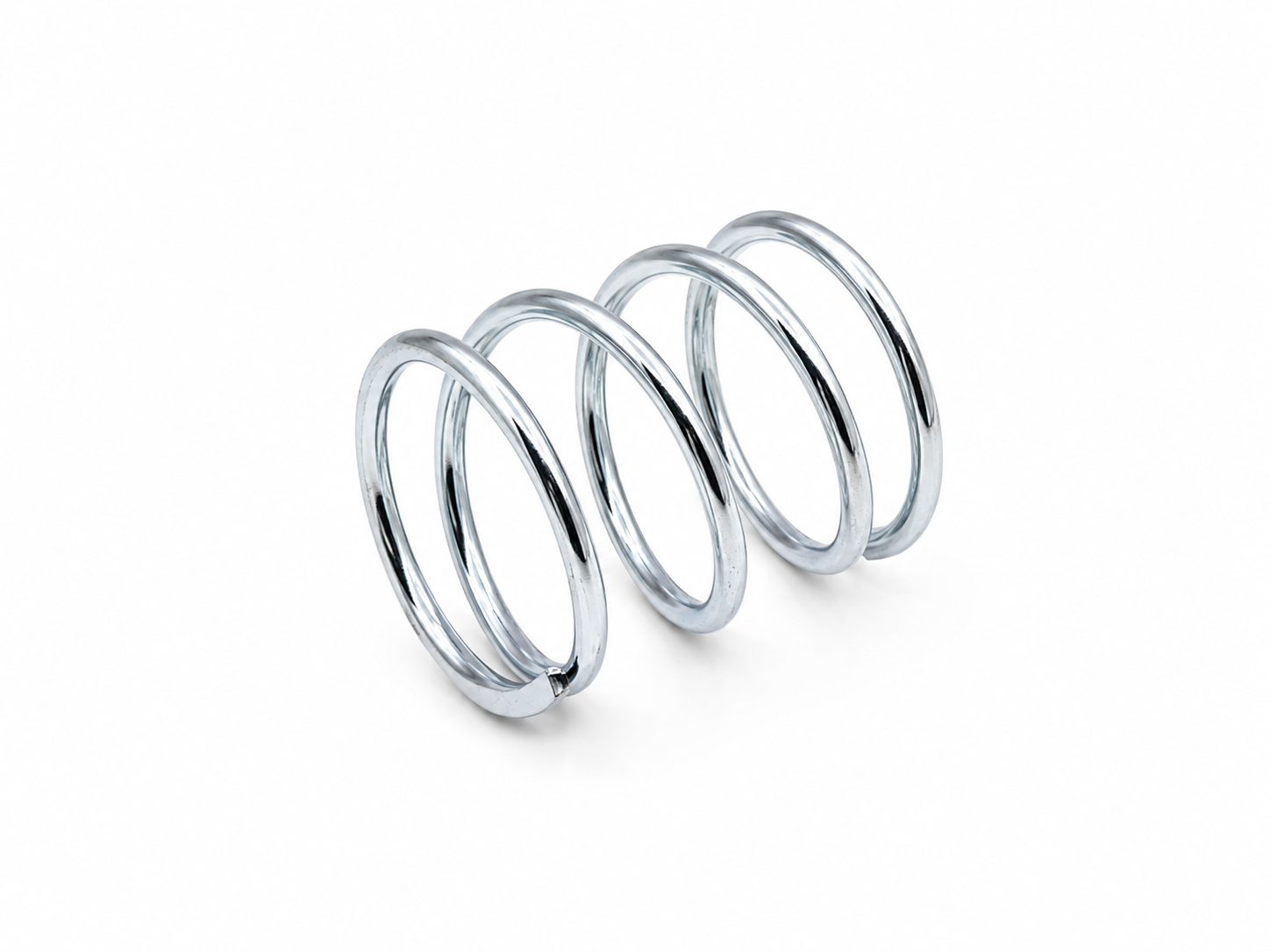

SUS302 55CrSi Galvanized Wire Micro Compression Springs 1 Inch 65Mn
SUS302 55CrSi Galvanized Wire Micro Compression Springs 1 Inch 65Mn
SUS302 55CrSi Galvanized Wire Micro Compression Springs 1 Inch 65Mn
SUS302 55CrSi Galvanized Wire Micro Compression Springs 1 Inch 65Mn
Specifications
End Type :
Closed Ends, Open Ends, Ground Ends, Closed & Ground Ends
Payment Terms :
L/C,T/T
Corrosion Resistance :
Standard / High / Marine Grade
Brand Name :
Liyu
Drawing :
PDF / CAD / STEP / IGES / DWG
Application :
Automotive, Medical, s, Industrial Equipment, Agricultural Machinery, Aerospace, Consumer Products
Surface Treatment :
Zinc Plated, Nickel Plated, Chrome Plated, Black Oxide, Electrophoresis, Powder Coating, Passivation, None
Place of Origin :
China
Certification :
ISO14001；ISO13485；IATF16949
Price :
Negotiation
Packaging Details :
Standard export packaging
Sample :
Available
OEM/ODM :
Supported
Model Number :
Compression Spring
Name :
Compression Spring
Material :
Stainless Steel (304, 316, 302), Music Wire, Carbon Steel, Oil Tempered Wire, Chrome Silicon, Chrome Vanadium, Inconel X750, Monel, Hastelloy, Phosphor Bronze, Beryllium Copper, Titanium
MOQ :
1 set
Description
Compression spring·CUSTOMIZATION

Precision coil compression springs are essential components in many mechanical systems where accuracy and durability are critical. Our springs are manufactured with precise winding technology to achieve consistent dimensions and stable mechanical properties. We support customized production for various industries, providing high-quality springs that meet strict tolerance requirements and application standards.

Technical parameters of cylindrical spiral compression spring

SUS302 55CrSi Galvanized Wire Micro Compression Springs 1 Inch 65Mn
To customize the compression spring, you need to provide the following necessary parameter information:
Wire diameter d: mm(Note: the diameter of the spring wire)SUS302 55CrSi Galvanized Wire Micro Compression Springs 1 Inch 65Mn
Outer diameter D2: mm(Note: the diameter of the outer circle of the spring)
Length L0: mm(Note: the free height of the spring)
Number of circles Na: circle(Note: the total number of turns of the spring)
For customized compression springs, you also need to provide the following technical requirements:
turn around:(Description: Left-handed Right-handed)
Material requirements:(Such as: stainless steel wire SUS, carbon steel wire SWC, piano wire SWP, copper wire... etc.)
Surface treatment:(Description: blackening/galvanizing/nickel plating/chrome plating/baking paint/powder spraying/electrophoresis/shot peening/dacromet/electrolytic polishing...etc.)
End form:(Explanation: TightenGrindTightly polish)
Strength requirements:(Note: Elastic performance, other technical requirements, etc.)

Spring end characteristics

SUS302 55CrSi Galvanized Wire Micro Compression Springs 1 Inch 65Mn
CharacteristicParameter







Structural Features

Cylindrical
Hourglass
Shrink both ends
Fixed pitch
Conical
Closed at both ends
The ends are flat
Variable pitch
Barrel
Two End opening
The ends are not flat






Surface treatment

Blackening
Shot Peening
Apply anti-rust oil
Zinc plating
Polishing
Electrolytic polishing
Nickel plating
Dacromet
Teflon spray








Materials

Carbon spring steel wire SWC
Piano wire SWPB
Stainless steel wire SUS301, SUS302, SUS304, SUS316, SUS631
65Mn
82B
55CrSi (SWOSC-V)
Nickel-plated wire, galvanized wire
Copper wire, phosphor copper wire, beryllium copper wire
Square wire, flat wire, semicircular wire
Alloy material wire
Other special specifications steel wire
Wire diameter specifications0.1~6mm

SUS302 55CrSi Galvanized Wire Micro Compression Springs 1 Inch 65MnSUS302 55CrSi Galvanized Wire Micro Compression Springs 1 Inch 65Mn
