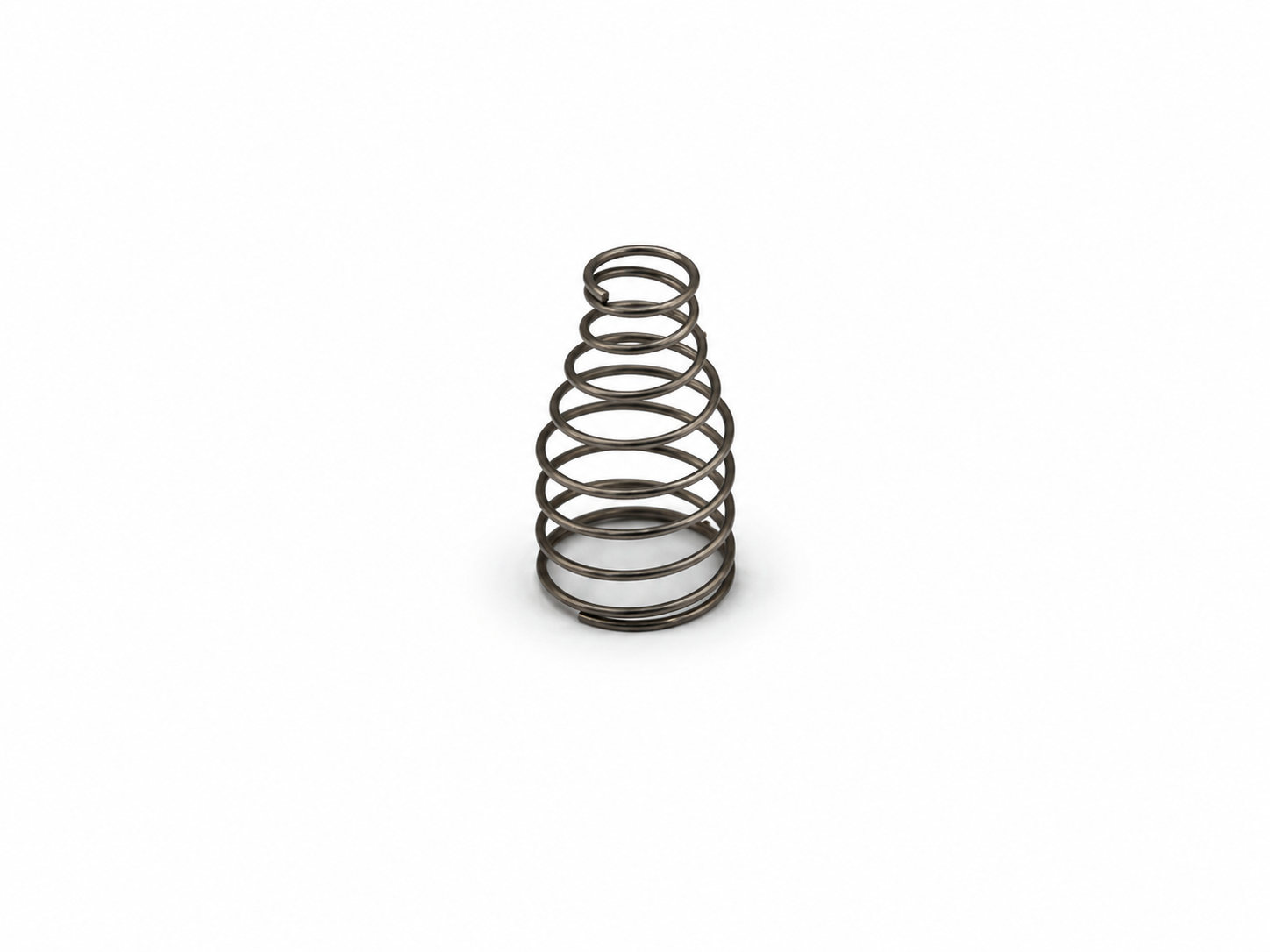

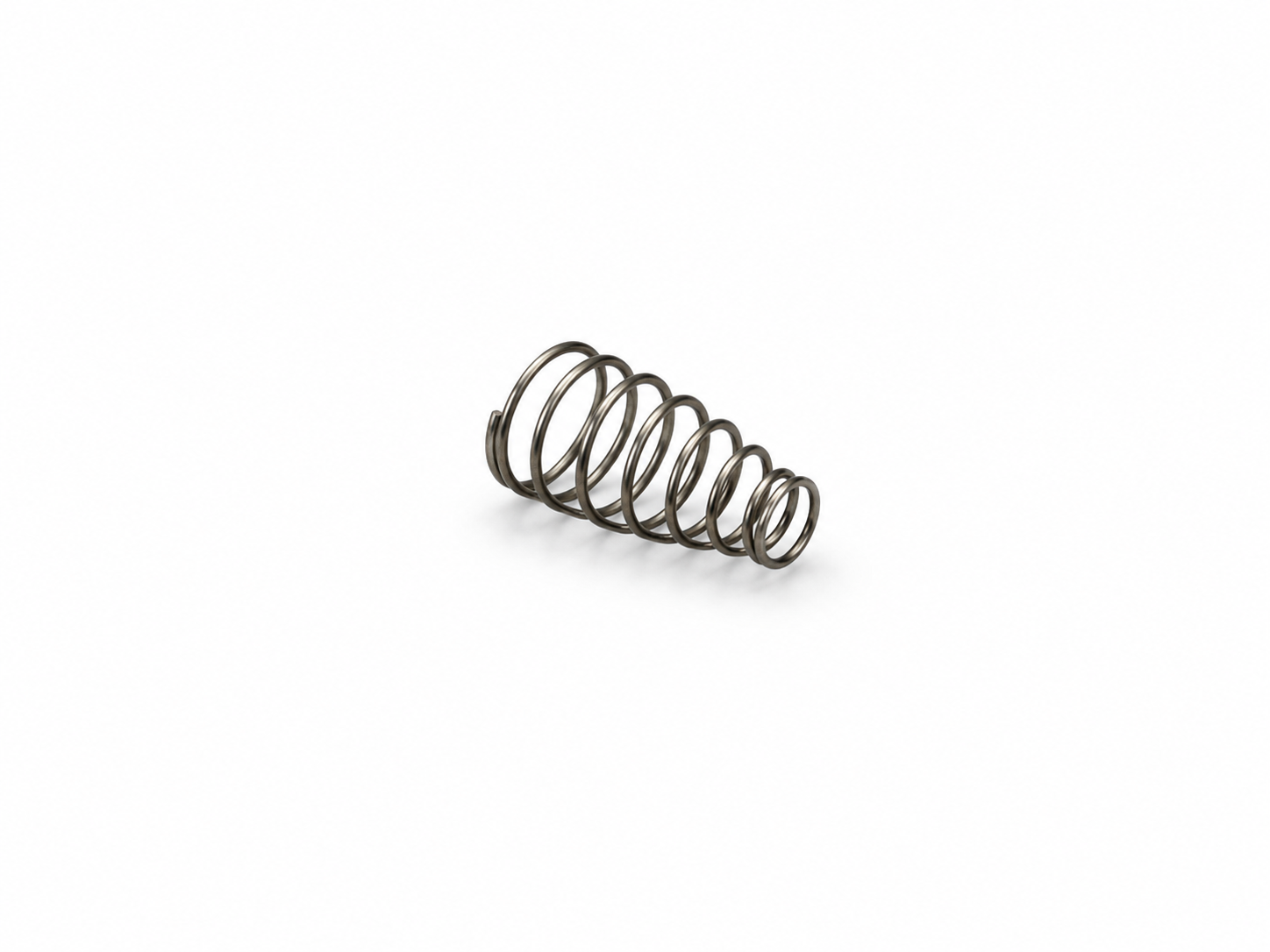

Miniature Cone Shaped Springs Coil Inconel X750 Monel Titanium
Miniature Cone Shaped Springs Coil Inconel X750 Monel Titanium
Miniature Cone Shaped Springs Coil Inconel X750 Monel Titanium
Miniature Cone Shaped Springs Coil Inconel X750 Monel Titanium
Specifications
Custom Service :
OEM & ODM Available
Certification :
ISO13485；ISO14001；IATF16949
Brand Name :
Liyu
Spring Type :
Compression Conical Spring / Tapered Spring
Place of Origin :
China
Wire Type :
Round Wire / Flat Wire
Price :
Negotiation
Payment Terms :
L/C,T/T
Dimensional Tolerance :
±0.01mm
Packaging Details :
Standard export packaging
MOQ :
1 set
Model Number :
Conical Springs
Material :
Stainless Steel / Carbon Steel / Alloy Steel
Structure Type :
Full Conical / Partial Conical / Barrel Shape
Product Type :
Conical Spring
Description
Conical Springs·CUSTOMIZATION

Precision conical compression springs are designed for applications requiring compact installation, high load capacity, and reliable force control. The tapered structure allows the spring to compress into a smaller solid height compared with traditional cylindrical compression springs. Our precision manufacturing process ensures excellent dimensional accuracy, stable spring rates, and long-term durability for demanding applications.

The parameters of the conical compression spring

Miniature Cone Shaped Springs Coil Inconel X750 Monel Titanium

  • d (spring wire diameter): This parameter describes the diameter of the spring wire.
  • S (Maximum Diameter of Mandrel) This parameter describes the maximum diameter of the spring shaft in industrial applications.
  • De (outer diameter of the outsole): the outer diameter of the widest end of the spring.
  • De (outer diameter of small bottom): the outer diameter of the narrowest end of the spring.
  • H (minimum aperture): This is the diameter of the minimum space required for the normal operation of the spring.
  • Lc (compressed length): The theoretical length of the spring when each coil is in contact. For most tower springs, this value is equal to the wire diameter.
  • L0 (Natural Length): The length of the spring in its natural state after being compressed once.
  • R Spring stiffness: This parameter represents the load change per unit deformation of the spring. Unit calculation: 1 DaN/mm = 10 N/mm (Newton/mm), tolerance ±15%.
  • L1 & F1 (length L1 of the spring under load F1): Load F1 and length L1 can be calculated with this formula: F1 = (L0-L1)* R, and then calculate the length L1: L1 = L0-F1/R
Characteristic Parameter

Structural Features

 Cylindrical
Conical
Barrel
Hourglass
Closed at both ends
Two End opening
Shrink both ends
The ends are flat li>Variable pitch
The ends are not flat
Fixed pitch

Surface treatment

 Blackening
Shot Peening
Apply anti-rust oil
Zinc plating
Polishing
Electrolytic polishing
Nickel plating
Dacromet
Teflon spray

Materials

 Carbon spring steel wire SWC
Piano wire SWPB
Stainless steel wire SUS301, SUS302, SUS304, SUS316, SUS631
65Mn
82B
55CrSi (SWOSC-V)
Nickel-plated wire, galvanized wire
Copper wire, phosphor copper wire, beryllium copper wire
Square wire, flat wire, semicircular wire
Alloy material wire
Other special specifications steel wire
Wire diameter specifications 0.1~6mm
