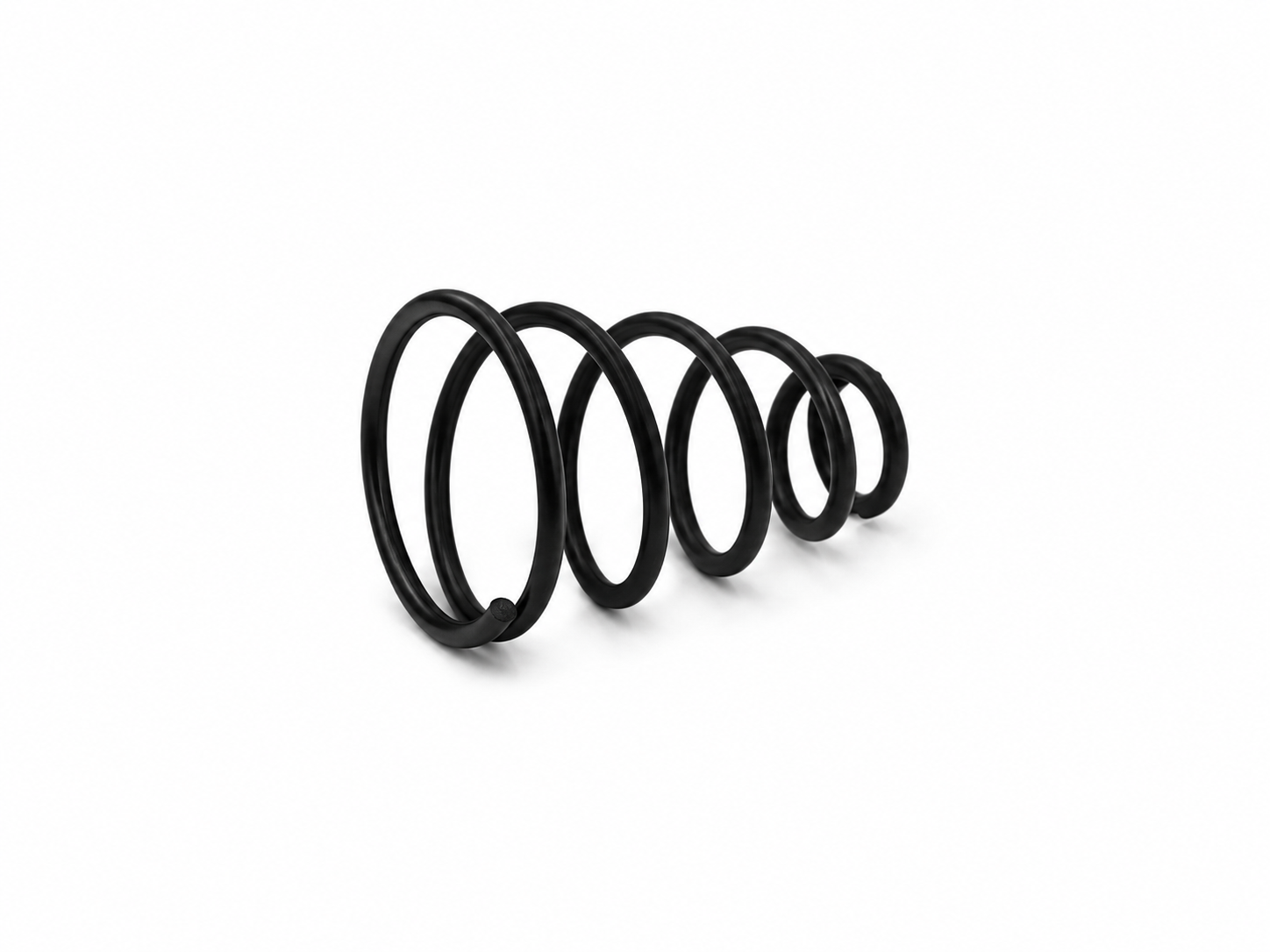

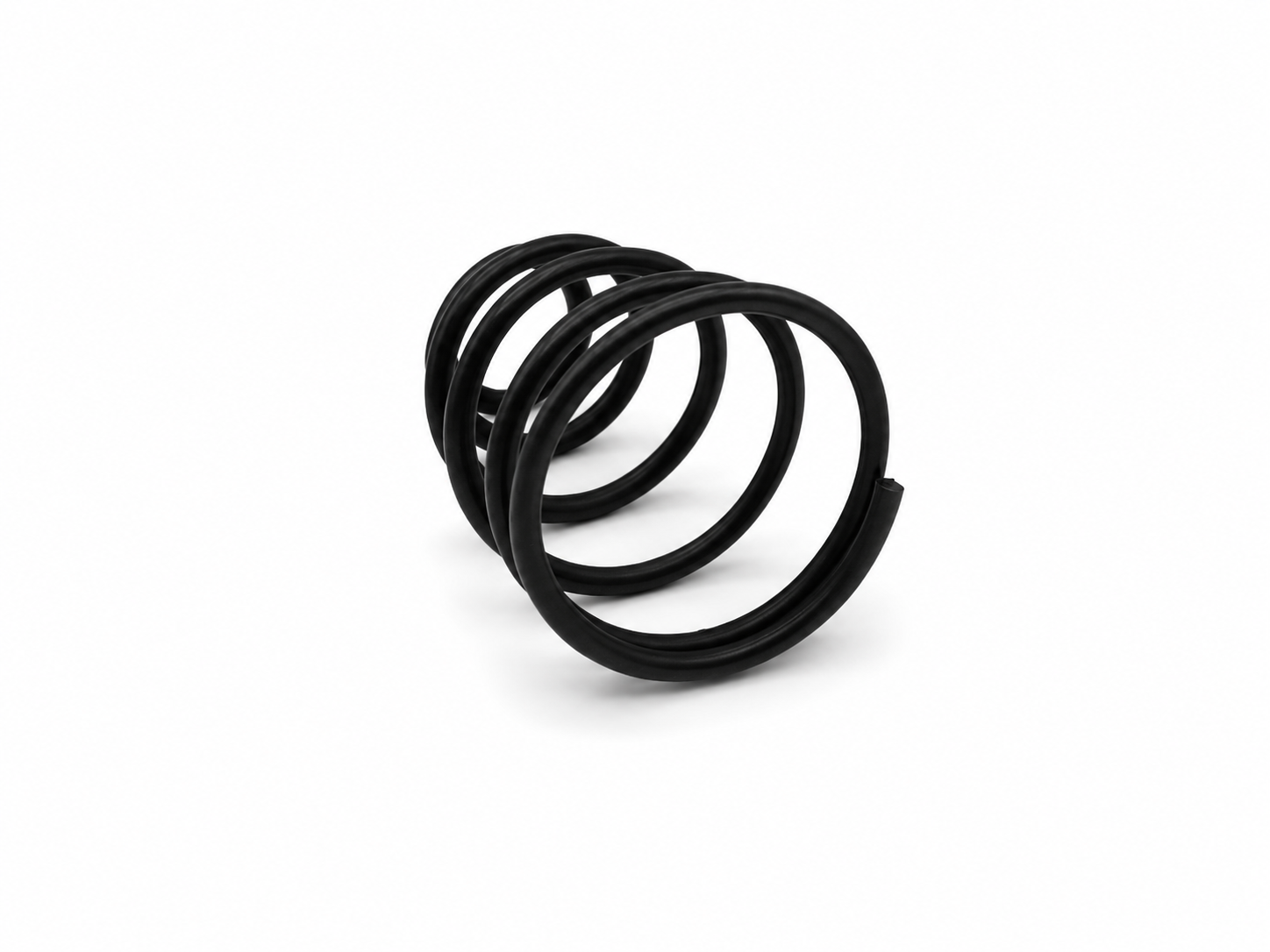

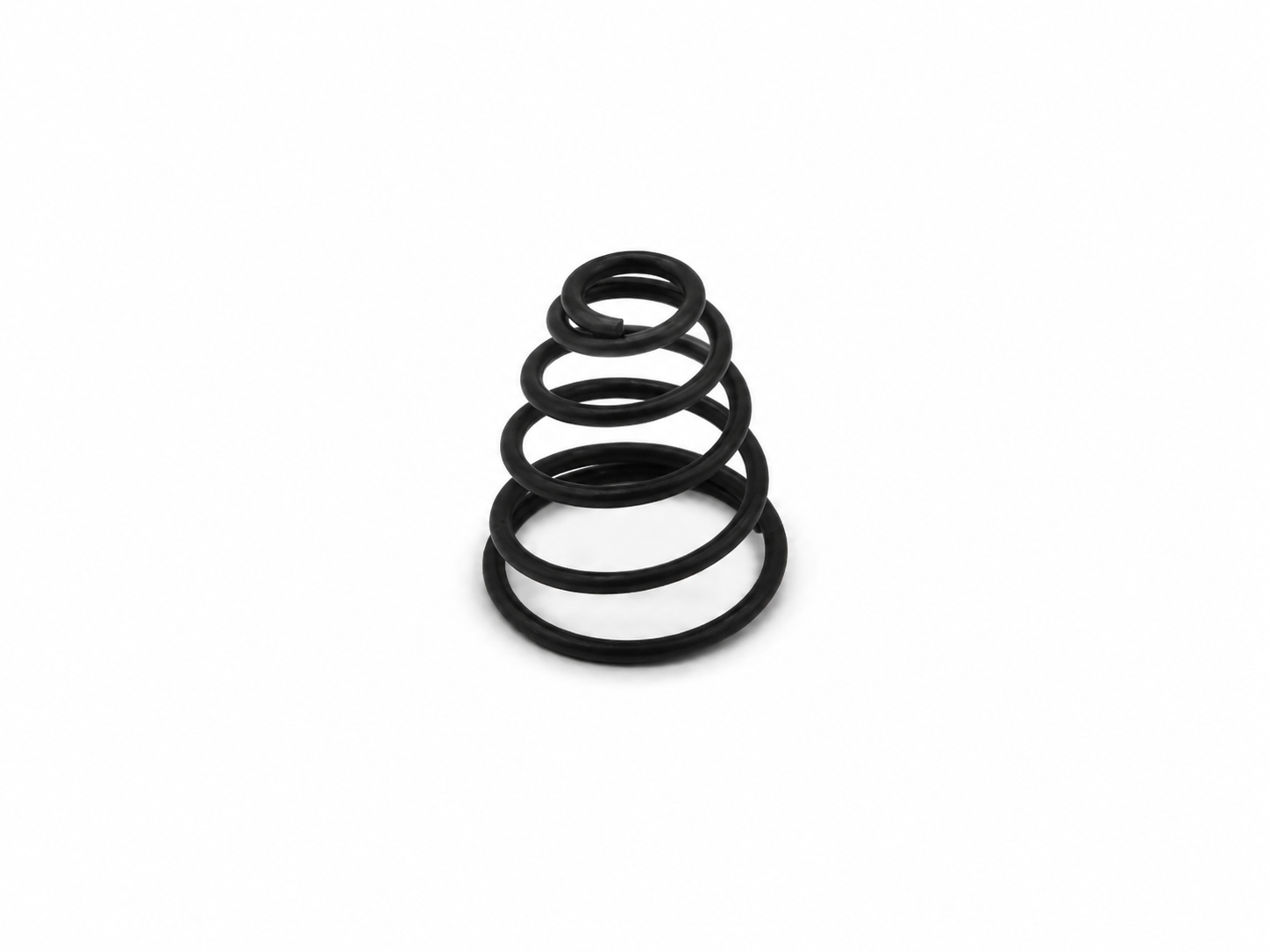

CNC Tapered Miniature Conical Springs Coil Phosphor Bronze
CNC Tapered Miniature Conical Springs Coil Phosphor Bronze
CNC Tapered Miniature Conical Springs Coil Phosphor Bronze
CNC Tapered Miniature Conical Springs Coil Phosphor Bronze
CNC Tapered Miniature Conical Springs Coil Phosphor Bronze
CNC Tapered Miniature Conical Springs Coil Phosphor Bronze
Specifications
Spring Type :
Compression Conical Spring / Tapered Spring
Wire Type :
Round Wire / Flat Wire
Certification :
ISO14001；ISO13485；IATF16949
Surface Treatment :
Zinc Plating / Nickel Plating / Passivation
MOQ :
1 set
Coil Direction :
Customized
Packaging Details :
Standard export packaging
Manufacturing Process :
CNC Spring Coiling
Place of Origin :
China
Model Number :
Conical Springs
Brand Name :
Liyu
Material :
Stainless Steel / Carbon Steel / Alloy Steel
Payment Terms :
L/C,T/T
Custom Service :
OEM & ODM Available
Structure Type :
Full Conical / Partial Conical / Barrel Shape
Product Type :
Conical Spring
Price :
Negotiation
Description
Conical Springs·CUSTOMIZATION

We specialize in manufacturing industrial tapered coil springs for heavy machinery, automation systems, engineering equipment, and mechanical assemblies. Our conical springs are designed to deliver reliable compression force, vibration absorption, and stable operation. Through advanced manufacturing technology and strict inspection procedures, we provide durable spring solutions that meet industrial performance requirements.

The parameters of the conical compression spring

CNC Tapered Miniature Conical Springs Coil Phosphor Bronze

  • d (spring wire diameter): This parameter describes the diameter of the spring wire.
  • S (Maximum Diameter of Mandrel) This parameter describes the maximum diameter of the spring shaft in industrial applications.
  • De (outer diameter of the outsole): the outer diameter of the widest end of the spring.
  • De (outer diameter of small bottom): the outer diameter of the narrowest end of the spring.
  • H (minimum aperture): This is the diameter of the minimum space required for the normal operation of the spring.
  • Lc (compressed length): The theoretical length of the spring when each coil is in contact. For most tower springs, this value is equal to the wire diameter.
  • L0 (Natural Length): The length of the spring in its natural state after being compressed once.
  • R Spring stiffness: This parameter represents the load change per unit deformation of the spring. Unit calculation: 1 DaN/mm = 10 N/mm (Newton/mm), tolerance ±15%.
  • L1 & F1 (length L1 of the spring under load F1): Load F1 and length L1 can be calculated with this formula: F1 = (L0-L1)* R, and then calculate the length L1: L1 = L0-F1/R
Characteristic Parameter

Structural Features

 Cylindrical
Conical
Barrel
Hourglass
Closed at both ends
Two End opening
Shrink both ends
The ends are flat li>Variable pitch
The ends are not flat
Fixed pitch

Surface treatment

 Blackening
Shot Peening
Apply anti-rust oil
Zinc plating
Polishing
Electrolytic polishing
Nickel plating
Dacromet
Teflon spray

Materials

 Carbon spring steel wire SWC
Piano wire SWPB
Stainless steel wire SUS301, SUS302, SUS304, SUS316, SUS631
65Mn
82B
55CrSi (SWOSC-V)
Nickel-plated wire, galvanized wire
Copper wire, phosphor copper wire, beryllium copper wire
Square wire, flat wire, semicircular wire
Alloy material wire
Other special specifications steel wire
Wire diameter specifications 0.1~6mm
