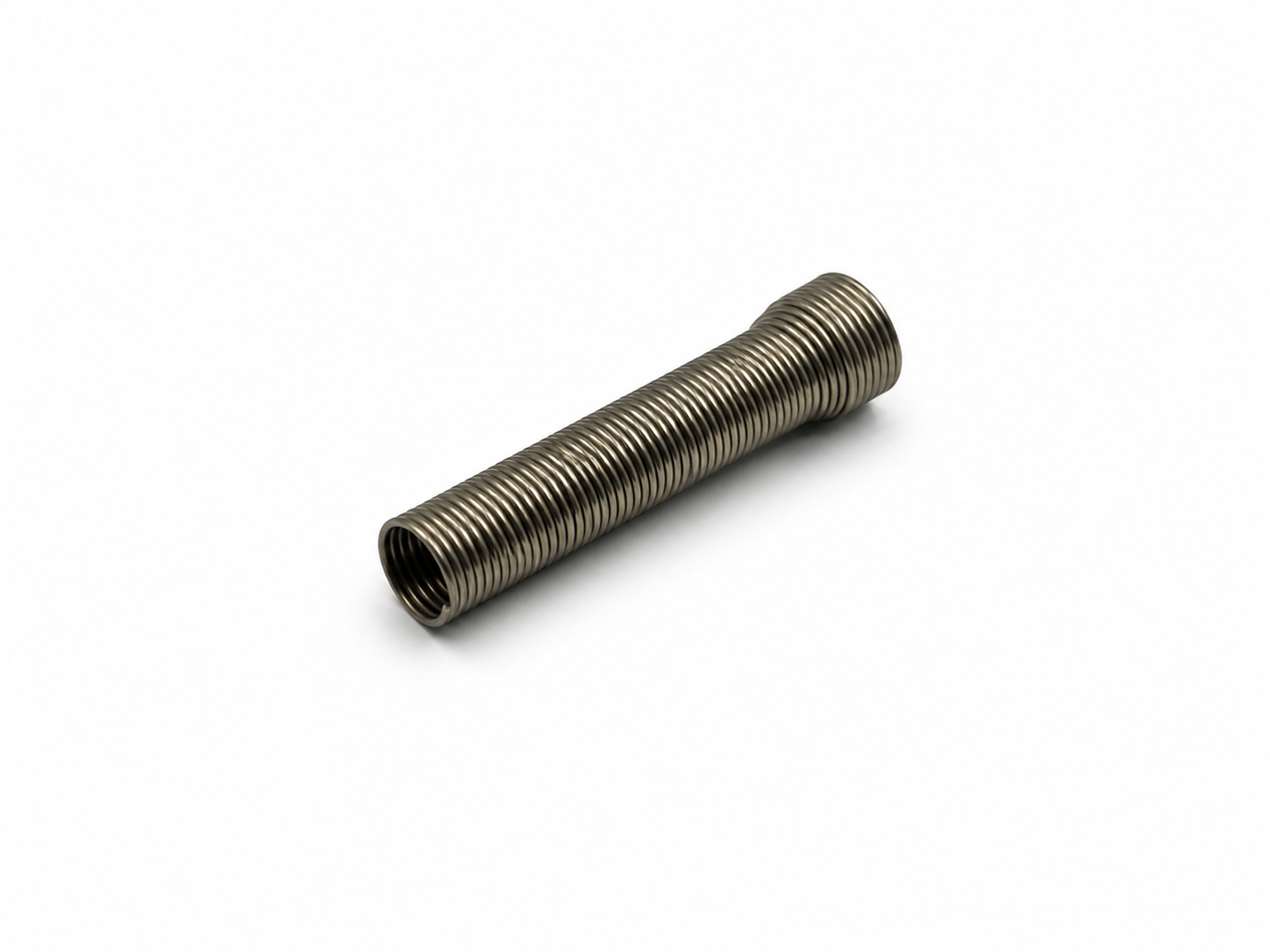

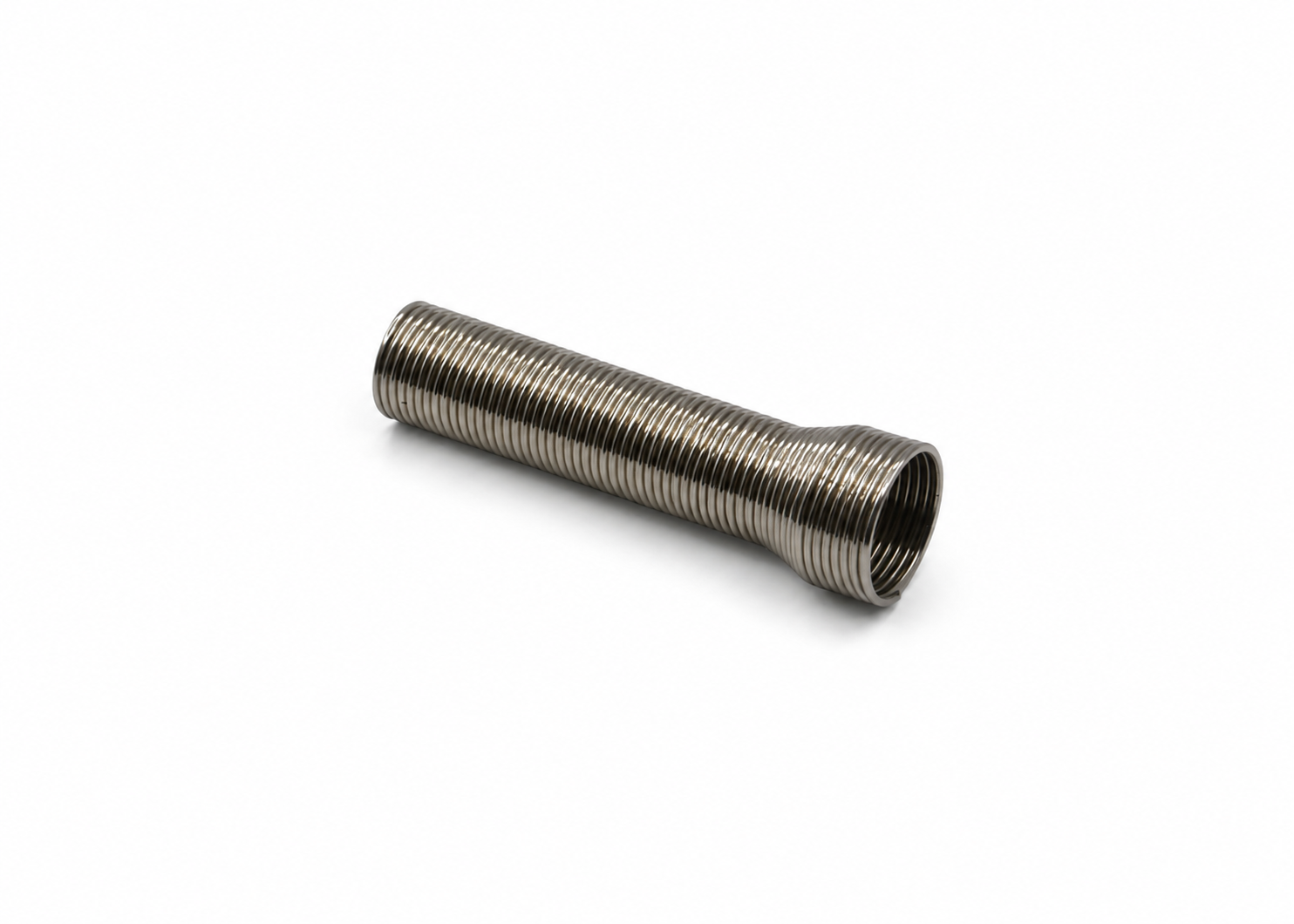

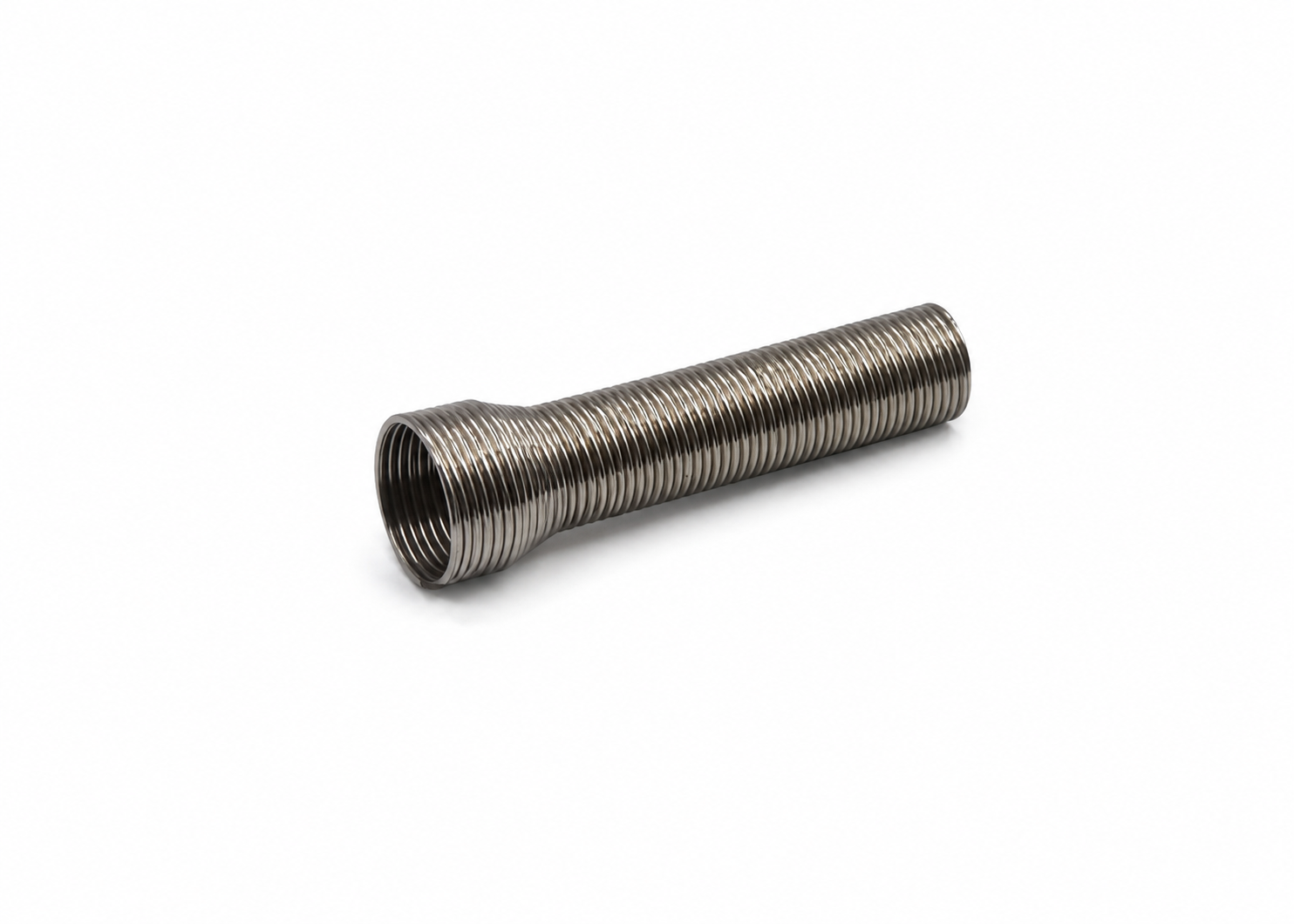

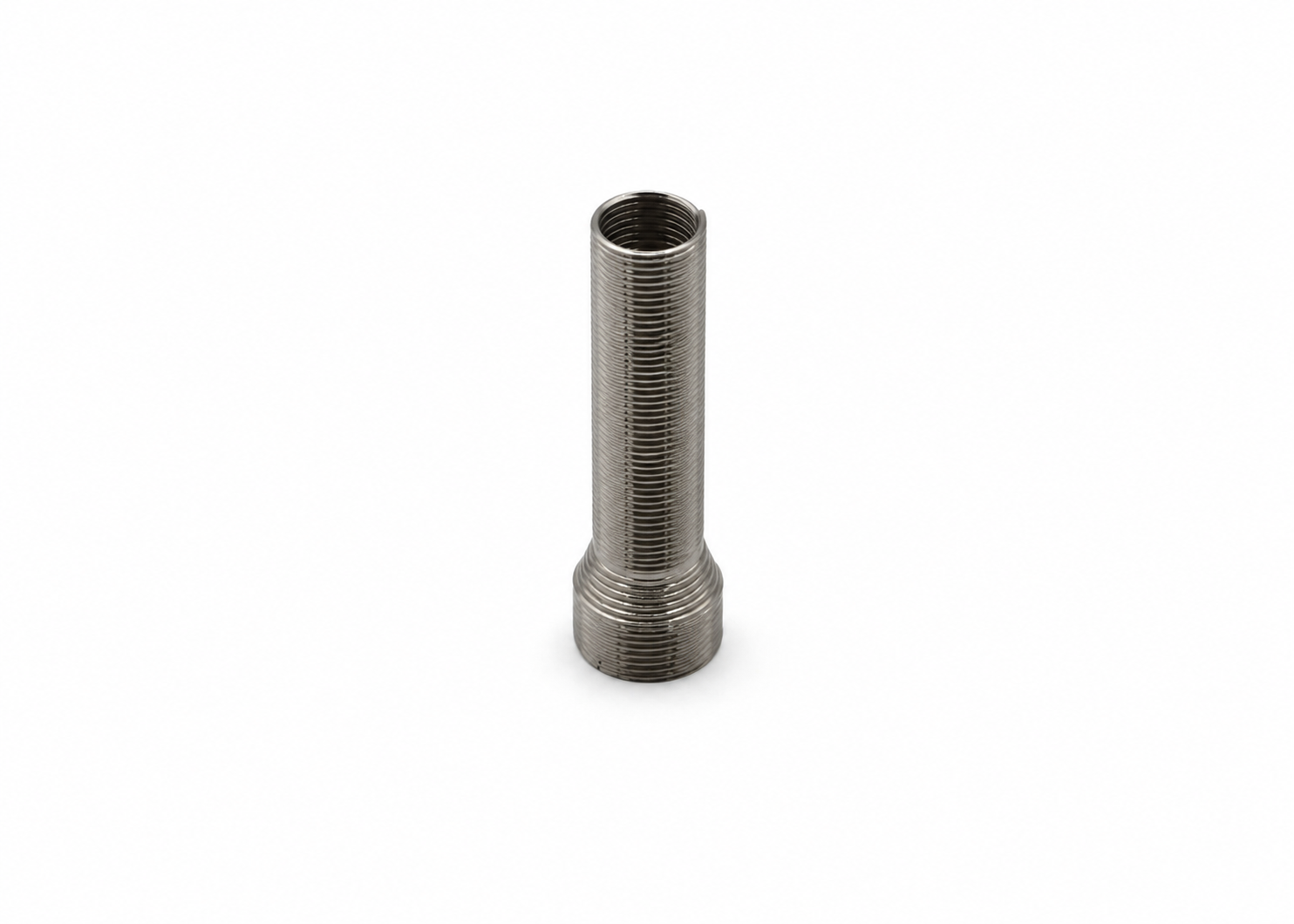

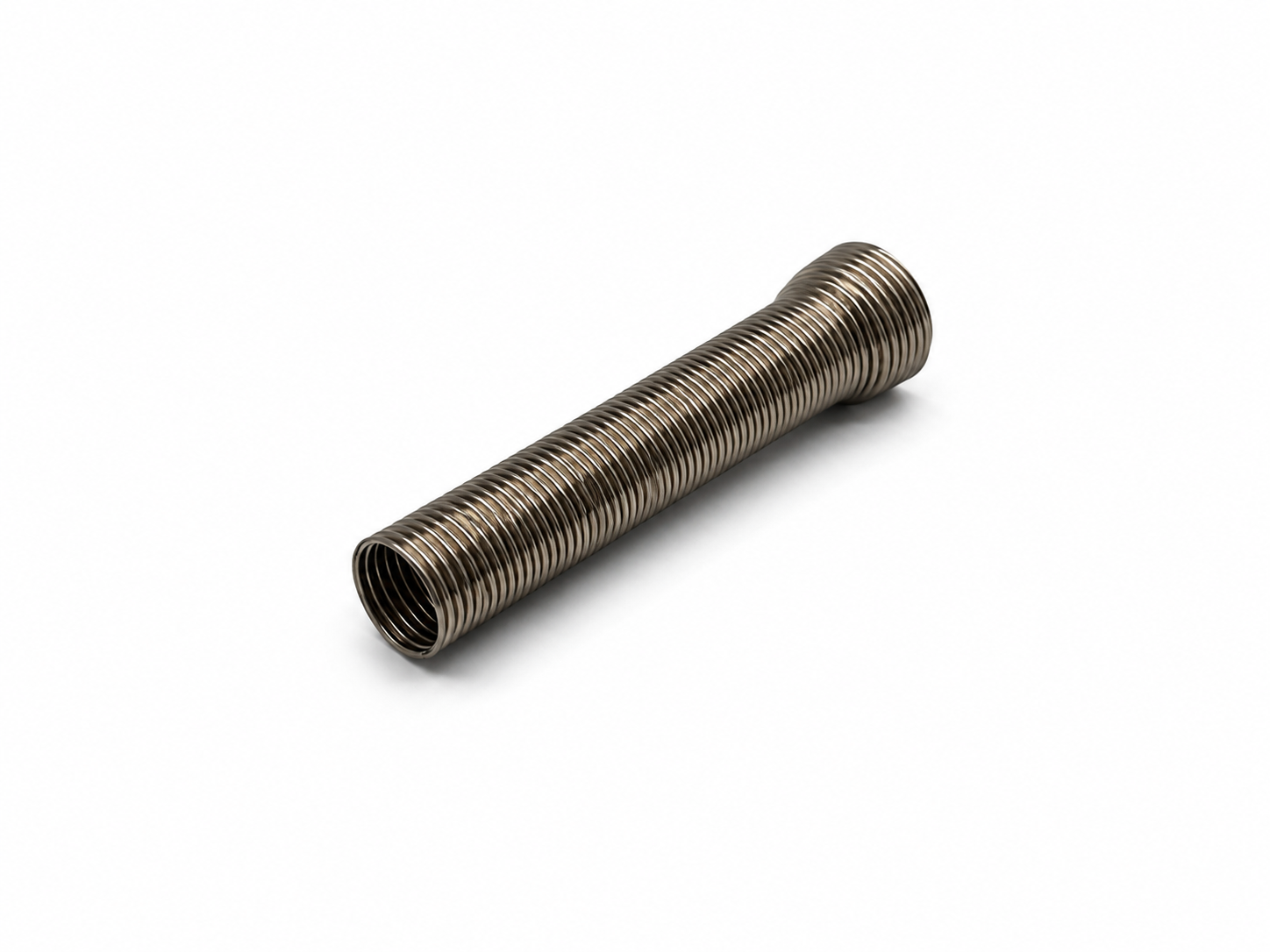

Automotive Hastelloy Conical Tapered Compression Spring Nickel Plating
Automotive Hastelloy Conical Tapered Compression Spring Nickel Plating
Automotive Hastelloy Conical Tapered Compression Spring Nickel Plating
Automotive Hastelloy Conical Tapered Compression Spring Nickel Plating
Automotive Hastelloy Conical Tapered Compression Spring Nickel Plating
Automotive Hastelloy Conical Tapered Compression Spring Nickel Plating
Automotive Hastelloy Conical Tapered Compression Spring Nickel Plating
Automotive Hastelloy Conical Tapered Compression Spring Nickel Plating
Automotive Hastelloy Conical Tapered Compression Spring Nickel Plating
Automotive Hastelloy Conical Tapered Compression Spring Nickel Plating
Specifications
Price :
Negotiation
Manufacturing Process :
CNC Spring Coiling
MOQ :
1 set
Model Number :
Conical Springs
Spring Type :
Compression Conical Spring / Tapered Spring
Coil Direction :
Customized
Structure Type :
Full Conical / Partial Conical / Barrel Shape
Wire Type :
Round Wire / Flat Wire
Certification :
ISO14001；ISO13485；IATF16949
Surface Treatment :
Zinc Plating / Nickel Plating / Passivation
Payment Terms :
L/C,T/T
Packaging Details :
Standard export packaging
Product Type :
Conical Spring
Place of Origin :
China
Material :
Stainless Steel / Carbon Steel / Alloy Steel
Brand Name :
Liyu
Custom Service :
OEM & ODM Available
Description
Conical Springs·CUSTOMIZATION

Heavy duty conical springs are engineered for applications requiring high load capacity and excellent fatigue resistance. The unique tapered design provides progressive spring characteristics and efficient space utilization. Our heavy-duty conical springs are widely used in industrial equipment, automotive suspension systems, hydraulic applications, and specialized mechanical devices.

The parameters of the conical compression spring

Automotive Hastelloy Conical Tapered Compression Spring Nickel Plating

  • d (spring wire diameter): This parameter describes the diameter of the spring wire.
  • S (Maximum Diameter of Mandrel) This parameter describes the maximum diameter of the spring shaft in industrial applications.
  • De (outer diameter of the outsole): the outer diameter of the widest end of the spring.
  • De (outer diameter of small bottom): the outer diameter of the narrowest end of the spring.
  • H (minimum aperture): This is the diameter of the minimum space required for the normal operation of the spring.
  • Lc (compressed length): The theoretical length of the spring when each coil is in contact. For most tower springs, this value is equal to the wire diameter.
  • L0 (Natural Length): The length of the spring in its natural state after being compressed once.
  • R Spring stiffness: This parameter represents the load change per unit deformation of the spring. Unit calculation: 1 DaN/mm = 10 N/mm (Newton/mm), tolerance ±15%.
  • L1 & F1 (length L1 of the spring under load F1): Load F1 and length L1 can be calculated with this formula: F1 = (L0-L1)* R, and then calculate the length L1: L1 = L0-F1/R
Characteristic Parameter

Structural Features

 Cylindrical
Conical
Barrel
Hourglass
Closed at both ends
Two End opening
Shrink both ends
The ends are flat li>Variable pitch
The ends are not flat
Fixed pitch

Surface treatment

 Blackening
Shot Peening
Apply anti-rust oil
Zinc plating
Polishing
Electrolytic polishing
Nickel plating
Dacromet
Teflon spray

Materials

 Carbon spring steel wire SWC
Piano wire SWPB
Stainless steel wire SUS301, SUS302, SUS304, SUS316, SUS631
65Mn
82B
55CrSi (SWOSC-V)
Nickel-plated wire, galvanized wire
Copper wire, phosphor copper wire, beryllium copper wire
Square wire, flat wire, semicircular wire
Alloy material wire
Other special specifications steel wire
Wire diameter specifications 0.1~6mm

Automotive Hastelloy Conical Tapered Compression Spring Nickel Plating

Automotive Hastelloy Conical Tapered Compression Spring Nickel Plating
